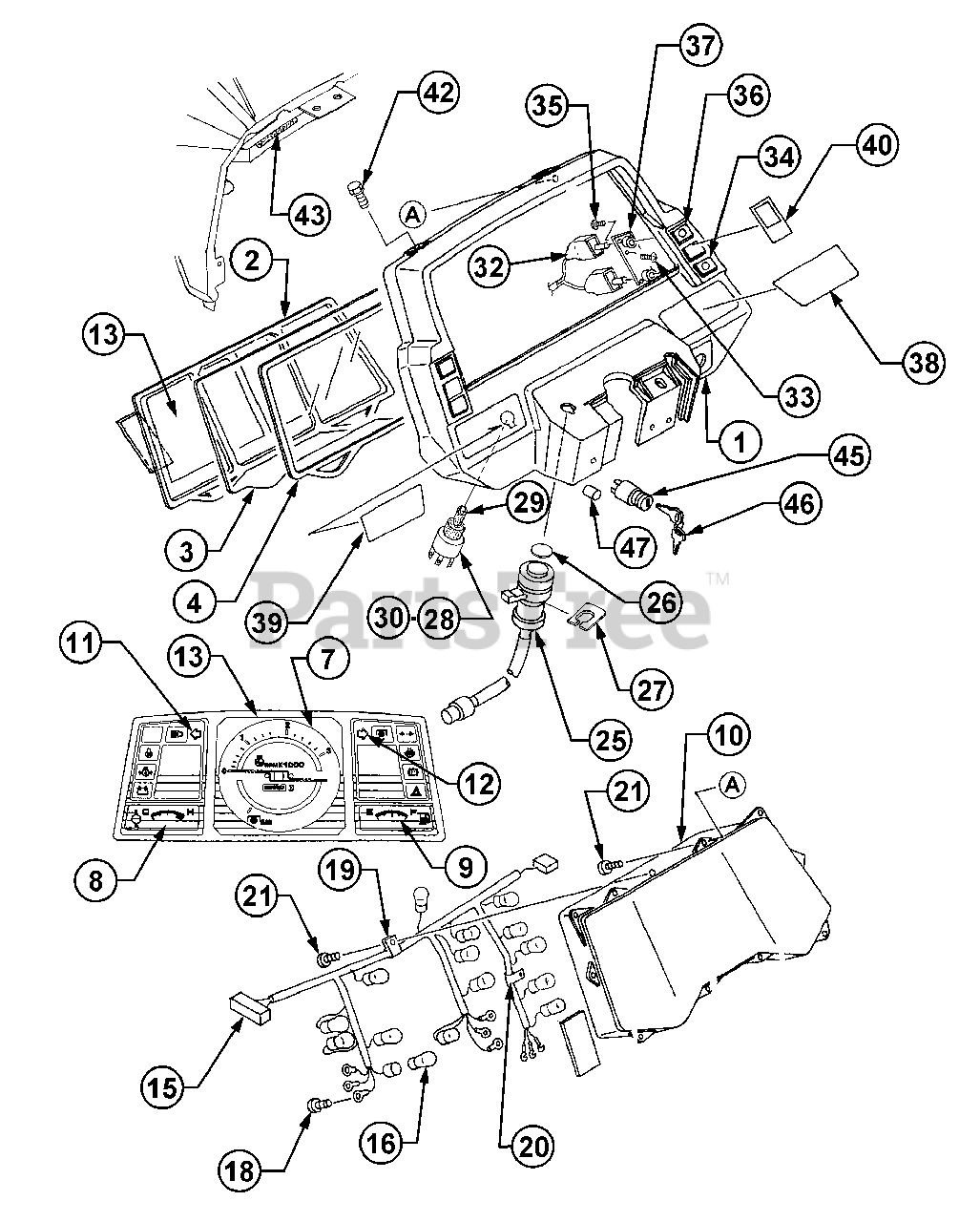

7360 SS (590-603-100) - Cub Cadet Compact Tractor Electrical, Instrument Panel Parts Diagram

Compact Tractor

Electrical, Instrument Panel Parts Diagram

  • Title

Panel Assy

Note: (Incl. items 1-40); Not available as an assembly

$

$

Not available

Cub Cadet MA-19615021000

Meter Panel Assy

Note: (Incl. item(s) 1-21)

$

$

Not available

1

Cub Cadet MA-19615022000

Panel

$

$

Not available

2

Cub Cadet MA-10352838000

Cover, Right

$

$

Not available

3

Cub Cadet MA-10302867000

Glass

$

$

Not available

4

Cub Cadet MA-10302868000

Packing

$

$

Not available

Meter Assy

Note: (Incl. item(s) 7-13)

$

$

Not available

7

Cub Cadet MA-19615023100

Tachometer

$

$

Not available

8

Cub Cadet MA-10352837200

Meter, Temp

$

$

Not available

9

Cub Cadet MA-10352837300

Meter, Fuel

$

$

Not available

10

Case

$

$

Not available

11

Cub Cadet MA-19615023500

Monitor L.H.

$

$

Not available

12

Cub Cadet MA-19615023600

Monitor R.H.

$

$

Not available

13

Meter, Design

$

$

Not available

Cub Cadet MA-19615025000

Harness P

Note: (Incl. item(s) 15 & 16)

$

$

Not available

15

Harness

$

$

Not available

16

Cub Cadet MA-09808120348

Bulb

$

$

Not available

18

Cub Cadet MA-H2420103020

Screw, w/Washer

$

$

Not available

19

Clamp

$

$

Not available

20

Clamp

$

$

Not available

21

Cub Cadet MA-04322104014

Screw

$

$

Not available

25

Cub Cadet MA-19632915000

Switch Assy
(Superseded to MA-19632916000)

$

$

Not available

26

Cub Cadet MA-19632916300

Label, Lamp

$

$

Not available

27

Cub Cadet MA-19615031000

Plate

$

$

Not available

28

Cub Cadet MA-19632918000

Switch, Light

$103.99

$

Usually ships in 3-6 days

0

29

Cub Cadet MA-19615024000

Boots

$

$

Not available

30

Cub Cadet MA-27601207000

Liner

$

$

Not available

32

Cub Cadet MA-19615032000

Switch Assy

$

$

Not available

33

Cub Cadet MA-A2420103006

Screw

$

$

Not available

34

Cub Cadet MA-19615035000

Knob

$

$

Not available

35

Cub Cadet MA-04322104014

Screw, Tapping

$

$

Not available

36

Cub Cadet MA-10352857000

Knob

$

$

Not available

37

Cub Cadet MA-19615033000

Bracket

$

$

Not available

38

Cub Cadet MA-19615026000

Mark S

$

$

Not available

39

Cub Cadet MA-19615027000

Mark M

$

$

Not available

40

Cub Cadet MA-19615029000

Mark R.H.

$

$

Not available

42

Cub Cadet MA-F0500406016

Bolt, Flange

$

$

Not available

43

Cub Cadet MA-35259242800

Seal

$

$

Not available

Cub Cadet MA-10312888000

Starter Sw Assy
(Superseded to MA-19652969000)

Note: (Incl. item(s) 45-47)

$118.99

$

In Stock, Qty 5

0

45

Cub Cadet MA-10312889000

Switch, Starter
(Superseded to MA-19652969000)

$118.99

$

In Stock, Qty 5

0

46

Cub Cadet MA-27800501200

Key, Group
(Superseded to MA-10253507100)

$25.99

$

In Stock, only 3 left!

0

47

Cub Cadet MA-10253509000

Tube

$

$

Not available

?48

Cub Cadet MA-19042849000

Packing, Switch

$

$

Not available
