7360 SS (590-603-100) - Cub Cadet Compact Tractor Final Drive Parts Diagram

Compact Tractor

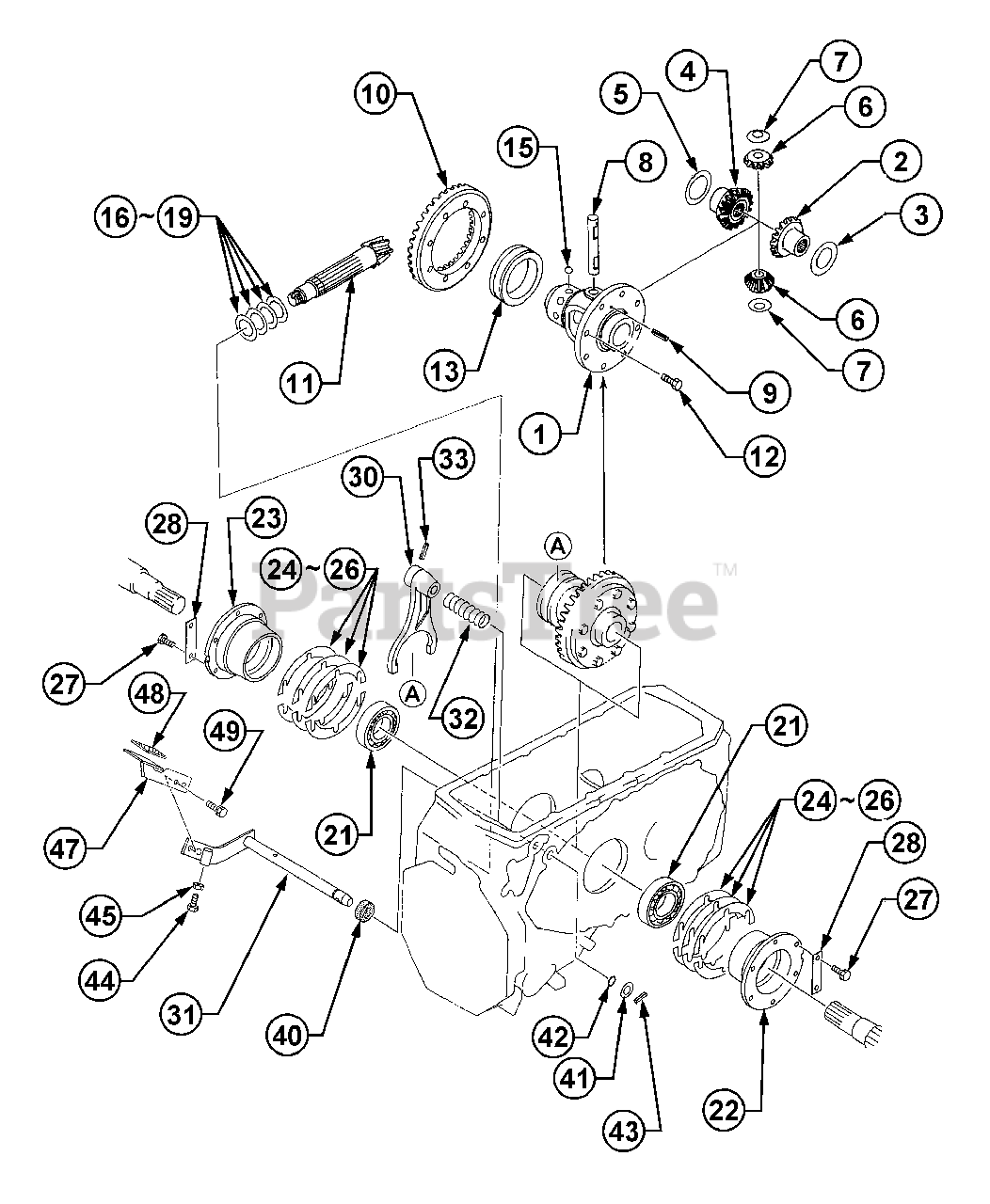

Final Drive Parts Diagram

  • Title

Cub Cadet MA-10311401000

Diff Case Assy

Note: (Incl. item(s) 1-13)

$

$

Not available

1

Cub Cadet MA-68233-00100

Case, Diff

$

$

Not available

2

Cub Cadet MA-11741413000

Gear, Diff Side

$

$

Not available

3

Cub Cadet MA-68665-78900

Washer, Thrust

$

$

Not available

4

Cub Cadet MA-11741414000

Gear, Diff Side

$

$

Not available

5

Cub Cadet MA-67433-00900

Washer, Thrust

$

$

Not available

6

Cub Cadet MA-11741415000

Pinion, Mate

$

$

Not available

7

Cub Cadet MA-68665-79000

Washer, Thrust

$

$

Not available

8

Cub Cadet MA-67433-01100

Shaft

$

$

Not available

9

Cub Cadet MA-05500006050

Pin, Spring

$

$

Not available

Cub Cadet MA-10311402000

6-35 Set

Note: (Incl. item(s) 10 & 11)

$

$

Not available

10

Gear, Ring

$

$

Not available

11

Pinion

$

$

Not available

12

Cub Cadet MA-10311404000

Bolt

$

$

Not available

13

Cub Cadet MA-67533-11000

Hub, Diff Lock

$

$

Not available

15

Cub Cadet MA-08000001190

Ball

$

$

Not available

Cub Cadet MA-11761427000

Shim Set

Note: (Incl. item(s) 16-19)

$

$

Not available

16

Cub Cadet MA-11761427100

Shim, t=0.05

$

$

Not available

17

Cub Cadet MA-11761427200

Shim, t=0.1

$

$

Not available

18

Cub Cadet MA-11761427300

Shim, t=0.25

$

$

Not available

19

Cub Cadet MA-11761427400

Shim, t=0.8

$

$

Not available

21

Cub Cadet MA-10311417000

Bearing

$

$

Not available

22

Cub Cadet MA-10311418000

Holder L.H.

$

$

Not available

23

Cub Cadet MA-10311411000

Holder R.H.

$

$

Not available

24

Cub Cadet MA-10211435000

Shim, t=0.2

$

$

Not available

25

Cub Cadet MA-10211436000

Shim, t=0.3

$

$

Not available

26

Cub Cadet MA-10211437000

Shim, t=0.5

$

$

Not available

27

Cub Cadet MA-A0500108025

Bolt

$

$

Not available

28

Cub Cadet MA-10211433001

Plate, Lock

$

$

Not available

30

Cub Cadet MA-10311426000

Fork Assy

$

$

Not available

31

Cub Cadet MA-10371428AG0

Shaft, Diff Lock

$

$

Not available

32

Cub Cadet MA-67433-00400

Spring

$

$

Not available

33

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

40

Cub Cadet MA-08401020358

Seal, Oil

$

$

Not available

41

Cub Cadet MA-14612206000

Washer

$

$

Not available

42

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

43

Cub Cadet MA-05500008028

Pin, Spring

$

$

Not available

44

Cub Cadet MA-A0500110025

Bolt

$

$

Not available

45

Cub Cadet MA-A3010110003

Nut

$

$

Not available

47

Cub Cadet MA-10371429AG0

Pedal

$

$

Not available

48

Cub Cadet MA-10320228000

Cover, Pedal

$

$

Not available

49

Cub Cadet MA-F1550110020

Bolt, w/Washer

$

$

Not available
