7360 SS (590-603-100) - Cub Cadet Compact Tractor Fuel Filter Parts Diagram

Compact Tractor

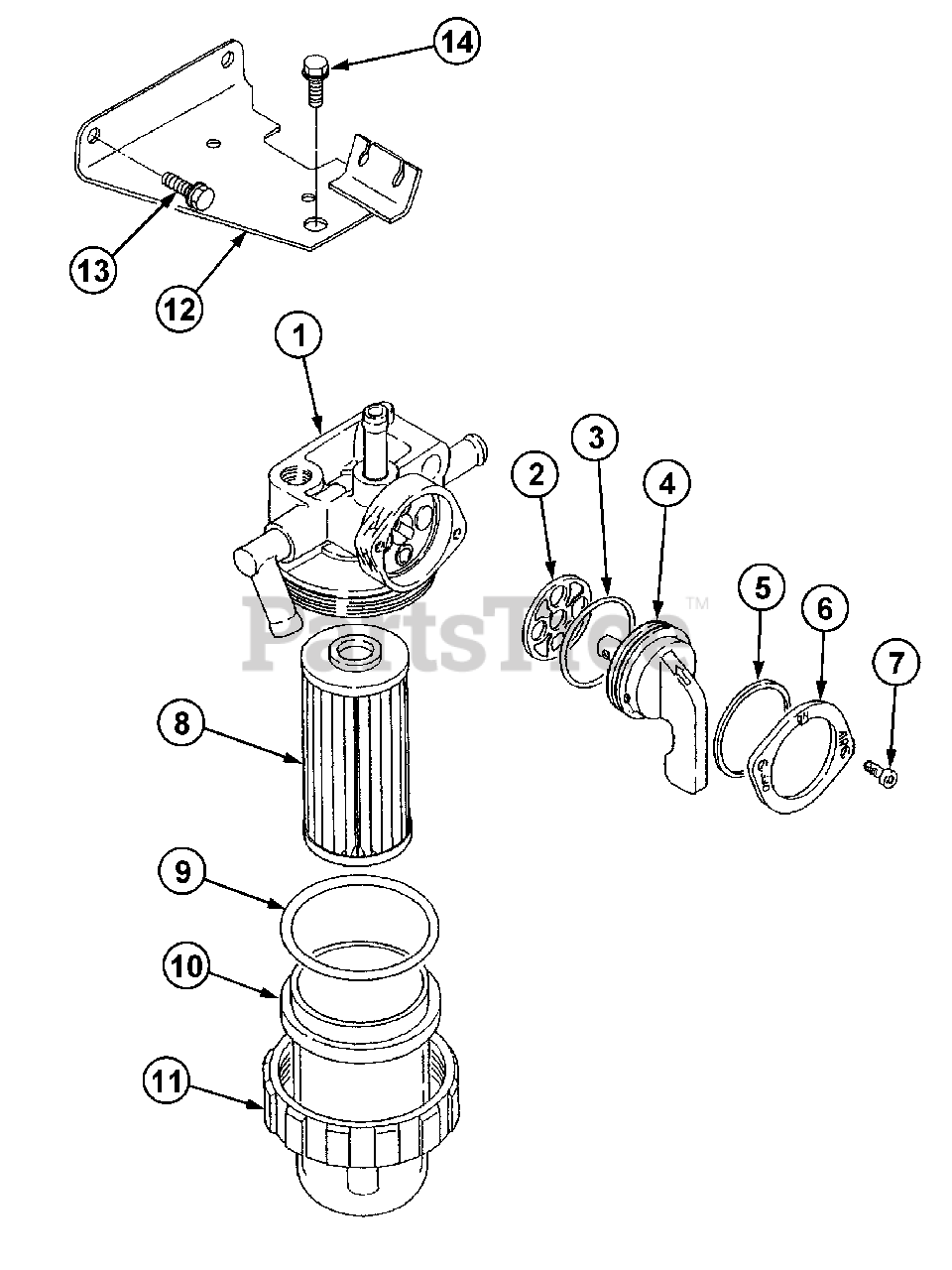

Fuel Filter Parts Diagram

  • Title

Cub Cadet MA-MM438739

Filter Assy

Note: (Incl. item(s) 1-11)

$

$

Not available

1

Cub Cadet MA-MM438743

Body Sub Assy

$

$

Not available

2

Cub Cadet MA-MM438748

Packing, Valve

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-MM409866

O-Ring, Valve

$

$

Not available

4

Cub Cadet MA-MM438747

Lever

$

$

Not available

5

Cub Cadet MA-MM409864

Washer, Wave

$

$

Not available

6

Cub Cadet MA-MM409865

Plate, Lever

$

$

Not available

7

Cub Cadet MA-A2420103008

Screw

$

$

Not available

8

Cub Cadet MA-MM320886

Element
(Superseded to MA-MM32088601)

$20.99

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-MM409869

O-Ring, Cup

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet MA-MM320881

Cup, Filter

$

$

Not available

11

Cub Cadet MA-MM409868

Nut, Ring

$

$

Not available

12

Cub Cadet MA-31A62-21100

Bracket, Filter

$

$

Not available

13

Bolt, w/Washer

$

$

Not available

14

Bolt, w/Washer

$

$

Not available
