7360 SS (590-603-100) - Cub Cadet Compact Tractor Grille Parts Diagram

Compact Tractor

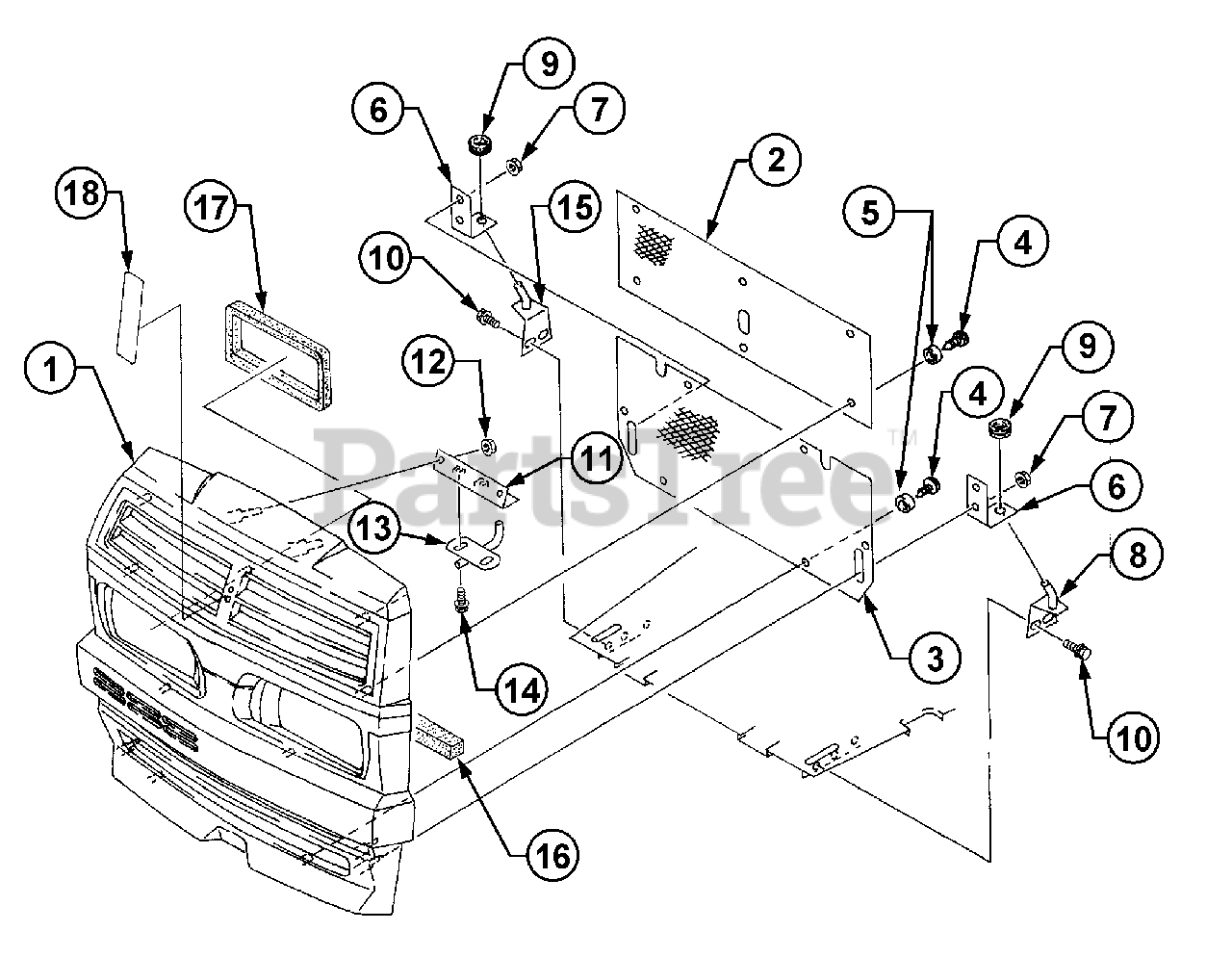

Grille Parts Diagram

  • Title

1

Cub Cadet MA-19612632000

Grille

$

$

Not available

2

Cub Cadet MA-10372635AG0

Screen Grille A

$

$

Not available

3

Cub Cadet MA-10372636AG0

Screen Grille B

$

$

Not available

4

Cub Cadet MA-10212626000

Screw, Tapping

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-11802482001

Washer

$

$

Not available

6

Cub Cadet MA-10352636AG0

Hook

$

$

Not available

7

Cub Cadet MA-F3000105000

Nut, Flange

$

$

Not available

8

Cub Cadet MA-10352637000

Plate L.H., Grille

$

$

Not available

9

Cub Cadet MA-11740217001

Grommet

$

$

Not available

10

Cub Cadet MA-H1440106016

Bolt, w/Washer

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet MA-10352638000

Bracket, Upper

$

$

Not available

12

Cub Cadet MA-F3000106000

Nut, Flange

$

$

Not available

13

Cub Cadet MA-10352639000

Hook

$

$

Not available

14

Cub Cadet MA-H1440106016

Bolt

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet MA-10352641000

Plate R.H., Grille

$

$

Not available

16

Cub Cadet MA-10372654000

Cushion

$

$

Not available

17

Cub Cadet MA-19042635000

Cushion

$

$

Not available

18

Cub Cadet MA-19612635000

Mark, Grille

$

$

Not available
