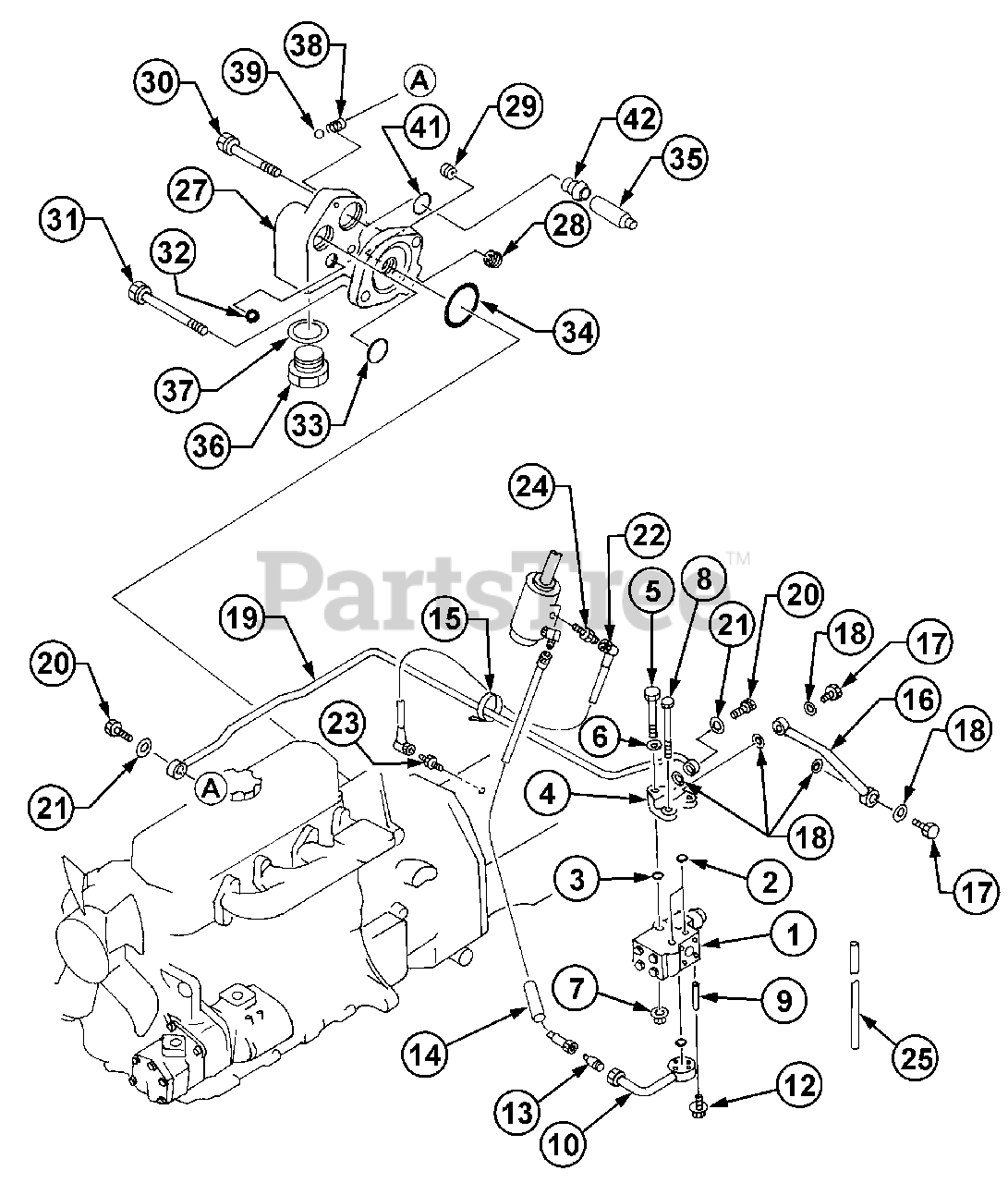

7360 SS (590-603-100) - Cub Cadet Compact Tractor Hydraulic Line & Flow Valve Parts Diagram

Compact Tractor

Hydraulic Line & Flow Valve Parts Diagram

  • Title

1

Cub Cadet MA-10312545AG0

Flow Divider Valve

$

$

Not available

2

Cub Cadet MA-08300100140

O-Ring

$

$

Not available

3

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

4

Cub Cadet MA-11742527AG0

Block, Valve

$

$

Not available

5

Cub Cadet MA-A0540108080

Bolt

$

$

Not available

6

Cub Cadet MA-03500130815

Washer

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-F3010108000

Nut, Flange

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet MA-14852773000

Bolt

$

$

Not available

9

Cub Cadet MA-10312574000

Collar

$

$

Not available

10

Cub Cadet MA-10372547AG0

Pipe D Assy

$

$

Not available

12

Cub Cadet MA-F1440106035

Bolt

$

$

Not available

13

Cub Cadet MA-06221115170

Body (Union)

$

$

Not available

14

Cub Cadet MA-19612501000

Hose P

$

$

Not available

15

Cub Cadet MA-00511032070

Band

$

$

Not available

16

Cub Cadet MA-10372564AG0

Pipe S

$

$

Not available

17

Cub Cadet MA-67775-01500

Bolt

$

$

Not available

18

Cub Cadet MA-08331001600

Washer, Seal
(Superseded to MA-08331001601)

$

$

Not available

19

Cub Cadet MA-10372536AG1

Pipe C

$

$

Not available

20

Cub Cadet MA-67775-01500

Bolt

$

$

Not available

21

Cub Cadet MA-08331001600

Washer, Seal
(Superseded to MA-08331001601)

$

$

Not available

22

Cub Cadet MA-10372532000

Hose Return

$

$

Not available

23

Cub Cadet MA-06301117170

Adapter

$

$

Not available

24

Cub Cadet MA-06311117170

Adapter

$

$

Not available

25

Cub Cadet MA-09804100021

Tube

$

$

Not available

27

Cub Cadet MA-19612533AG0

Block

$

$

Not available

28

Cub Cadet MA-A6010A01300

Plug

$2.99

$

In Stock, only 1 left!

0

29

Cub Cadet MA-A6010A01700

Plug, Taper

$

$

Not available

30

Cub Cadet MA-F1540108030

Bolt

$

$

Not available

31

Cub Cadet MA-F1540108045

Bolt

$

$

Not available

32

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

33

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

34

Cub Cadet MA-08300500380

O-Ring

$

$

Not available

35

Cub Cadet MA-19612534000

Poppet

$

$

Not available

36

Cub Cadet MA-10312539000

Plug

$

$

Not available

37

Cub Cadet MA-08331002000

Washer, Seal

$

$

Not available

38

Cub Cadet MA-11501707000

Spring

$

$

Not available

39

Cub Cadet MA-08000001200

Ball

$

$

Not available

41

Cub Cadet MA-08300100220

O-ring

$

$

Not available

42

Cub Cadet MA-19612536000

Sleeve

$

$

Not available
