7360 SS (590-603-100) - Cub Cadet Compact Tractor Hydraulic Line & Pump Parts Diagram

Compact Tractor

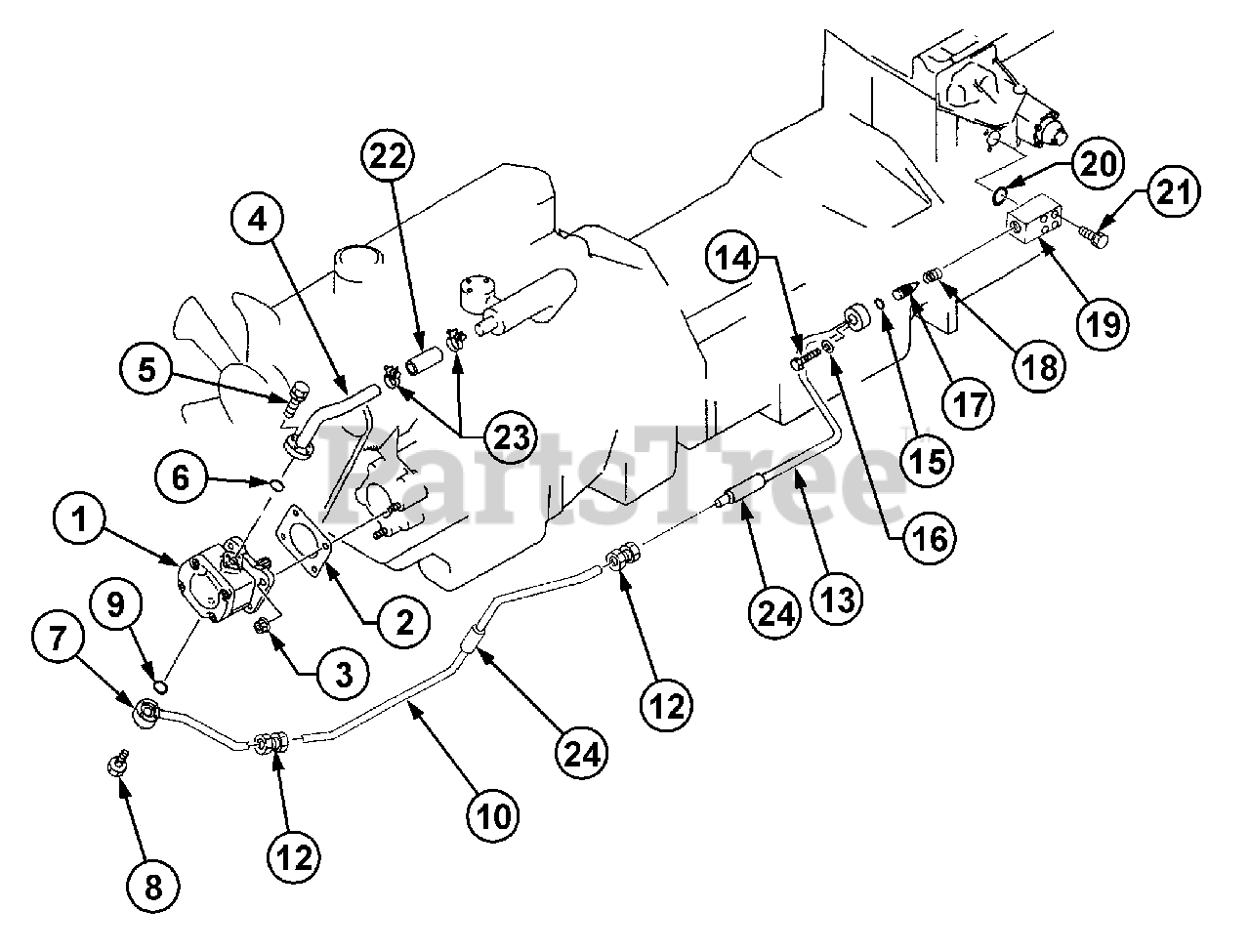

Hydraulic Line & Pump Parts Diagram

  • Title

1

Cub Cadet MA-35151801002

Pump

$892.99

$

In Stock, only 1 left!

0

2

Cub Cadet MA-67700-20101

Packing

$5.99

$

In Stock, Qty 5

0

3

Cub Cadet MA-F3010108000

Nut, Flange

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet MA-10372516AG0

Pipe Suction P

$

$

Not available

5

Cub Cadet MA-F1440106020

Bolt

$

$

Not available

6

Cub Cadet MA-08300100200

O-Ring

$

$

Not available

7

Cub Cadet MA-10372554AG1

Pipe E Assy

$

$

Not available

8

Cub Cadet MA-F1440106030

Bolt, w/Washer

$

$

Not available

9

Cub Cadet MA-08301100180

O-Ring

$

$

Not available

10

Cub Cadet MA-10372556AG2

Pipe F

$

$

Not available

12

Cub Cadet MA-06201112001

Union

$

$

Not available

13

Cub Cadet MA-10372545AG3

Pipe P/S B Assy

$

$

Not available

14

Cub Cadet MA-19812468000

Bolt, Eye

$

$

Not available

15

Cub Cadet MA-08301100220

O-Ring

$

$

Not available

16

Cub Cadet MA-08331001700

Washer, Seal

$

$

Not available

17

Cub Cadet MA-10362457000

Filter

$

$

Not available

18

Cub Cadet MA-10362458000

Spring

$

$

Not available

19

Cub Cadet MA-10372541000

Block

$

$

Not available

20

Cub Cadet MA-08300100140

O-Ring

$

$

Not available

21

Cub Cadet MA-F1440106050

Bolt, w/Washer

$

$

Not available

22

Cub Cadet MA-10372517000

Hose

$

$

Not available

23

Cub Cadet MA-00501100280

Clamp

$

$

Not available

24

Cub Cadet MA-11352474000

Pipe

$

$

Not available
