7360 SS (590-603-100) - Cub Cadet Compact Tractor Injection Pump Parts Diagram

Compact Tractor

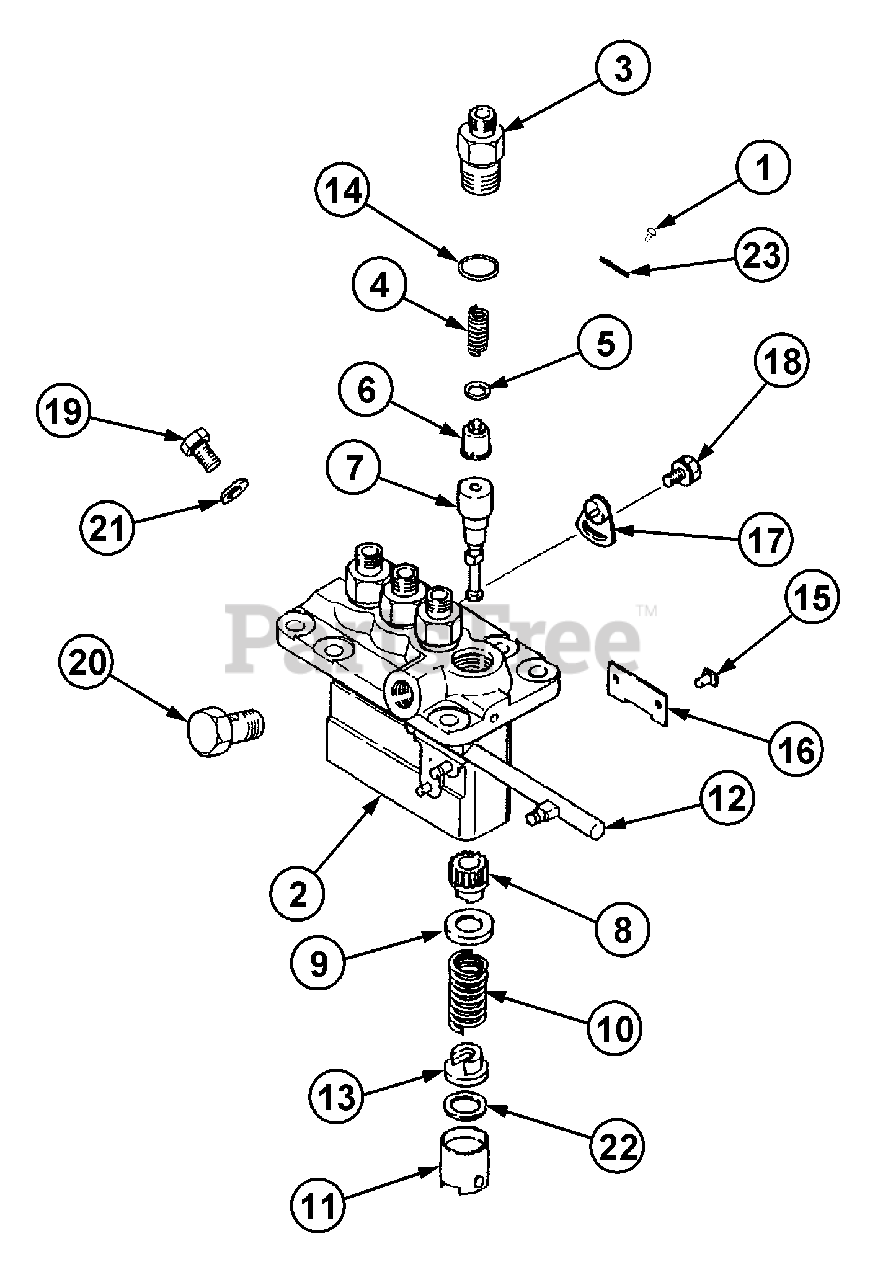

Injection Pump Parts Diagram

  • Title

Cub Cadet MA-31A65-21040

Pump Assy, Fuel

Note: (Incl. item(s) 1-23)

$

$

Not available

1

Rivet

$

$

Not available

2

Cub Cadet MA-09011-05070

Housing Sub Assy

$

$

Not available

3

Cub Cadet MA-09013-10520

Holder, Delivery

$

$

Not available

4

Cub Cadet MA-09013-60640

Spring, Delivery

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet MA-09013-70130

Gasket, Delivery

$

$

Not available

6

Cub Cadet MA-09014-02610

Valve Sub Assy

$

$

Not available

7

Cub Cadet MA-09015-05450

Element Sub Assy

$

$

Not available

8

Cub Cadet MA-09016-10210

Sleeve, Control

$32.99

$

In Stock, only 3 left!

0

9

Cub Cadet MA-09016-30082

Seat, Spring Upper

$

$

Not available

10

Cub Cadet MA-09016-40170

Spring, Plunger

$

$

Not available

11

Cub Cadet MA-09017-00170

Tappet Sub Assy

$

$

Not available

12

Cub Cadet MA-09021-00470

Rack Assy, Control

$

$

Not available

13

Cub Cadet MA-09030-10060

Seat, Spring Lower

$

$

Not available

14

Cub Cadet MA-90802-20150

O-Ring

$

$

Not available

15

Cub Cadet MA-09018-30050

Pin, Tappet Guide

$

$

Not available

16

Plate

$

$

Not available

17

Cub Cadet MA-09006-80020

Plate, Adjusting

$

$

Not available

18

Cub Cadet MA-94904-80800

Bolt, Washer

$

$

Not available

19

Cub Cadet MA-09024-40180

Screw, Air Bleeder

$

$

Not available

20

Screw, Hollow

$

$

Not available

21

Cub Cadet MA-94901-81020

Washer, Pipe Union

$

$

Not available

22

Cub Cadet MA-09031-100010

Plate, Tappet Shim, t=0.6

$

$

Currently unavailable

Cub Cadet MA-MM500309

Plate, Tappet Shim, t=0.2

$

$

Not available

Cub Cadet MA-09031-10120

Plate, Tappet Shim, t=0.3

$

$

Not available

Cub Cadet MA-09031-10130

Plate, Tappet Shim, t=0.4

$

$

Not available

Cub Cadet MA-09031-10140

Plate, Tappet Shim, t=0.5

$

$

Not available

Cub Cadet MA-MM500314

Plate, Tappet Shim, t=0.25

$

$

Not available

Cub Cadet MA-MM500315

Plate, Tappet Shim, t=0.35

$

$

Not available

Cub Cadet MA-MM501246

Plate, Tappet Shim, t=0.45

$

$

Not available

Cub Cadet MA-MM501364

Plate, Tappet Shim, t=0.55

$

$

Not available

Cub Cadet MA-09031-10310

Plate, Tappet Shim, t=0.65

$

$

Not available

23

Plate, Name

$

$

Not available
