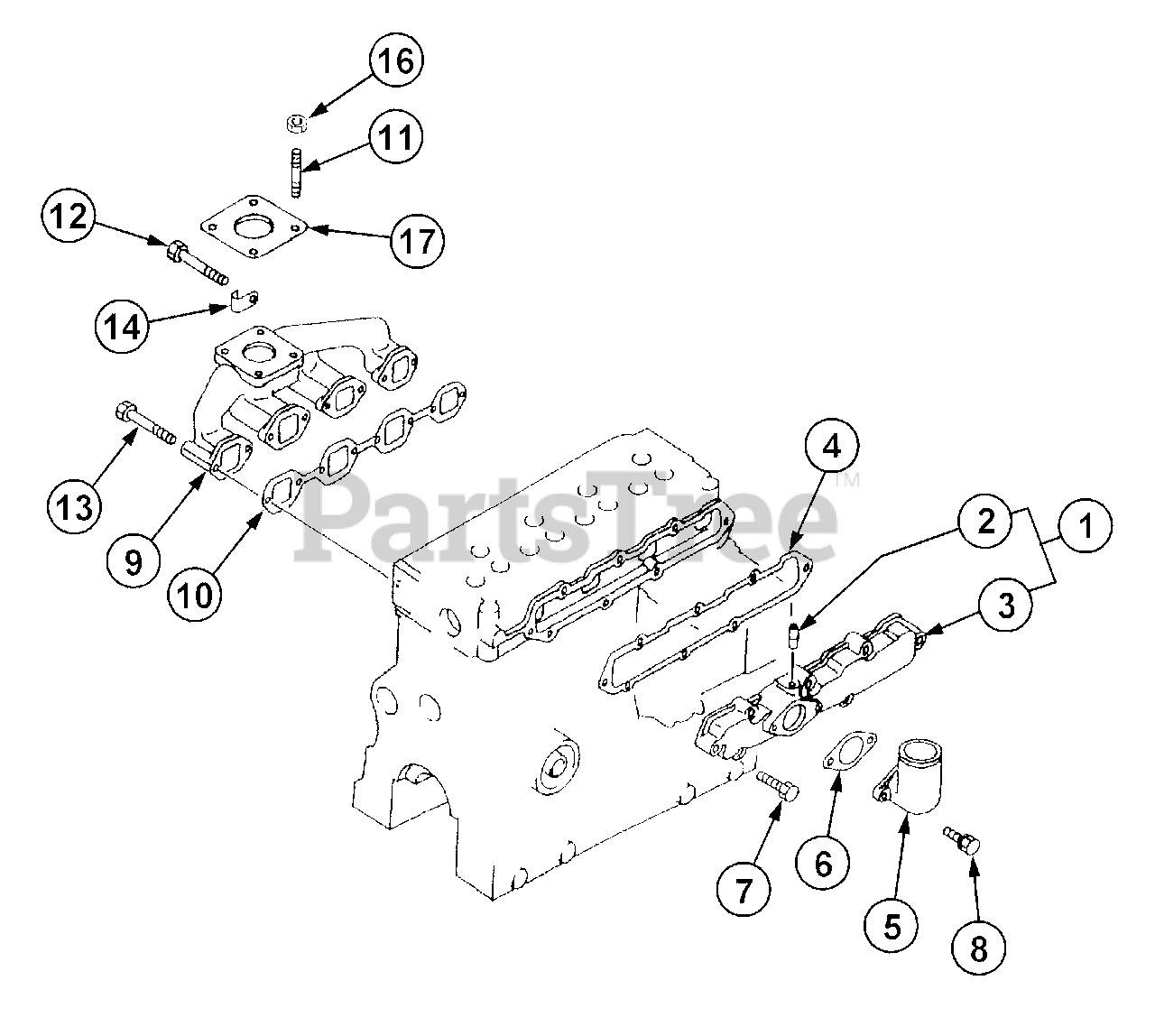

7360 SS (590-603-100) - Cub Cadet Compact Tractor Inlet & Exhaust Manifold Parts Diagram

Compact Tractor

Inlet & Exhaust Manifold Parts Diagram

  • Title

1

Cub Cadet MA-31A30-20010

Cover Assy, Inlet

$

$

Not available

2

Pipe

$

$

Not available

3

Cover, Inlet

$

$

Not available

4

Cub Cadet MA-31A30-10902

Gasket, Cover

$

$

Not available

5

Cub Cadet MA-31A30-00300

Pipe, Inlet

$

$

Not available

6

Cub Cadet MA-31A30-00801

Gasket, Pipe

$

$

Not available

7

Cub Cadet MA-F1540108035

Bolt, w/Washer

$

$

Not available

8

Cub Cadet MA-F1540108020

Bolt, w/Washer

$

$

Not available

9

Cub Cadet MA-31A32-00402

Manifold, Exhaust

$

$

Not available

10

Cub Cadet MA-31A32-01200

Gasket, Manifold

$

$

Not available

11

Cub Cadet MA-MF401936

Stud
(Superseded to MA-F1435-08025)

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet MA-F1035-08020

Bolt

$

$

Not available

13

Cub Cadet MA-F1035-08055

Bolt

$

$

Not available

14

Cub Cadet MA-31A32-02100

Clamp

$

$

Not available

16

Cub Cadet MA-MM436867

Nut

$

$

Not available

17

Cub Cadet MA-30A30-00200

Gasket, Muffler

$8.99

$

In Stock, only 2 left!

0
