7360 SS (590-603-100) - Cub Cadet Compact Tractor Main Moving Parts Parts Diagram

Compact Tractor

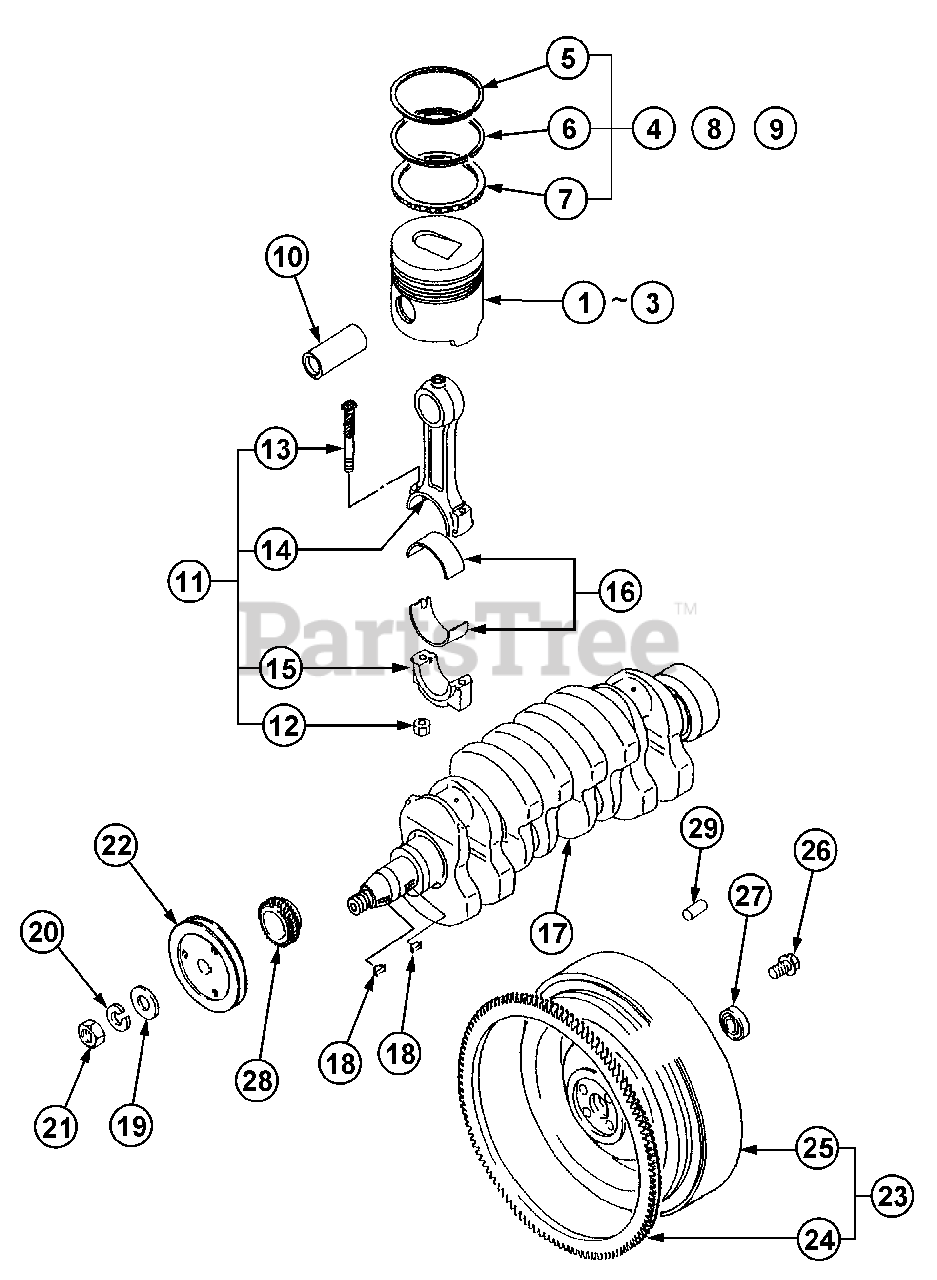

Main Moving Parts Parts Diagram

  • Title

1

Cub Cadet MA-31A17-11100

Piston (STD)

$321.99

$

Usually ships in 3-6 days

0

2

Cub Cadet MA-31A17-11200

Piston (O.S. 0.25)
(Superseded to MA-31A17-11200P)

$281.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-31A17-11300

Piston (O.S. 0.50)

$

$

Not available

4

Cub Cadet MA-MM433921

Ring Seat, Piston (Std)
(Superseded to MA-MM437295)

$160.99

$

Usually ships in 3-6 days

0

5

Ring, Piston

$

$

Not available

6

Ring, Piston

$

$

Not available

7

Ring

$

$

Not available

8

Cub Cadet MA-MM437404

Ring Set, Piston (O.S. 0.25)

$177.99

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-MM437405

Ring Set, Piston (O.S. 0.50)

$

$

Not available

10

Cub Cadet MA-31A17-10600

Pin, Piston
(Superseded to MA-31A17-10602)

$

$

Not available

Cub Cadet MA-31A17-10601

Pin, Piston
(Superseded to MA-31A17-10602)

Note: Replaces MA-31A17-10600

$

$

Not available

11

Cub Cadet MA-31A19-01021

Con Rod Assy
(Superseded to MA-31A19-01023)

$364.99

$

Usually ships in 3-6 days

0

12

Cub Cadet MA-MD006704

Nut, Con Rod

$

$

Not available

13

Cub Cadet MA-MD021105

Bolt, Con Rod

$

$

Not available

14

Connecting Rod

$

$

Not available

15

Cap, Con Rod

$

$

Not available

16

Cub Cadet MA-MM437305

Metal Set, Con (STD)
(Superseded to MA-30A19-00040)

$68.99

$

In Stock, only 1 left!

0

Cub Cadet MA-30A19-00010

Metal Set, Con (U.S. 0.25)
(Superseded to MA-30A19-10010)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-30A19-00020

Metal Set, Con (U.S. 0.50)

$

$

Not available

Cub Cadet MA-30A19-00030

Metal Set, Con (U.S. 0.75)

$

$

Not available

17

Cub Cadet MA-31A20-00200

Crankshaft

$

$

Not available

18

Cub Cadet MA-MF476215

Key, Woodruff

$

$

Not available

19

Cub Cadet MA-MF450010

Washer, Plain

$

$

Not available

20

Cub Cadet MA-MF450410

Washer, Spring
(Superseded to MA-A3600101802)

$

$

Not available

21

Cub Cadet MA-MF430126

Nut

$

$

Not available

22

Cub Cadet MA-31A20-22100

Pulley, Crankshaft

$

$

Not available

23

Cub Cadet MA-31A21-00070

Fly Sub Assy

$

$

Not available

24

Cub Cadet MA-MD024812

Gear, Ring

$

$

Not available

25

Flywheel

$

$

Not available

26

Cub Cadet MA-MD952231

Bolt
(Superseded to MA-31A21-03800)

$

$

Not available

27

Cub Cadet MA-MD002613

Bearing, Ball
(Superseded to MA-07500560024)

$

$

Not available

28

Cub Cadet MA-31A23-01301

Gear, Crankshaft

$

$

Not available

29

Cub Cadet MA-F2846-06000

Pin, Dowel

$

$

Not available
