7360 SS (590-603-100) - Cub Cadet Compact Tractor Radiator Parts Diagram

Compact Tractor

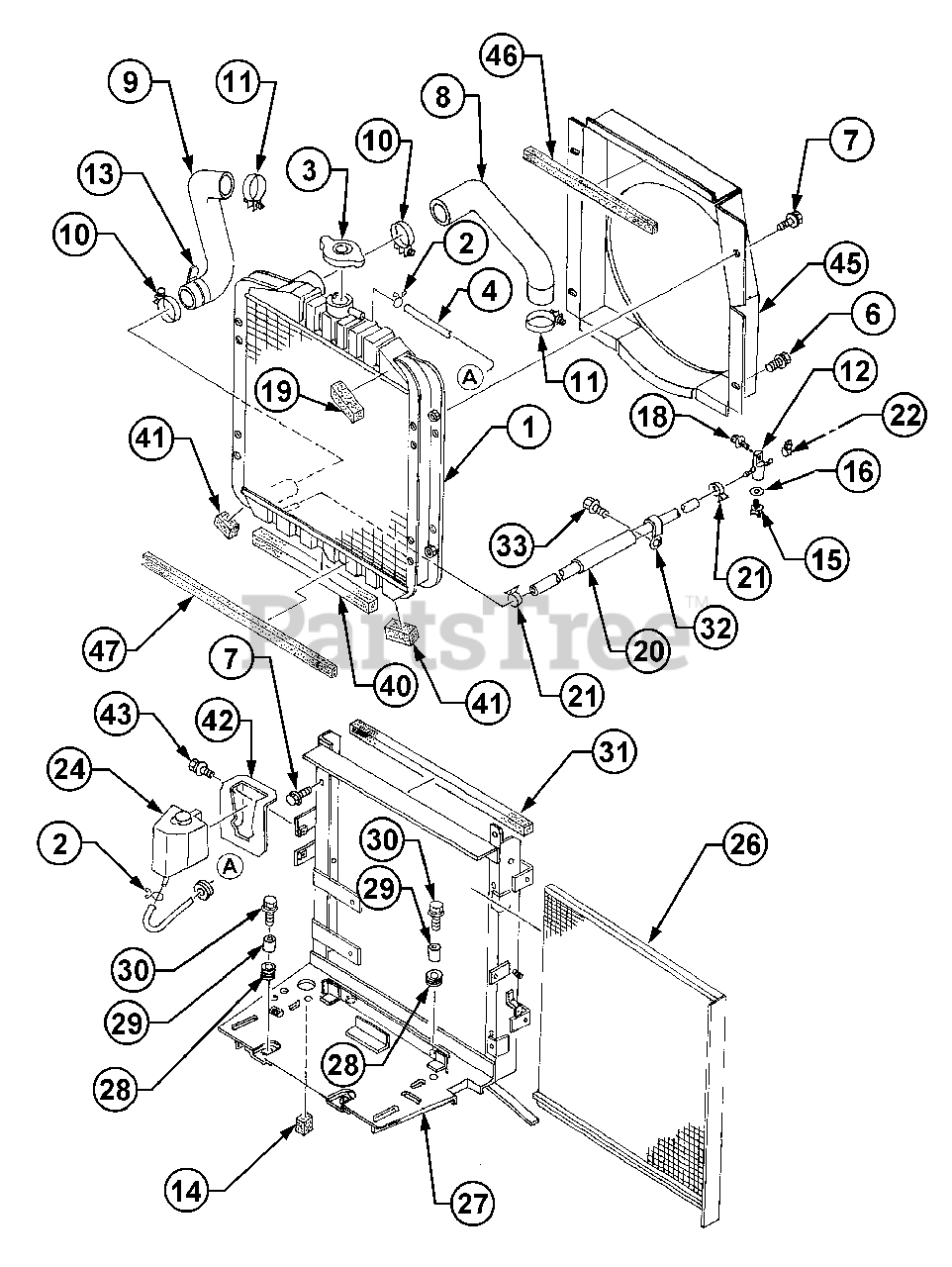

Radiator Parts Diagram

  • Title

Cub Cadet MA-10370411000

Radiator Assy

Note: (Incl. items 1-4)

$

$

Not available

1

Radiator

$

$

Not available

2

Cub Cadet MA-68201-01814

Clip

$

$

Not available

3

Cub Cadet MA-35230551200

Cap

$

$

Not available

4

Cub Cadet MA-10350412200

Hose

$

$

Not available

6

Cub Cadet MA-H1440106016

Bolt, w/Washer

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

8

Cub Cadet MA-10370415000

Hose, Upper

$71.99

$

In Stock, only 1 left!

0

9

Cub Cadet MA-10370416000

Hose, Lower

$

$

Not available

10

Cub Cadet MA-00501100430

Band, Hose

$

$

Not available

11

Cub Cadet MA-69501-07045

Clamp
(Superseded to MA-00501100450)

$

$

Not available

12

Cub Cadet MA-11740415000

Joint, Water

$

$

Not available

13

Cub Cadet MA-00511070070

Band, Wire

$

$

Not available

14

Cub Cadet MA-19812524000

Cushion

$

$

Not available

Cub Cadet MA-67401A00113

Water Cock Assy

Note: (Incl. items 15 & 16)

$

$

Not available

15

Cub Cadet MA-67401-00113

Cook Water
(Superseded to MA-67401A00113)

$

$

Not available

16

Cub Cadet MA-67401-00114

Gasket

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

19

Cub Cadet MA-11762672000

Cushion

$

$

Not available

20

Cub Cadet MA-10300416000

Pipe, Water

$

$

Not available

21

Cub Cadet MA-69501-06613

Clamp

$

$

Not available

22

Cub Cadet MA-00504112005

Clamp, Hose

$9.49

$

In Stock, Qty 12

0

24

Cub Cadet MA-10300421001

Sub Tank Assy

$

$

Not available

26

Cub Cadet MA-10310419AG1

Net, Radiator

$

$

Not available

27

Cub Cadet MA-10370422AG1

Bracket, Battery

$

$

Not available

28

Cub Cadet MA-11930439000

Grommet

$

$

Not available

29

Cub Cadet MA-67700-26000

Collar

$

$

Not available

30

Cub Cadet MA-H1540108025

Bolt, w/Washer

$

$

Not available

31

Cub Cadet MA-37330641000

Rubber

$

$

Not available

32

Cub Cadet MA-00502114083

Clamp

$

$

Not available

33

Cub Cadet MA-H1540108016

Bolt, w/Washer

$

$

Not available

40

Cub Cadet MA-10250413000

Cushion

$

$

Not available

41

Cub Cadet MA-11742676001

Cushion D

$

$

Not available

42

Cub Cadet MA-10350451AG1

Plate, Tank

$

$

Not available

43

Cub Cadet MA-H1540108016

Bolt w/Washer

$

$

Not available

45

Cub Cadet MA-10370413AG0

Shroud, Fan

$

$

Not available

46

Cub Cadet MA-36017608200

Rubber C

$

$

Not available

47

Cub Cadet MA-19080441000

Cushion

$

$

Not available
