7360 SS (590-603-100) - Cub Cadet Compact Tractor Steering Wheel & Hoses Parts Diagram

Compact Tractor

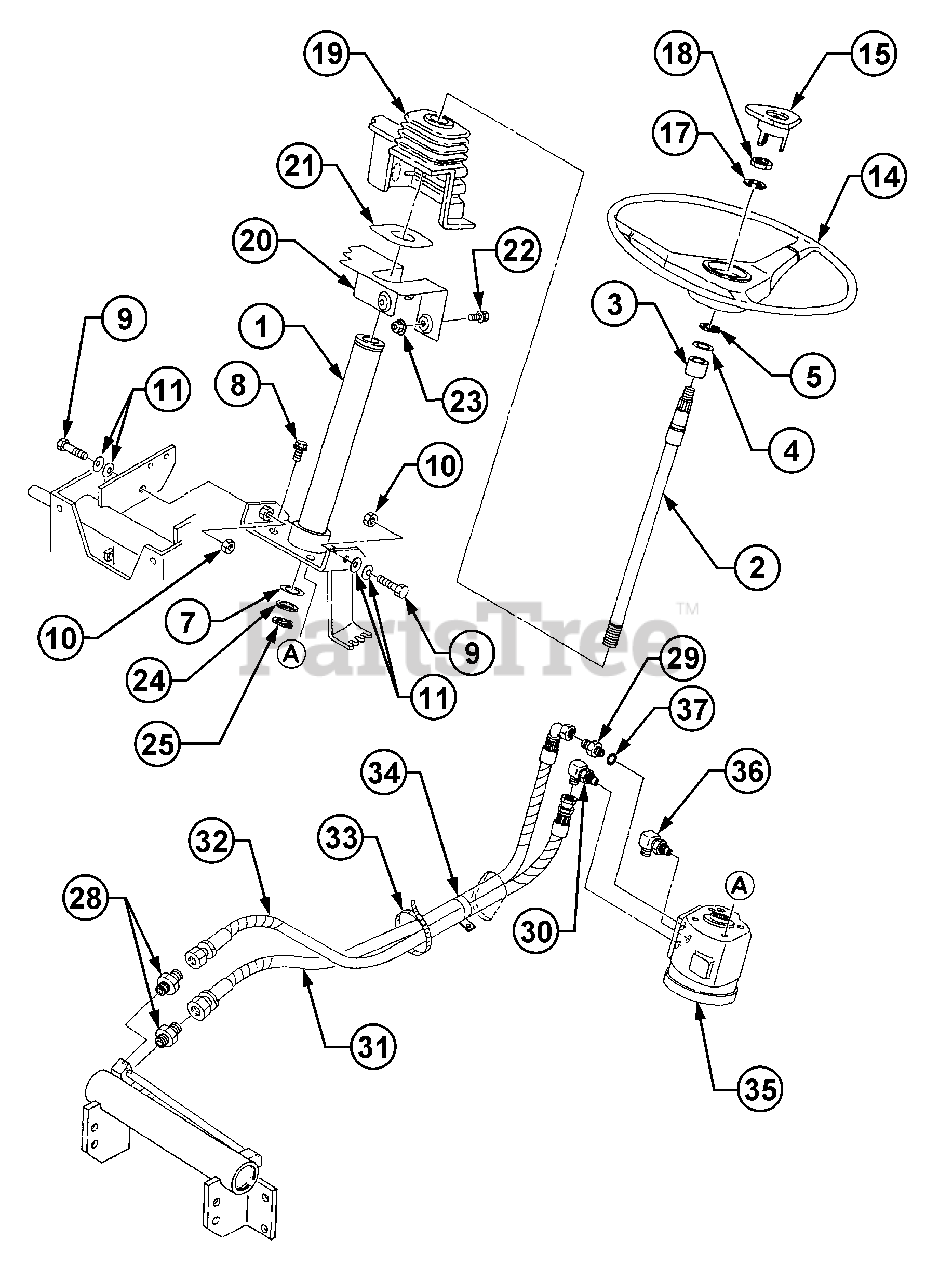

Steering Wheel & Hoses Parts Diagram

  • Title

1

Cub Cadet MA-10352235AG0

Column

$

$

Not available

2

Cub Cadet MA-10352237000

Shaft, Steering

$

$

Not available

3

Cub Cadet MA-10322248000

Bushing, Column

$

$

Not available

4

Cub Cadet MA-07300003016

Liner, t=1.6

$

$

Not available

5

Cub Cadet MA-07400102200

C-Ring

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet MA-07300003004

Liner, t=0.4

$

$

Not available

8

Cub Cadet MA-F1550110020

Bolt, w/Washer

$

$

Not available

9

Cub Cadet MA-A0520112035

Bolt

$

$

Not available

10

Cub Cadet MA-A3030112002

Nut

$

$

Not available

11

Cub Cadet MA-03560101201

Spring, Conical

$

$

Not available

Wheel Assy, Steering

Note: Not available as an assembly

$

$

Not available

14

Cub Cadet MA-10352242000

Wheel, Steering

$

$

Not available

15

Cub Cadet MA-10352243000

Cap

$

$

Not available

17

Cub Cadet MA-A3600101402

Washer, Spring

$

$

Not available

18

Cub Cadet MA-A3030114002

Nut

$

$

Not available

19

Cub Cadet MA-10352245000

Boot, Steering

$

$

Not available

20

Cub Cadet MA-10352247AG0

Cover

$

$

Not available

21

Cub Cadet MA-10352248000

Plate

$

$

Not available

22

Cub Cadet MA-H1440106016

Bolt

$3.49

$

Usually ships in 3-6 days

0

23

Cub Cadet MA-F3000106000

Nut

$

$

Not available

24

Cub Cadet MA-07310102016

Liner, t=1.6

$

$

Not available

25

Cub Cadet MA-07400102000

C-Ring

$

$

Not available

28

Cub Cadet MA-10372217000

Adapter

$

$

Not available

29

Cub Cadet MA-06311117130

Adapter

$

$

Not available

30

Cub Cadet MA-06313117130

Elbow, 90 degree

$

$

Not available

31

Cub Cadet MA-19612201000

Hose L.H.

$

$

Not available

32

Cub Cadet MA-19612202000

Hose R.H.

$

$

Not available

33

Cub Cadet MA-00511032070

Band, Wire

$

$

Not available

34

Cub Cadet MA-00502103104

Clamp

$

$

Not available

35

Cub Cadet MA-10312231002

Steering Unit

$

$

Not available

36

Cub Cadet MA-19632259000

Valve, Check

$

$

Not available

37

Cub Cadet MA-08301100140

O-Ring

$

$

Not available
