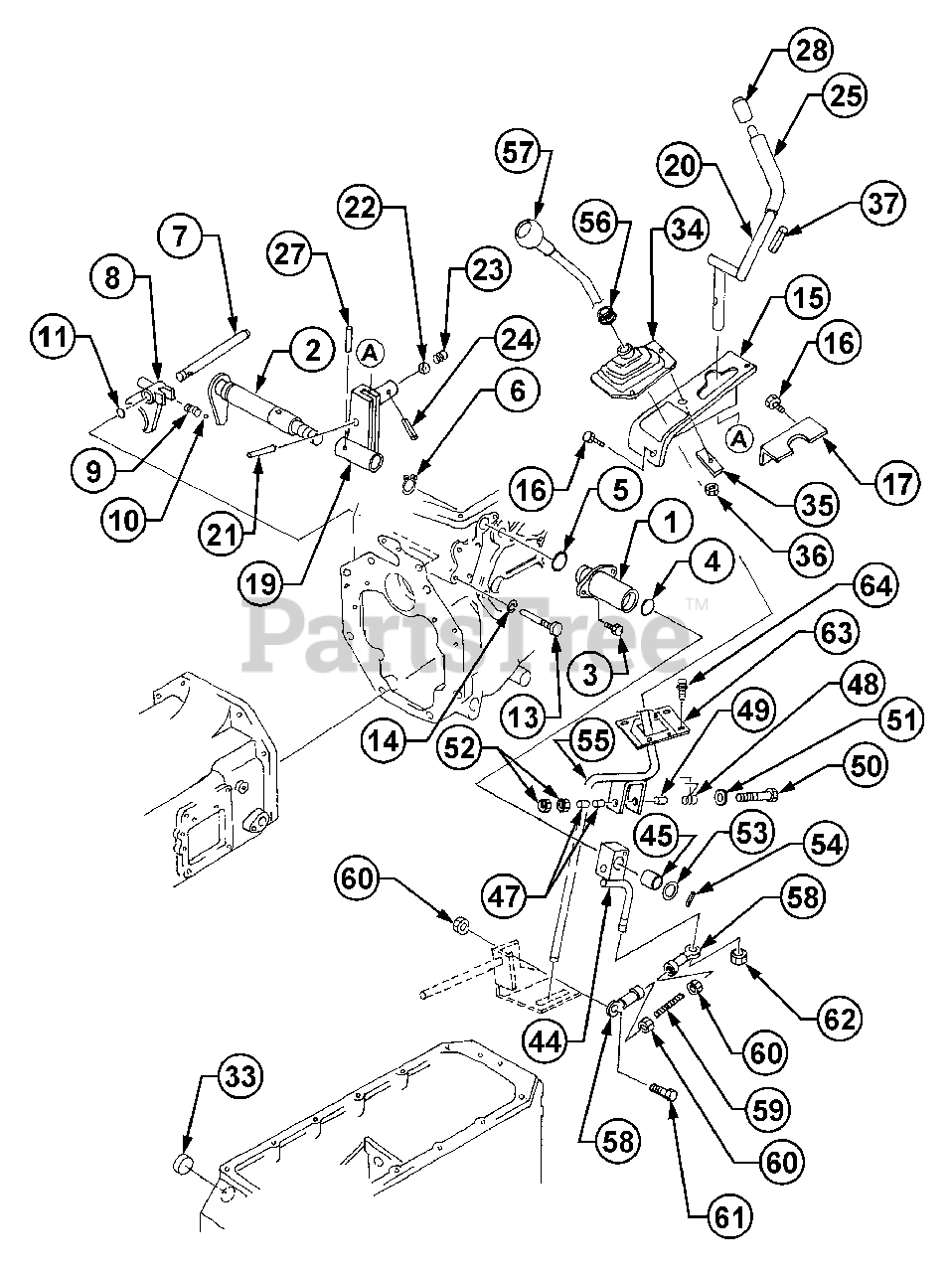

7360 SS (590-603-100) - Cub Cadet Compact Tractor T/M Control Parts Diagram

Compact Tractor

T/M Control Parts Diagram

  • Title

1

Cub Cadet MA-10311738AG0

Holder

$

$

Not available

2

Cub Cadet MA-19611721000

Arm, Change

$

$

Not available

3

Cub Cadet MA-F1540108020

Bolt, w/Washer

$

$

Not available

4

Cub Cadet MA-08300100210

O-Ring

$

$

Not available

5

Cub Cadet MA-08300200400

O-Ring

$

$

Not available

6

Cub Cadet MA-07400002500

C-Ring

$

$

Not available

7

Cub Cadet MA-10311742001

Rail B, Sub

$

$

Not available

8

Cub Cadet MA-10311744005

Fork B, Sub

$

$

Not available

Cub Cadet MA-10311744006

Fork B, Sub

Note: Replaces MA-10311744005 when inventory is depleted.

$

$

Not available

9

Cub Cadet MA-10371764001

Spring

$

$

Not available

10

Cub Cadet MA-08000000900

Ball

$3.49

$

In Stock, only 2 left!

0

11

Cub Cadet MA-08300100120

O-Ring
(Superseded to MA-08301100120)

$

$

Not available

13

Cub Cadet MA-10311745000

Bolt

$

$

Not available

14

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

15

Cub Cadet MA-19611724AG0

Cover A

$

$

Not available

16

Cub Cadet MA-F0500406016

Bolt, Flange

$

$

Not available

17

Cub Cadet MA-19611725AG0

Plate, Range

$

$

Not available

19

Cub Cadet MA-19631728AG1

Bracket, Range

$

$

Not available

20

Cub Cadet MA-19611723AG0

Lever, Range

$

$

Not available

21

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

22

Cub Cadet MA-08000000900

Ball

$3.49

$

In Stock, only 2 left!

0

23

Cub Cadet MA-67428-01700

Spring

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet MA-05200130032

Pin, Split

$

$

Not available

25

Cub Cadet MA-10351749000

Pipe

$

$

Not available

27

Cub Cadet MA-10311715000

Pin, Spring

$

$

Not available

28

Cub Cadet MA-06910012250

Grip

$

$

Not available

33

Cub Cadet MA-08340040080

Cap, Seal

$

$

Not available

34

Cub Cadet MA-19611743000

Boot

$

$

Not available

35

Cub Cadet MA-10361718000

Plate

$

$

Not available

36

Cub Cadet MA-F3000106000

Nut, Flange

$

$

Not available

37

Cub Cadet MA-11352474000

Pipe

$

$

Not available

44

Cub Cadet MA-19611731AG0

Lever, Boss

$

$

Not available

45

Cub Cadet MA-07961020300

Bushing

$

$

Not available

47

Cub Cadet MA-07971010150

Bushing

$

$

Not available

48

Cub Cadet MA-10251127004

Spring

$

$

Not available

49

Cub Cadet MA-10251120001

Collar

$

$

Not available

50

Cub Cadet MA-A5150110080

Bolt, Reamer

$

$

Not available

51

Cub Cadet MA-03500141022

Washer

$

$

Not available

52

Cub Cadet MA-A3030110002

Nut

$

$

Not available

53

Cub Cadet MA-07310102016

Liner, t=1.6

$

$

Not available

54

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

55

Cub Cadet MA-19611729AG0

Lever, Main

$

$

Not available

56

Cub Cadet MA-11930439000

Grommet

$

$

Not available

57

Cub Cadet MA-06930014460

Grip

$

$

Not available

58

Cub Cadet MA-19871278000

Rod End R

$

$

Not available

59

Cub Cadet MA-19611732000

Rod

$

$

Not available

60

Cub Cadet MA-A3000110002

Nut

$

$

Not available

61

Cub Cadet MA-A0500110030

Bolt

$

$

Not available

62

Cub Cadet MA-A3530110000

Nut, Lock

$

$

Not available

63

Cub Cadet MA-19611748000

Guide

$

$

Not available

64

Cub Cadet MA-H1540108016

Bolt,w/Washer

$

$

Not available
