7360 SS (590-603-100) - Cub Cadet Compact Tractor T/M Control - Shuttle Rail & Fork Parts Diagram

Compact Tractor

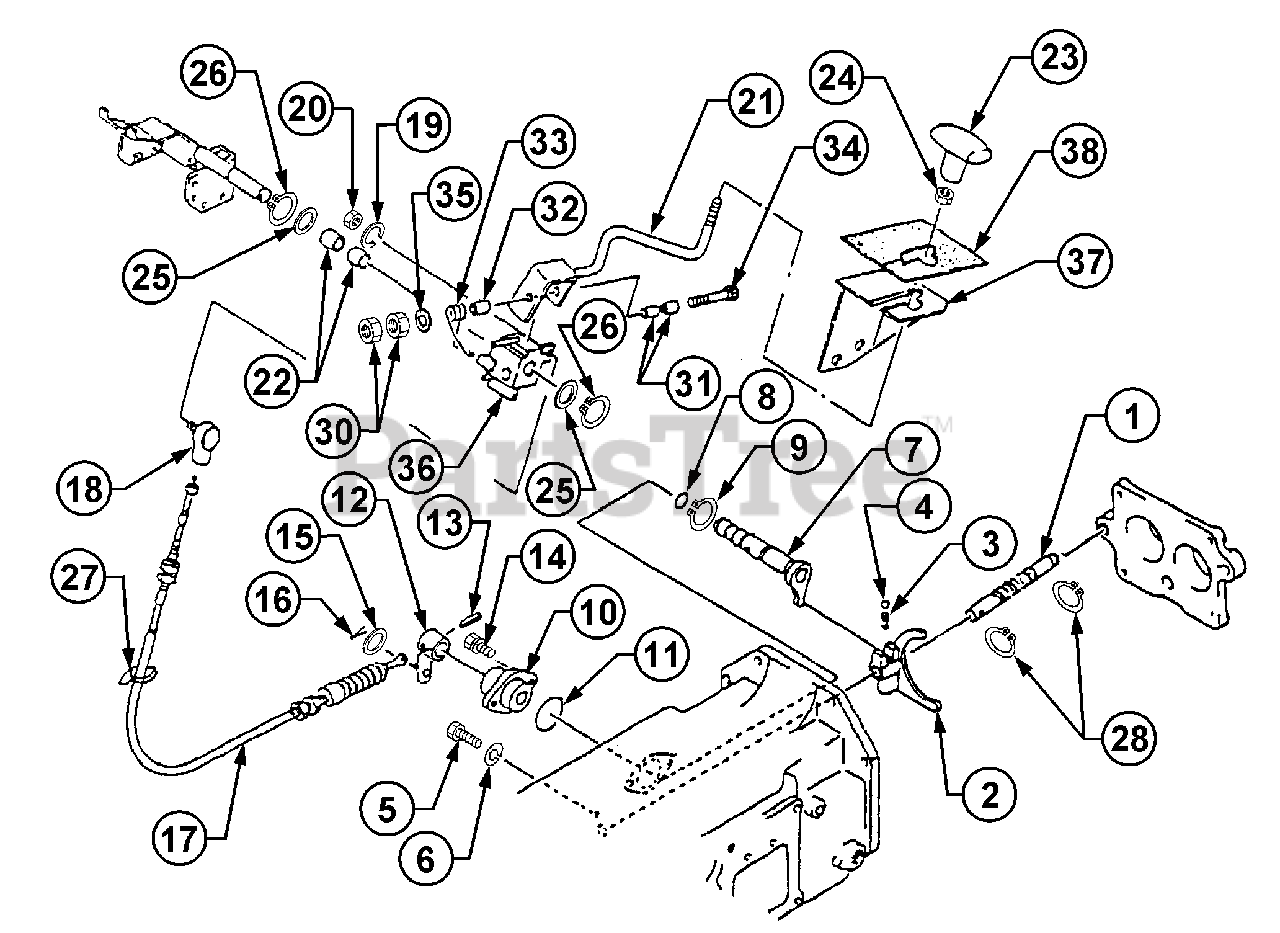

T/M Control - Shuttle Rail & Fork Parts Diagram

  • Title

1

Cub Cadet MA-19611736000

Rail, Shuttle

$

$

Not available

2

Cub Cadet MA-19611735000

Fork, Shuttle

$

$

Not available

3

Cub Cadet MA-10371764001

Spring

$

$

Not available

4

Cub Cadet MA-08000000900

Ball

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet MA-10301737000

Bolt

$

$

Not available

6

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

7

Cub Cadet MA-10311753000

Arm, Shuttle

$

$

Not available

8

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

9

Cub Cadet MA-07400102000

C-Ring

$

$

Not available

10

Cub Cadet MA-10311754AG0

Holder

$

$

Not available

11

Cub Cadet MA-08300200400

O-Ring

$

$

Not available

12

Cub Cadet MA-19611746AG0

Link, Shuttle

$149.99

$

In Stock, only 1 left!

0

13

Cub Cadet MA-05500008040

Pin, Spring

$

$

Not available

14

Cub Cadet MA-F1540108020

Bolt, w/Washer

$

$

Not available

15

Cub Cadet MA-03500140818

Washer

$

$

Not available

16

Cub Cadet MA-05200125020

Pin, Split

$

$

Not available

17

Cub Cadet MA-10371748000

Wire, Control

$406.99

$

Usually ships in 3-6 days

0

18

Cub Cadet MA-39222325000

Ball, Link

$37.99

$

Usually ships in 3-6 days

0

19

Cub Cadet MA-A3600100802

Washer, Spring

$

$

Not available

20

Cub Cadet MA-A3810108000

Nut

$

$

Not available

21

Cub Cadet MA-19611722AG0

Lever, Shuttle

$

$

Not available

22

Cub Cadet MA-07961020150

Bushing

$

$

Not available

23

Cub Cadet MA-27562585001

Grip

$

$

Not available

24

Cub Cadet MA-A3010110002

Nut

$

$

Not available

25

Cub Cadet MA-07310102010

Liner, t=1.0

$

$

Not available

26

Cub Cadet MA-07400102000

C-Ring

$

$

Not available

27

Cub Cadet MA-00511032070

Band, Wire

$

$

Not available

28

Cub Cadet MA-07400001600

C-Ring

$

$

Not available

30

Cub Cadet MA-A3030110002

Nut

$

$

Not available

31

Cub Cadet MA-07971010150

Bushing

$

$

Not available

32

Cub Cadet MA-10251120001

Collar

$

$

Not available

33

Cub Cadet MA-10251127004

Spring

$

$

Not available

34

Cub Cadet MA-A5150110080

Bolt, Reamer

$

$

Not available

35

Cub Cadet MA-03500141022

Washer

$

$

Not available

36

Cub Cadet MA-10351765AG1

Link, Boss

$

$

Not available

Cub Cadet MA-10351765AG2

Link, Boss

Note: Replaces MA-10351765AG1 when inventory is depleted.

$

$

Not available

37

Cub Cadet MA-19611741AG0

Guide

$

$

Not available

38

Cub Cadet MA-19611742000

Rubber

$

$

Not available
