7360 SS (590-603-100) - Cub Cadet Compact Tractor Timing Gear Parts Diagram

Compact Tractor

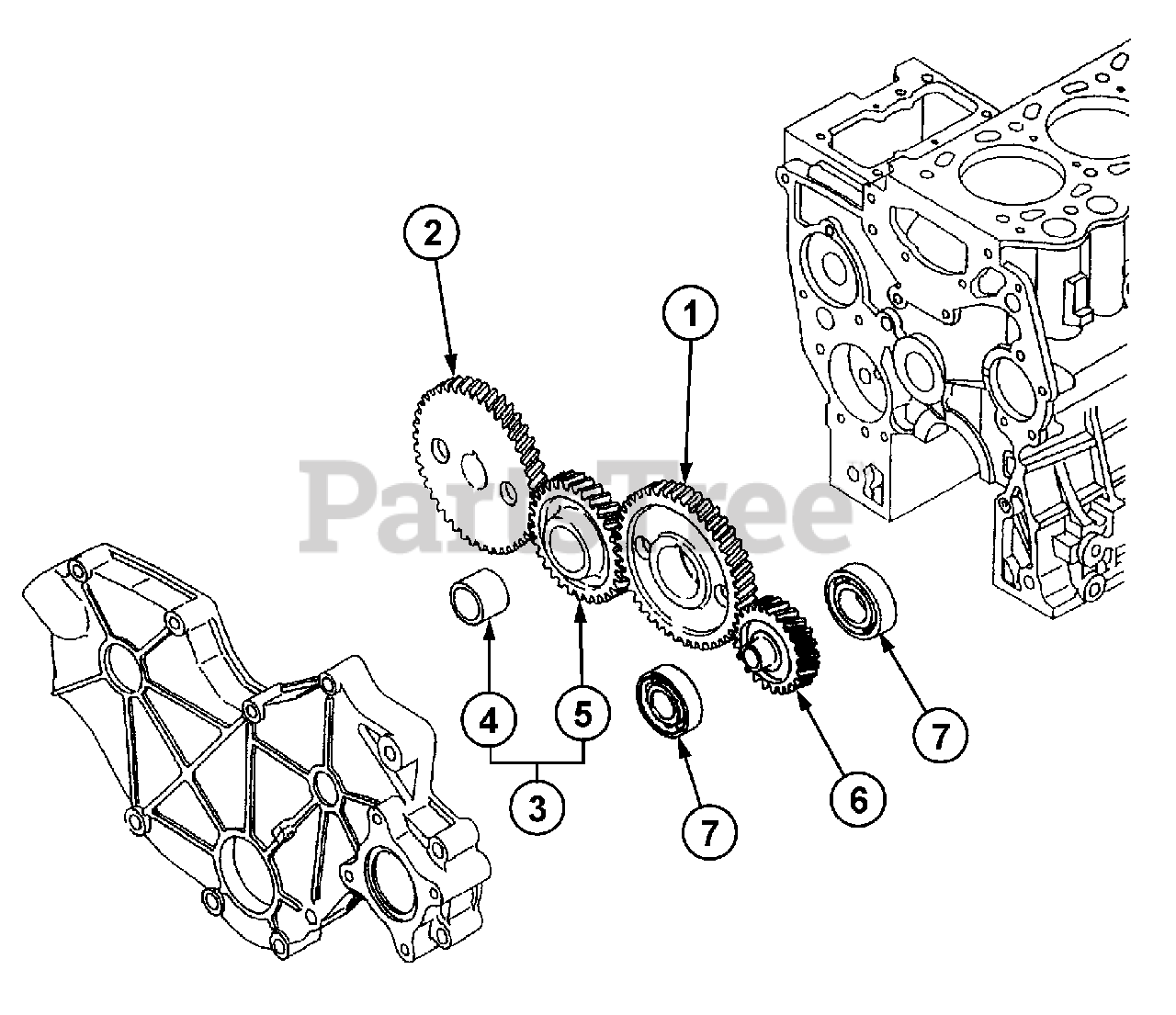

Timing Gear Parts Diagram

  • Title

1

Cub Cadet MA-31A23-01403

Gear, Camshaft
(Superseded to MA-31A23-01402)

$

$

Not available

2

Cub Cadet MA-31A23-10100

Gear, Inj. Pump

$

$

Not available

3

Cub Cadet MA-31A23-01020

Gear Assy, Idler

$

$

Not available

4

Bushing, Idler

$

$

Not available

5

Gear, Idler

$

$

Not available

6

Cub Cadet MA-31A23-01500

Gear, Oil Pump

$

$

Not available

7

Cub Cadet MA-MD712517

Bearing

$

$

Not available
