7360 SS (590-603-100) - Cub Cadet Compact Tractor Transmission - Center Case Parts Diagram

Compact Tractor

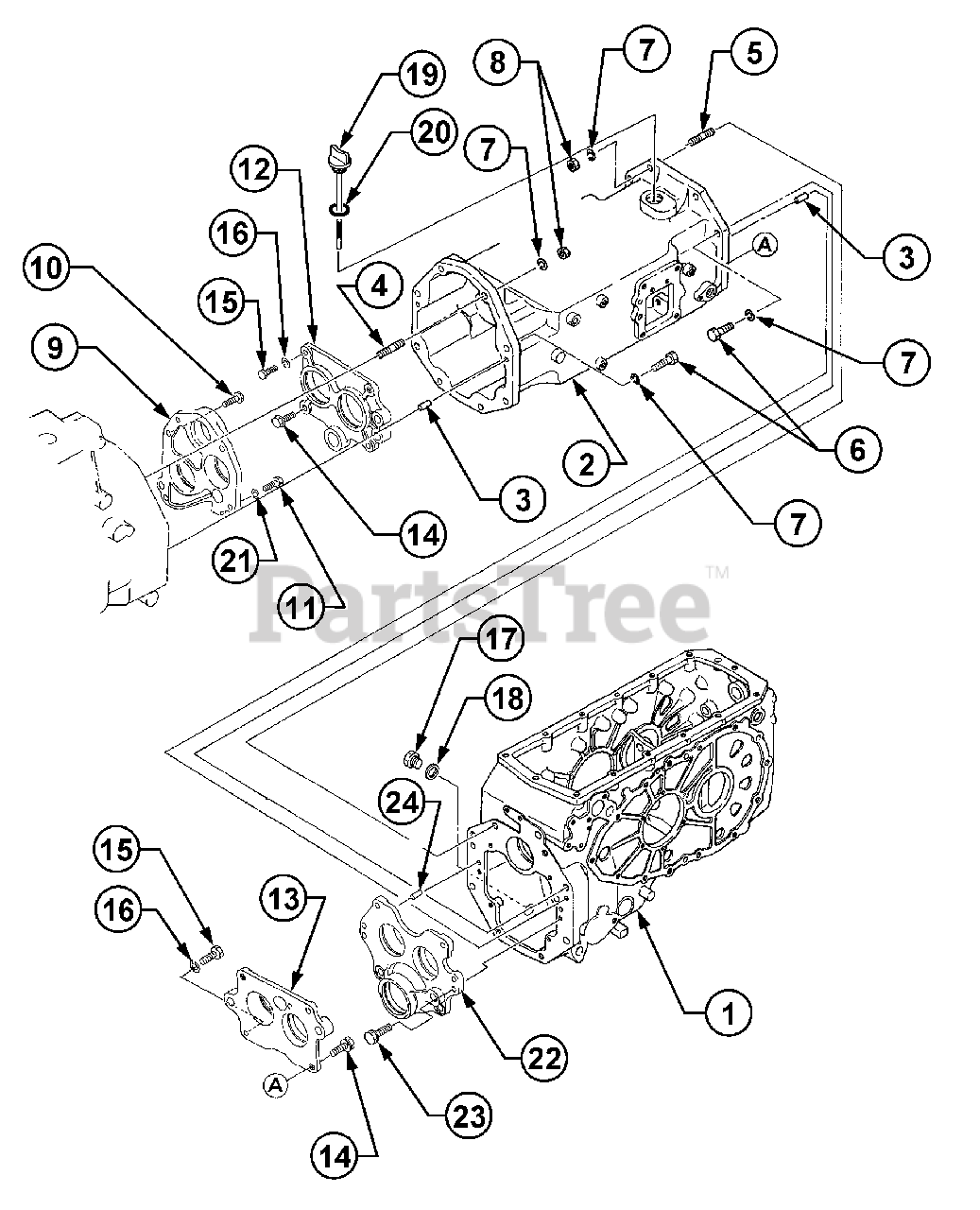

Transmission - Center Case Parts Diagram

  • Title

1

Cub Cadet MA-19611211AG0

Housing T/M

$

$

Not available

2

Cub Cadet MA-19611213AG1

Case, Center

Note: Also order MA-08340040080 Cap, Seal

$

$

Not available

Cub Cadet MA-08340040080

Cap, Seal

Note: (Not Shown)

$

$

Not available

3

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet MA-F1450-14060

Stud

$

$

Not available

5

Cub Cadet MA-F1450-14040

Stud

$

$

Not available

6

Cub Cadet MA-A0400114045

Bolt
(Superseded to MA-F1145-14045)

$

$

Not available

7

Cub Cadet MA-A3600101402

Washer, Spring

$

$

Not available

8

Cub Cadet MA-A3040114002

Nut

$

$

Not available

9

Cub Cadet MA-10371225000

Cover B

$

$

Not available

10

Cub Cadet MA-F1550110030

Bolt, w/Washer

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

12

Cub Cadet MA-10311321000

Cover C

$

$

Not available

13

Cub Cadet MA-19611309000

Cover

$

$

Not available

14

Cub Cadet MA-F1550110030

Bolt, w/Washer

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet MA-69542-64700

Bolt

$8.99

$

In Stock, only 2 left!

0

16

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

17

Cub Cadet MA-68226-04900

Plug, Magnet

$

$

Not available

18

Cub Cadet MA-08331002000

Washer, Seal

$

$

Not available

19

Cub Cadet MA-10371372000

Plug, Oiling
(Superseded to MA-19611361000)

$

$

Not available

20

Cub Cadet MA-08300100280

O-Ring

$2.99

$

Usually ships in 3-6 days

0

21

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

22

Cub Cadet MA-10311356000

Cover E

$

$

Not available

23

Cub Cadet MA-F1550110030

Bolt, w/Washer

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0
