7360 SS (590-603-100) - Cub Cadet Compact Tractor Transmission - Cover "C" Sub Parts Diagram

Compact Tractor

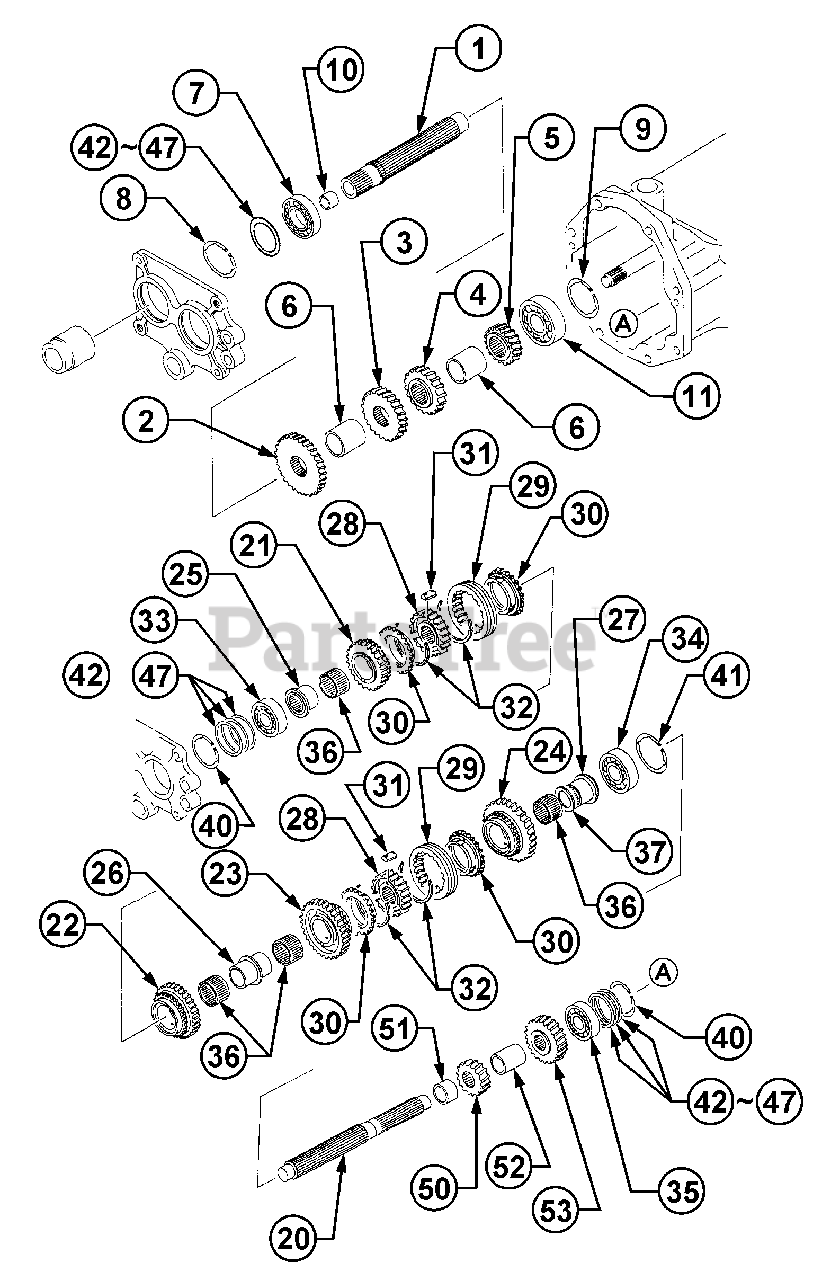

Transmission - Cover "C" Sub Parts Diagram

  • Title

1

Cub Cadet MA-10311271000

Shaft, Pipe

$

$

Not available

2

Cub Cadet MA-19611272000

Gear 35T

$

$

Not available

3

Cub Cadet MA-19611273000

Gear 29T

$

$

Not available

4

Cub Cadet MA-19611274000

Gear 23T

$

$

Not available

5

Cub Cadet MA-19611275000

Gear 18T

$

$

Not available

6

Cub Cadet MA-10311277000

Spacer

$

$

Not available

7

Cub Cadet MA-07500060070

Bearing, Ball

$

$

Not available

8

Cub Cadet MA-07410006201

C-Ring

$

$

Not available

9

Cub Cadet MA-07410007201

C-Ring

$

$

Not available

10

Cub Cadet MA-07961020150

Bushing

$

$

Not available

11

Cub Cadet MA-07520663060

Bearing, Ball

$

$

Not available

20

Cub Cadet MA-10311281000

Shaft

$

$

Not available

21

Cub Cadet MA-19611282000

Gear 23T

$

$

Not available

22

Cub Cadet MA-19611283000

Gear 28T

$

$

Not available

23

Cub Cadet MA-19611284000

Gear 35T

$

$

Not available

24

Cub Cadet MA-19611285000

Gear 40T

$

$

Not available

25

Cub Cadet MA-11761268000

Retainer A

$

$

Not available

26

Cub Cadet MA-11741256000

Retainer B

$

$

Not available

27

Cub Cadet MA-10311327000

Retainer

$

$

Not available

28

Cub Cadet MA-10311286001

Hub

$

$

Not available

29

Cub Cadet MA-69526-01100

Sleeve

$

$

Not available

30

Cub Cadet MA-68226-03500

Ring

$

$

Not available

31

Cub Cadet MA-68226-03600

Piece

$

$

Not available

32

Cub Cadet MA-68226-03700

Spring

$

$

Not available

33

Cub Cadet MA-07520663050

Bearing, Ball

$

$

Not available

34

Cub Cadet MA-07500063060

Bearing, Ball

$50.99

$

In Stock, Qty 5

0

35

Cub Cadet MA-07520663050

Bearing, Ball

$

$

Not available

36

Cub Cadet MA-07802404527

Bearing, Needle

$

$

Not available

37

Cub Cadet MA-07460004000

Ring

$

$

Not available

40

Cub Cadet MA-07410006201

C-Ring

$

$

Not available

41

Cub Cadet MA-07410007201

C-Ring

$

$

Not available

Cub Cadet MA-10211318000

Liner Set

Note: (Incl. item(s) 42-44)

$

$

Not available

42

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

43

Cub Cadet MA-07300006204

Liner, t=0.4

$

$

Not available

44

Cub Cadet MA-07300006208

Liner, t=0.8

$

$

Not available

45

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

46

Cub Cadet MA-07300006206

Liner, t=0.6

$

$

Not available

47

Cub Cadet MA-07300006210

Liner, t=1.0

$

$

Not available

50

Cub Cadet MA-19611276000

Gear 19T

$

$

Not available

51

Cub Cadet MA-10311293001

Spacer

$

$

Not available

52

Cub Cadet MA-10211293000

Spacer

$

$

Not available

53

Cub Cadet MA-19611287000

Gear 28T

$

$

Not available
