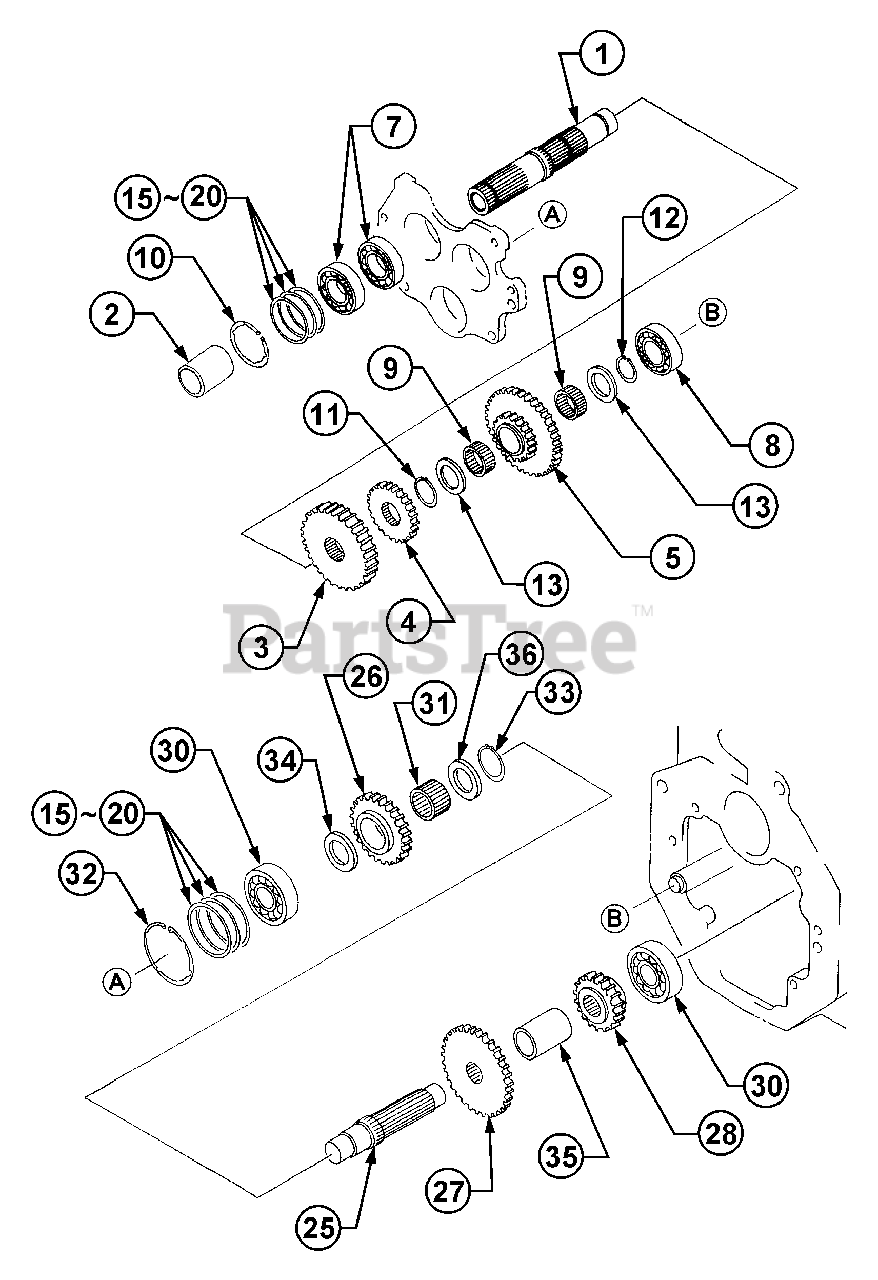

7360 SS (590-603-100) - Cub Cadet Compact Tractor Transmission - Drive Shaft Parts Diagram

Compact Tractor

Transmission - Drive Shaft Parts Diagram

  • Title

1

Cub Cadet MA-10311331000

Shaft, Pipe

$

$

Not available

2

Cub Cadet MA-35211722101

Collar

$

$

Not available

3

Cub Cadet MA-10311333001

Gear 35T

$

$

Not available

4

Cub Cadet MA-10311334000

Gear 23T

$

$

Not available

5

Cub Cadet MA-19611293000

Gear 18-28T

$

$

Not available

7

Cub Cadet MA-07520660070

Bearing, Ball

$

$

Not available

8

Cub Cadet MA-07500062060

Bearing, Ball

$

$

Not available

9

Cub Cadet MA-07802303614

Bearing, Needle

$

$

Not available

10

Cub Cadet MA-07410006201

C-Ring

$

$

Not available

11

Cub Cadet MA-07400103500

C-Ring

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet MA-0740000300

C-Ring

$

$

Currently unavailable

13

Cub Cadet MA-67326-02402

Spacer

$

$

Not available

Cub Cadet MA-10211318000

Liner Set

Note: (Incl. item(s) 15-17)

$

$

Not available

15

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

16

Cub Cadet MA-07300006204

Liner, t=0.4

$

$

Not available

17

Cub Cadet MA-07300006208

Liner, t=0.8

$

$

Not available

18

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

19

Cub Cadet MA-07300006206

Liner, t=0.6

$

$

Not available

20

Cub Cadet MA-07300006210

Liner, t=1.0

$

$

Not available

25

Cub Cadet MA-10311341001

Shaft

$

$

Not available

26

Cub Cadet MA-10311342001

Gear 24T

$

$

Not available

27

Cub Cadet MA-10311343000

Gear 31T

$

$

Not available

28

Cub Cadet MA-19611294000

Gear 27T

$

$

Not available

30

Cub Cadet MA-07500063050

Bearing, Ball

$38.99

$

In Stock, Qty 7

0

31

Cub Cadet MA-07802303520

Bearing, Needle

$

$

Not available

32

Cub Cadet MA-07410006201

C-Ring

$

$

Not available

33

Cub Cadet MA-0740000300

C-Ring

$

$

Currently unavailable

34

Cub Cadet MA-10301328000

Liner

$

$

Not available

35

Cub Cadet MA-10311346000

Spacer

$

$

Not available

36

Cub Cadet MA-67326-02402

Spacer

$

$

Not available
