7360 SS (590-603-100) - Cub Cadet Compact Tractor Transmission - Hub & Sleeve Parts Diagram

Compact Tractor

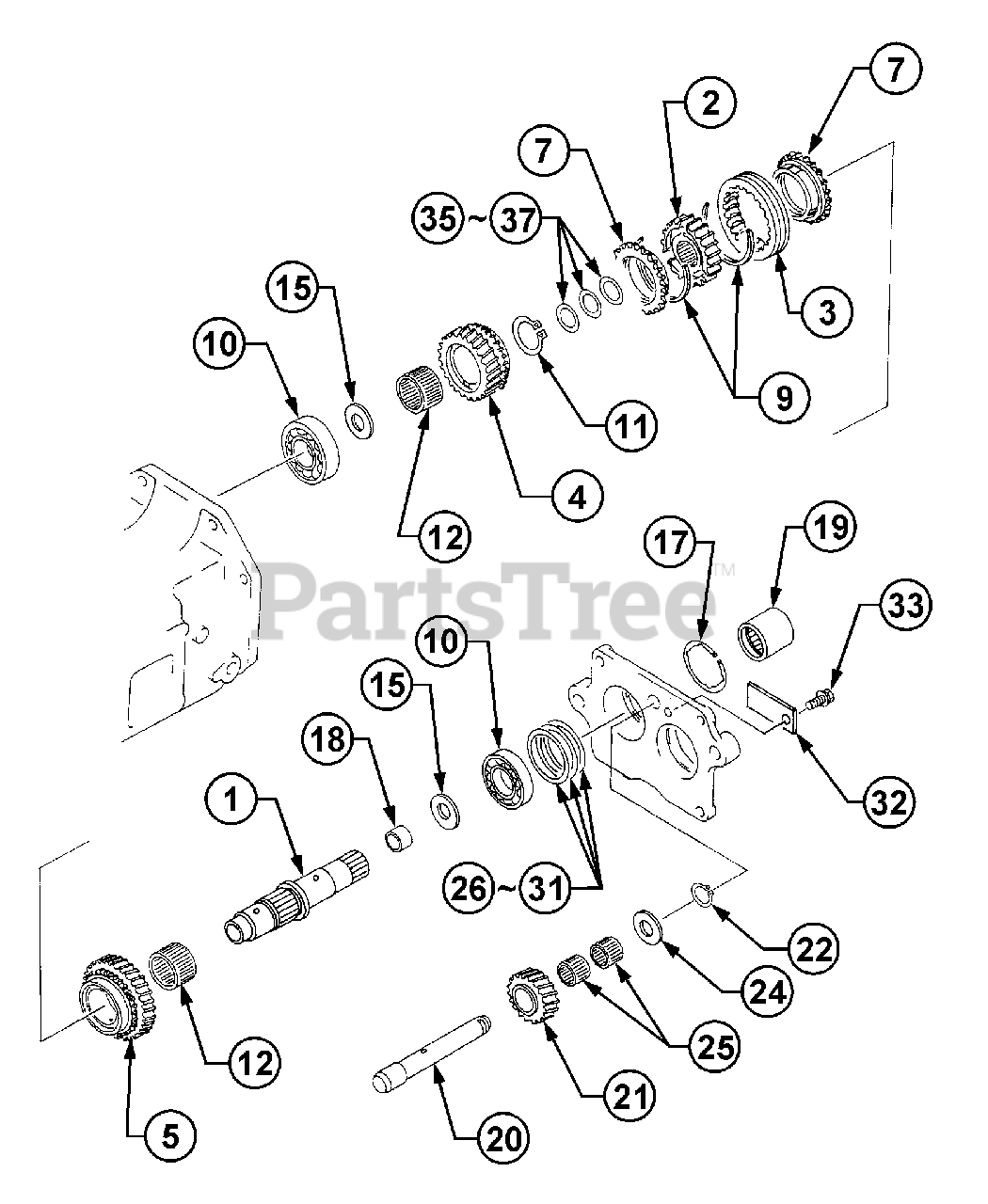

Transmission - Hub & Sleeve Parts Diagram

  • Title

1

Cub Cadet MA-19611311000

Shaft Pipe

$

$

Not available

Cub Cadet MA-19611315000

Hub & Sleeve Set

Note: (Incl. item(s) 2 & 3)

$

$

Not available

Cub Cadet MA-10401383000

Hub & Sleeve Set

Note: Replaces MA-19611315000 when inventory is depleted.

$

$

Not available

2

Hub

$

$

Not available

3

Sleeve

$

$

Not available

4

Cub Cadet MA-19611312000

Gear 26T

$

$

Not available

5

Cub Cadet MA-19611313000

Gear 27T

$

$

Not available

7

Cub Cadet MA-19611321000

Ring Set

$

$

Not available

9

Cub Cadet MA-19611318000

Spring

$

$

Not available

10

Cub Cadet MA-07500062070

Bearing, Ball

$

$

Not available

11

Cub Cadet MA-07400004501

C-Ring

$

$

Not available

12

Cub Cadet MA-07802404527

Bearing, Needle

$

$

Not available

15

Cub Cadet MA-19611314000

Liner

$

$

Not available

17

Cub Cadet MA-07410007201

C-Ring

$

$

Not available

18

Cub Cadet MA-07961020150

Bushing

$

$

Not available

19

Cub Cadet MA-19611291000

Joint

$

$

Not available

20

Cub Cadet MA-19611326000

Shaft, Back

$

$

Not available

21

Cub Cadet MA-19611327000

Gear 17T

$

$

Not available

22

Cub Cadet MA-0700002500

C-Ring

$

$

Currently unavailable

24

Cub Cadet MA-10301328000

Liner

$

$

Not available

25

Cub Cadet MA-07802253113

Bearing, Needle

$

$

Not available

Cub Cadet MA-10211318000

Liner Set

Note: (Incl. item(s) 26-28)

$

$

Not available

26

Cub Cadet MA-07300006201

Liner, t=0.15

$

$

Not available

27

Cub Cadet MA-07300006204

Liner, t=0.4

$

$

Not available

28

Cub Cadet MA-07300006208

Liner, t=0.8

$

$

Not available

29

Cub Cadet MA-07300006202

Liner, t=0.2

$

$

Not available

30

Cub Cadet MA-07300006206

Liner, t=0.6

$

$

Not available

31

Cub Cadet MA-07300006210

Liner, t=1.0

$

$

Not available

32

Cub Cadet MA-10311328000

Plate

$

$

Not available

33

Cub Cadet MA-F1540108020

Bolt, w/Washer

$

$

Not available

35

Cub Cadet MA-07300005502

Liner, t=0.2

$

$

Not available

36

Cub Cadet MA-07300005504

Liner, t=0.4

$

$

Not available

37

Cub Cadet MA-07300005510

Liner, t=1.0

$

$

Not available
