74171 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

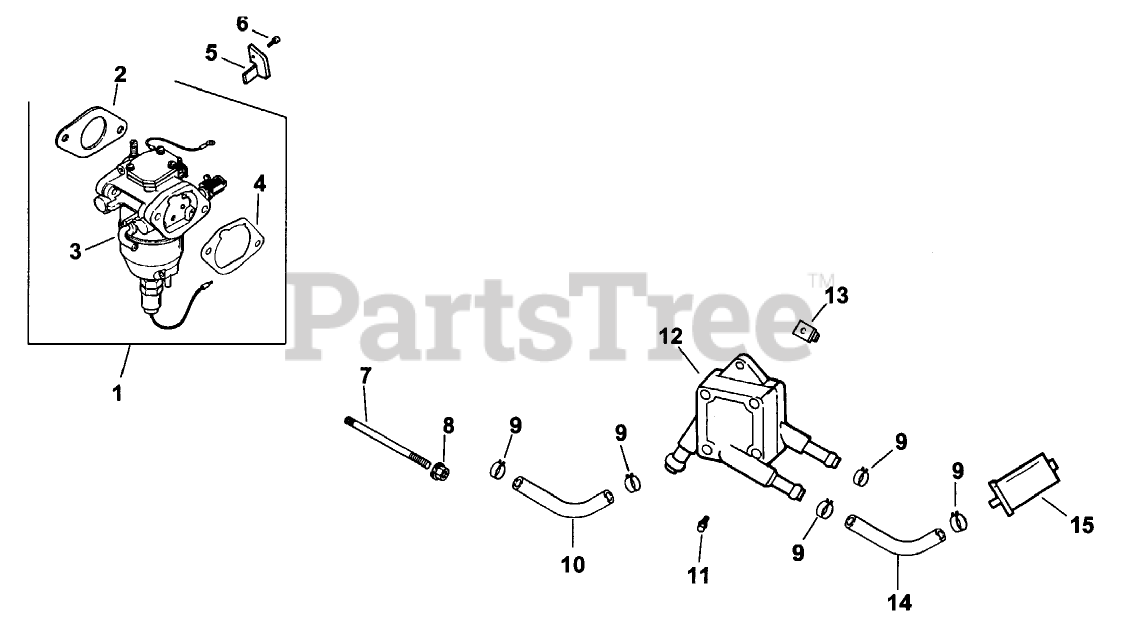

GROUP 8 FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

2485325

Kit, carburetor with gaskets (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

2404115

Kit-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

2405325

Carburetor assembly (For information only not available separately)(Includes 24 757 18, 24 757 19, 24 757 20, 24 757 22)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

2404114

Gasket-A/C Base

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2412653

Bracket, throttle stop

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Toro M-0259005

Screw, pan hd.

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Kohler M-0629095

Stud

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler M-0641060

Nut
(Superseded to M-641060)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 15

0

9

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 6

0

10

2435303

Line-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

2408612

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

2439304

Pump-Fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

14

2535310

Line fuel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

15

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

2475718

Kit, overhaul w/gaskets(Includes air cleanerbase gasket, carburetorgasket, throttle adjustingscrew, gasket, idleadjusting screw, float,float pin, float valve,float chamber gasket,throttle adjusting screwspring, idle adjustingscrew spring, passagecove

Note: Not illustrated

$

$

Not available

2475718

Kit, overhaul w/gaskets(Includes air cleanerbase gasket, carburetorgasket, throttle adjustingscrew, gasket, idleadjusting screw, float,float pin, float valve,float chamber gasket,throttle adjusting screwspring, idle adjustingscrew spring, passagecove

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475719

Kit, choke repairw/gaskets (Includes aircleaner base gasket,carburetor gasket, valveset screw, choke valve,choke shaft filter, chokearm return spring, chokelever ring, choke collar,choke shaft assembly,choke lever assembly)

Note: Not illustrated

$

$

Not available

2475719

Kit, choke repairw/gaskets (Includes aircleaner base gasket,carburetor gasket, valveset screw, choke valve,choke shaft filter, chokearm return spring, chokelever ring, choke collar,choke shaft assembly,choke lever assembly)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475720

Kit, gasket (Includes aircleaner base gasket,carburetor gasket, floatchamber gasket, passage cover gasket)

Note: Not illustrated

$

$

Not available

2475720

Kit, gasket (Includes aircleaner base gasket,carburetor gasket, floatchamber gasket, passage cover gasket)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2475722

Kit, solenoidreplacement w/gaskets(Includes air cleanerbase gasket, carburetorchamber screw gasket, solenoid holder, solenoid valve)

Note: Not illustrated

$

$

Not available

2475722

Kit, solenoidreplacement w/gaskets(Includes air cleanerbase gasket, carburetorchamber screw gasket, solenoid holder, solenoid valve)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
