74172 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099999999) (1999) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

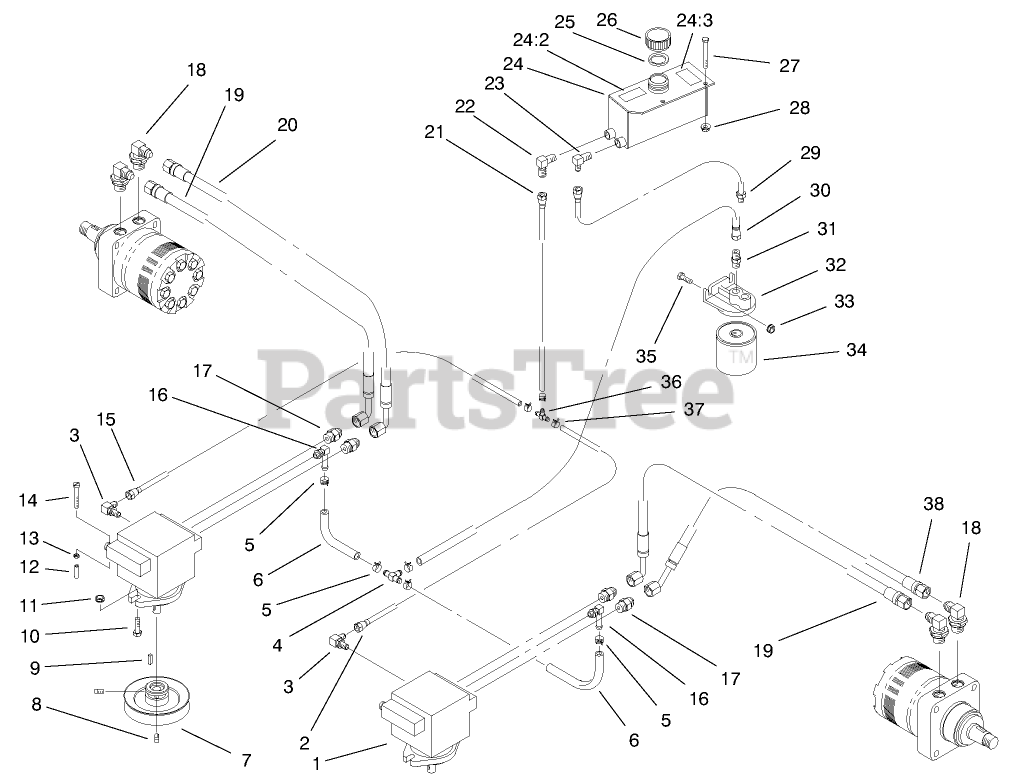

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro E603841

Pump-Hydro
(Superseded to 103-2766)

$1481.99

$

Usually ships in 3-6 days

0

2

Toro E632285

Hose-Low Pressure
(Superseded to 1-632285)

$43.99

$

In Stock, only 4 left!

0

3

Toro E513840

Elbow
(Superseded to 1-513840)

$29.99

$

In Stock, only 1 left!

0

4

Toro E603721

Fitting
(Superseded to 1-603721)

$22.99

$

Usually ships in 3-6 days

0

5

Toro E603827

Clamp-Hose
(Superseded to 1-603827)

$2.99

$

In Stock, only 4 left!

0

6

Toro E413273

Hose-Low Pressure
(Superseded to 1-413273)

$13.99

$

In Stock, only 1 left!

0

7

Toro E653156

Sheave w/Hub
(Superseded to 1-653156)

$71.99

$

In Stock, only 3 left!

0

8

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

9

Toro E807272

Key
(Superseded to 1-807272)

$5.99

$

In Stock, Qty 9

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro E613073

Grip
(Superseded to 1-613073)

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro E801063

Screw-PPH
(Superseded to 1-801063)

$2.99

$

Usually ships in 3-6 days

0

15

Toro E632286

Hose-Low Pressure
(Superseded to 1-632286)

$26.99

$

In Stock, only 3 left!

0

16

Toro E603989

Elbow
(Superseded to 1-603989)

$35.99

$

Usually ships in 3-6 days

0

17

Toro E603990

Adapter
(Superseded to 1-603990)

$18.99

$

In Stock, Qty 8

0

18

Toro E633605

Elbow 90
(Superseded to 1-633605)

$47.99

$

In Stock, only 2 left!

0

19

Toro E653186

Hose
(Superseded to 1-653186)

$75.99

$

In Stock, only 1 left!

0

20

Toro E653187

Hose
(Superseded to 1-653187)

$76.99

$

In Stock, only 3 left!

0

21

Toro E654144

Hose
(Superseded to 1-654144)

$58.99

$

Usually ships in 3-6 days

0

22

Toro E603987

Elbow
(Superseded to 1-603987)

$19.99

$

Usually ships in 3-6 days

0

23

Toro E603988

Elbow
(Superseded to 1-603988)

$20.99

$

Usually ships in 3-6 days

0

24

Toro 99-4625

HYDRAULIC TANK ASM

$

$

Not available

24:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

24:3

Toro E513890

Decal-Hydraulic Tank
(Superseded to 1-513890)

$6.49

$

In Stock, only 2 left!

0

25

Toro E523103

Gasket
(Superseded to 1-523103)

$6.49

$

In Stock, Qty 13

0

26

Toro E513167

Cap
(Superseded to 1-513167)

$26.99

$

In Stock, only 4 left!

0

27

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro E654145

Hose
(Superseded to 1-654145)

$

$

Not available

30

Toro E654197

Hose
(Superseded to 1-654197)

$59.99

$

Usually ships in 3-6 days

0

31

Toro E513510

Connector
(Superseded to 1-513510)

$11.99

$

Usually ships in 3-6 days

0

32

Toro E603720

Head-Filter
(Superseded to 1-603720)

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro E633750

Filter-Hydro
(Superseded to 1-633750)

$26.99

$

In Stock, Qty 18

0

34

Toro E633752

Filter-Winter
(Superseded to 1-633752)

$34.99

$

Usually ships in 3-6 days

0

35

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro E603722

Fitting
(Superseded to 1-603722)

$21.99

$

Usually ships in 3-6 days

0

37

Toro E603826

Clamp-Hose
(Superseded to 1-603826)

$1.49

$

Usually ships in 3-6 days

0

38

Toro E653188

Hose
(Superseded to 1-653188)

$83.99

$

Usually ships in 3-6 days

0

39

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

40

Toro E513890

Decal-Hydraulic Tank
(Superseded to 1-513890)

$6.49

$

In Stock, only 2 left!

0
