74172 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099999999) (1999) PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

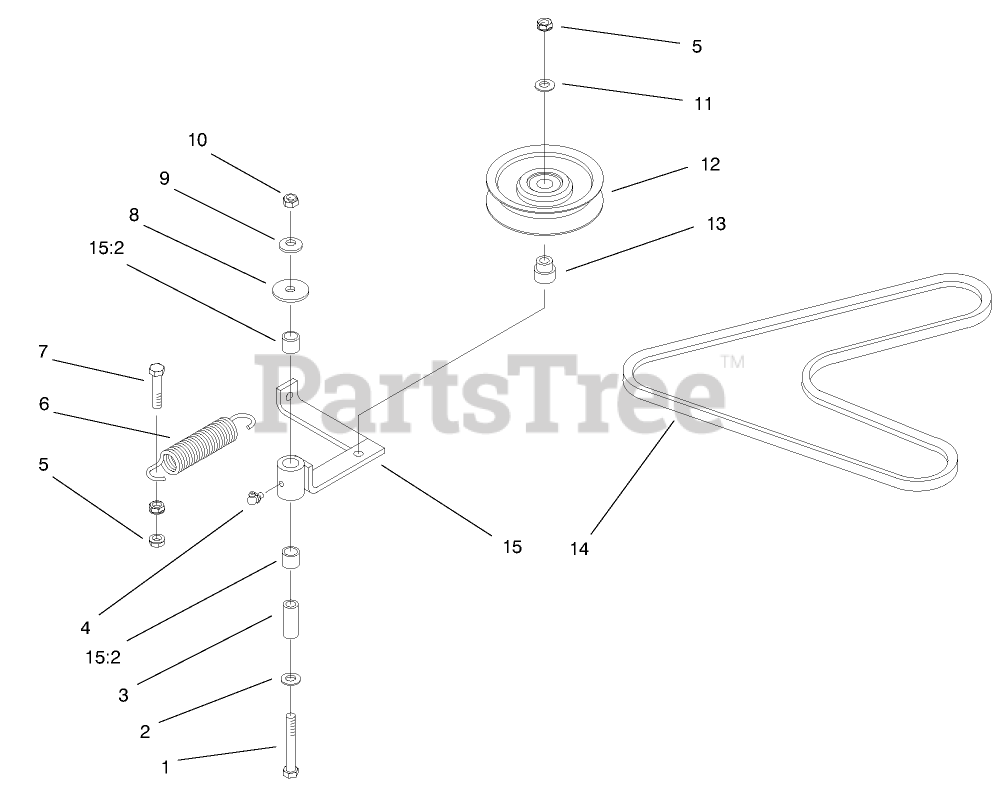

PUMP, IDLER AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 11

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro E603044

Bushing
(Superseded to 1-603044)

$14.99

$

In Stock, Qty 20+

0

4

Toro E811008

Zerk-Grease
(Superseded to 302-40)

$3.49

$

In Stock, Qty 20+

0

5

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

6

Toro E603414

Spring-Extension
(Superseded to 1-603414)

$20.99

$

In Stock, Qty 15

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro E213069

Washer
(Superseded to 1-213069)

$2.99

$

In Stock, Qty 20+

0

9

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro E603843

Pulley-Idler
(Superseded to 132-4718)

$34.99

$

In Stock, Qty 16

0

13

Toro E603496

Bushing
(Superseded to 1-603496)

$5.49

$

In Stock, Qty 20+

0

14

Toro E653283

Belt, Pump Drive
(Superseded to 1-653283)

$50.99

$

In Stock, Qty 6

0

15

Toro E654143

Idler Arm w/Bushings,Zerk
(Superseded to 103-4790)

$180.99

$

Usually ships in 3-6 days

0

15:2

Toro E513034

Bearing-Pivot
(Superseded to 1-513034)

$7.49

$

In Stock, Qty 20+

0
