74201 (Z 255) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000001 - 089999999) (1998) SHIELDS AND GUARDS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

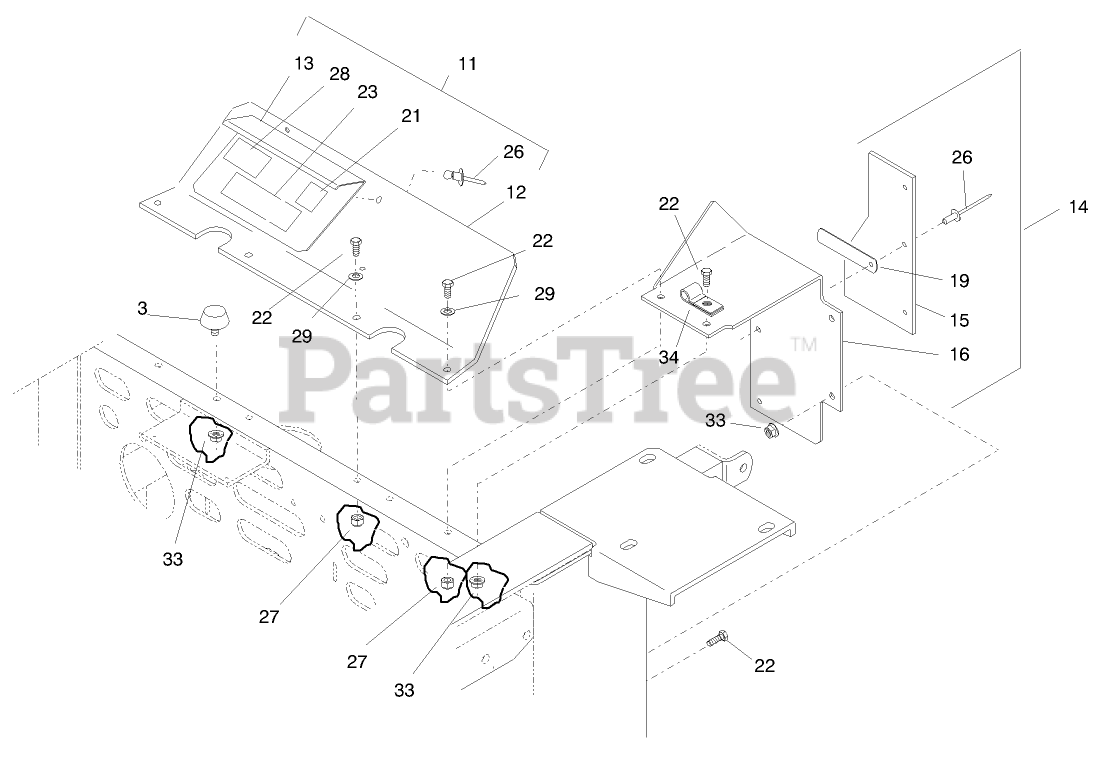

SHIELDS AND GUARDS Parts Diagram

  • Title

3

Toro E523420

Bumper
(Superseded to 1-523420)

$14.99

$

Usually ships in 3-6 days

0

11

Toro E634308

Shield-Lift ASM
(Superseded to 1-634308)

$84.99

$

Usually ships in 3-6 days

0

12

Toro E633298

Shield-Engine

$

$

Not available

13

Toro E633300

Shield-Lift
(Superseded to 1-633300-03)

$14.99

$

Usually ships in 3-6 days

0

14

Toro E634309

Shield LH
(Superseded to 1-634309)

$

$

Not available

15

Toro E633301

Shield-Engine
(Superseded to 1-633301)

$15.99

$

Usually ships in 3-6 days

0

16

Toro E633305

Baffle
(Superseded to 1-633305-03)

$

$

Not available

18

Toro E634310

Shield RH
(Superseded to 1-634310)

$

$

Not available

19

Toro E523285

Clip
(Superseded to 1-523285)

$5.49

$

Usually ships in 3-6 days

0

20

Toro E633303

Baffle-Engine
(Superseded to 1-633303-03)

$

$

Not available

21

Toro E513748

Decal-Guard
(Superseded to 1-513748)

$5.49

$

In Stock, Qty 6

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro E303517

Decal-Belt Drive
(Superseded to 1-303517)

$7.99

$

In Stock, only 4 left!

0

25

Toro 3212-10

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

26

Toro E803035

Pop Rivet
(Superseded to 1-803035)

$1.49

$

In Stock, only 2 left!

0

27

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

28

Toro E633462

Decal-Important
(Superseded to 1-633462)

$5.49

$

In Stock, only 4 left!

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0
