74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) BRAKE AND WHEEL HUB ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

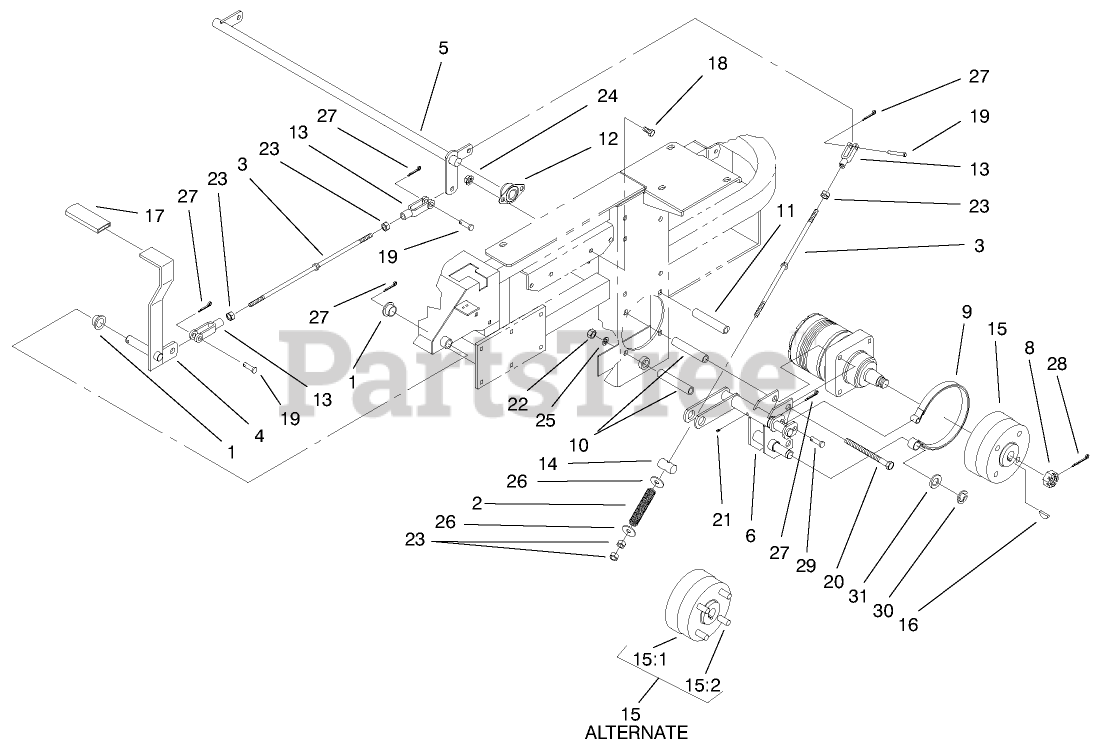

BRAKE AND WHEEL HUB ASSEMBLY Parts Diagram

  • Title
1

Toro E513140

Bearing
(Superseded to 1-513140)

$6.49

$

In Stock, Qty 8

0

2

Toro E633454

Spring-Brake
(Superseded to 1-633454)

$10.99

$

In Stock, only 1 left!

0

3

Toro E633477

Rod-Brake
(Superseded to 1-633477)

$19.99

$

In Stock, only 1 left!

0

4

Toro E632489

Lever-Brake
(Superseded to 1-632489-03)

$

$

Not available

5

Toro E632217

Shaft-Brake
(Superseded to 1-632217-03)

$168.99

$

Usually ships in 3-6 days

0

6

Toro E632714

Bracket-Brake LH
(Superseded to 1-632714-03)

$230.99

$

Usually ships in 3-6 days

0

7

Toro E632715

Bracket-Brake RH
(Superseded to 1-632715-03)

Note: Not illustrated

$

$

Not available

8

Toro E809036

Nut
(Superseded to 1-809036)

$37.99

$

In Stock, Qty 5

0

9

Toro E633693

Band-Brake
(Superseded to 1-633693)

$74.99

$

In Stock, only 2 left!

0

10

Toro E633380

Spacer
(Superseded to 1-633380)

$8.49

$

In Stock, only 1 left!

0

11

Toro E633382

Spacer
(Superseded to 1-633382)

$9.99

$

Usually ships in 3-6 days

0

12

Toro E633102

Bearing-Side Flange
(Superseded to 1-633102)

$18.99

$

In Stock, only 2 left!

0

13

Toro E633131

Yoke-Brake Linkage
(Superseded to 1-633131)

$15.99

$

In Stock, Qty 8

0

14

Toro E633144

Pin-Trunion
(Superseded to 1-633144)

$13.99

$

Usually ships in 3-6 days

0

15

Toro E633548

Hub-Wheel
(Superseded to 1-641337)

$248.99

$

In Stock, only 1 left!

0

15

Toro E634927

Hub And Drum ASM
(Superseded to 103-0590)

$178.99

$

In Stock, Qty 8

0

15:1

$

$

Currently unavailable

15:2

Toro E633926

Stud-Wheel
(Superseded to 1-633926)

$4.99

$

In Stock, Qty 19

0

16

Toro E807020

Key-Woodruff
(Superseded to 3257-42)

$6.49

$

In Stock, Qty 15

0

17

Toro E633268

Grip-Brake Lever
(Superseded to 1-633268)

$14.99

$

In Stock, Qty 5

0

18

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

19

Toro E808285

Pin-Clevis
(Superseded to 1-808285)

$3.49

$

In Stock, Qty 5

0

20

Toro 325-17

SCREW-HH

$5.99

$

In Stock, only 4 left!

0

21

Toro E811007

Fitting-Grease
(Superseded to 302-11)

$1.49

$

In Stock, only 2 left!

0

22

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

23

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

24

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

25

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

28

Toro E806800

Pin-Cotter
(Superseded to 1-806800)

$2.99

$

In Stock, Qty 20+

0

29

Toro E808283

Pin-Clevis
(Superseded to 1-808283)

$

$

Not available

30

Toro E808514

Ring-Retaining
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

31

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0
