74202 (Z 253) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099004000) (1999) TANK AND FUEL LINES ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

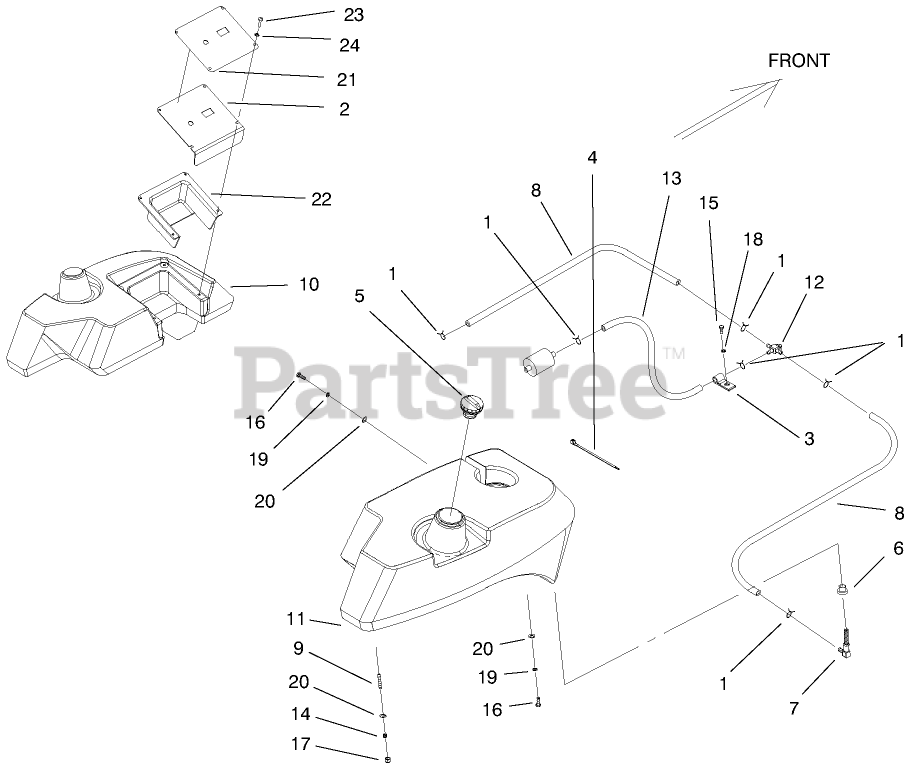

TANK AND FUEL LINES ASSEMBLY Parts Diagram

  • Title

1

Toro E303077

Clamp
(Superseded to 1-303077)

$1.49

$

In Stock, Qty 8

0

2

Toro 99-4656

PANEL-CONTROL
(Superseded to 99-4656-03)

$

$

Not available

3

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

4

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$27.99

$

In Stock, only 1 left!

0

6

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 10

0

8

Toro E543456

Fuel Line
(Superseded to 1-543456)

$

$

Not available

9

Toro E653314

Stud
(Superseded to 1-653314)

$

$

Not available

10

Toro 99-4608

TANK-FUEL, LH
(Superseded to 105-3644)

$771.99

$

Usually ships in 3-6 days

0

11

Toro 99-4607

TANK-FUEL, RH
(Superseded to 105-3643)

$771.99

$

Usually ships in 3-6 days

0

12

Toro E633347

Valve-Fuel Line
(Superseded to 1-633347)

$74.99

$

In Stock, only 3 left!

0

13

Toro E633348

Fuel Line
(Superseded to 1-633348)

$20.99

$

In Stock, only 1 left!

0

14

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

Usually ships in 3-6 days

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 99-4632

DECAL-PANEL, CONTROL

$33.99

$

Usually ships in 3-6 days

0

22

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

23

Toro E803071

Screw
(Superseded to 1-803071)

$1.49

$

In Stock, Qty 13

0

24

Toro E303435

Washer
(Superseded to 1-303435)

$1.49

$

In Stock, Qty 14
