74219 (Z 256) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) BELTS AND IDLER ARM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

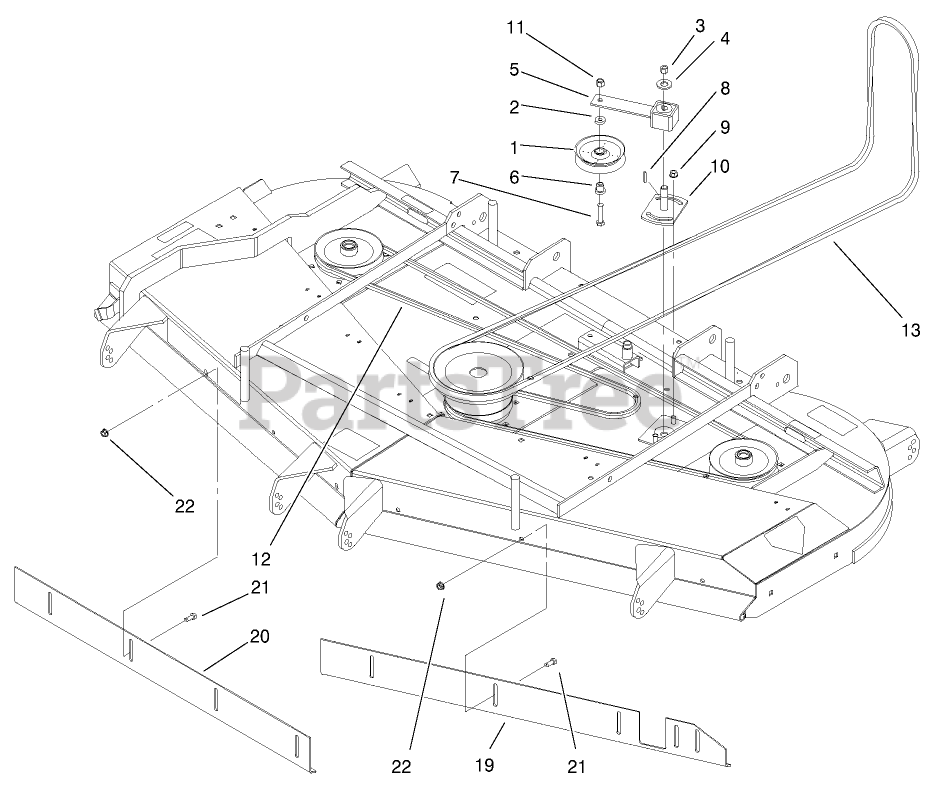

BELTS AND IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5940

PULLEY-IDLER

$36.99

$

Usually ships in 3-6 days

0

2

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

3

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

5

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$134.99

$

In Stock, only 1 left!

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 8

0

7

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-6300

PLATE-IDLER

$132.99

$

Usually ships in 3-6 days

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

12

Toro 57-0240

V-BELT (72)

$86.99

$

In Stock, only 1 left!

0

13

Toro 99-4627

V-BELT

$177.99

$

In Stock, only 3 left!

0

19

Toro 99-5156

BAFFLE-FRONT, LH
(Superseded to 99-5156-03)

$414.99

$

Usually ships in 3-6 days

0

20

Toro 93-3215

BAFFLE-FRONT, RH

$

$

Not available

21

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

22

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
