74219 (Z 256) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) TANK AND FUEL LINES ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

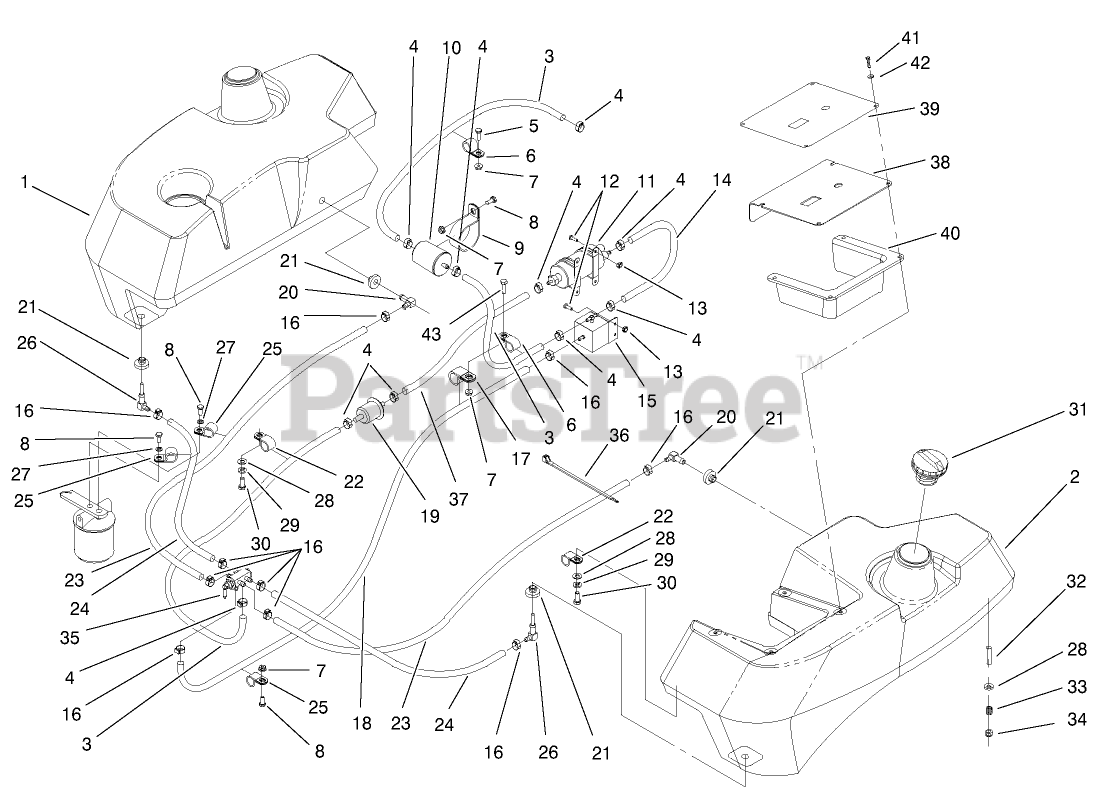

TANK AND FUEL LINES ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4312

TANK-FUEL, RH
(Superseded to 105-3641)

$794.99

$

Usually ships in 3-6 days

0

2

Toro 100-4313

TANK-FUEL, LH
(Superseded to 105-3642)

$

$

Not available

3

Toro E643238

Fuel Line
(Superseded to 1-643238)

$

$

Not available

4

Toro E643277

Clamp,Fuel Hose
(Superseded to 1-643277)

$4.99

$

Usually ships in 3-6 days

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro E603727

Clip-Loom
(Superseded to 1-603727)

$2.99

$

Usually ships in 3-6 days

0

7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

9

Toro E643241

Clip-Loom
(Superseded to 1-643241)

$18.99

$

Usually ships in 3-6 days

0

12

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro E643236

Fuel Line
(Superseded to 1-643236)

$7.99

$

Usually ships in 3-6 days

0

16

Toro E643293

Clamp
(Superseded to 1-643293)

$6.49

$

In Stock, Qty 6

0

17

Toro E643312

Clip-Loom
(Superseded to 1-643312)

$6.49

$

Usually ships in 3-6 days

0

18

Toro E643235

Fuel Line
(Superseded to 1-643235)

$27.99

$

Usually ships in 3-6 days

0

19

Toro 99-9403

FILTER-FUEL
(Superseded to 108-3831)

$10.99

$

In Stock, only 2 left!

0

20

Toro E643172

Elbow, 90
(Superseded to 1-643172)

$11.99

$

Usually ships in 3-6 days

0

21

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

22

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

23

Toro E633348

Fuel Line
(Superseded to 1-633348)

$20.99

$

In Stock, only 1 left!

0

24

Toro E543456

Fuel Line
(Superseded to 1-543456)

$12.99

$

In Stock, Qty 7

0

25

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

26

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 20+

0

27

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 93-3101

CAP-FUEL
(Superseded to 115-5304)

$27.99

$

In Stock, Qty 8

0

32

Toro E633023

Stud
(Superseded to 1-633023)

$6.49

$

In Stock, only 3 left!

0

33

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, Qty 9

0

34

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

35

Toro E643234

Valve-Fuel Line
(Superseded to 1-643234)

$217.99

$

In Stock, only 1 left!

0

36

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

37

Toro E643239

Fuel Line

$

$

Currently unavailable

38

Toro 99-4656

PANEL-CONTROL
(Superseded to 99-4656-03)

$

$

Not available

39

Toro 99-4632

DECAL-PANEL, CONTROL

$33.99

$

Usually ships in 3-6 days

0

40

Toro 99-4940

SHIELD-PANEL, CONTROL

$83.99

$

Usually ships in 3-6 days

0

41

Toro E803071

Screw
(Superseded to 1-803071)

$1.49

$

In Stock, Qty 20+

0

42

Toro E303435

Washer
(Superseded to 1-303435)

$1.49

$

In Stock, Qty 20+

0

43

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
