74249 (Z 500) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) FUEL TANK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

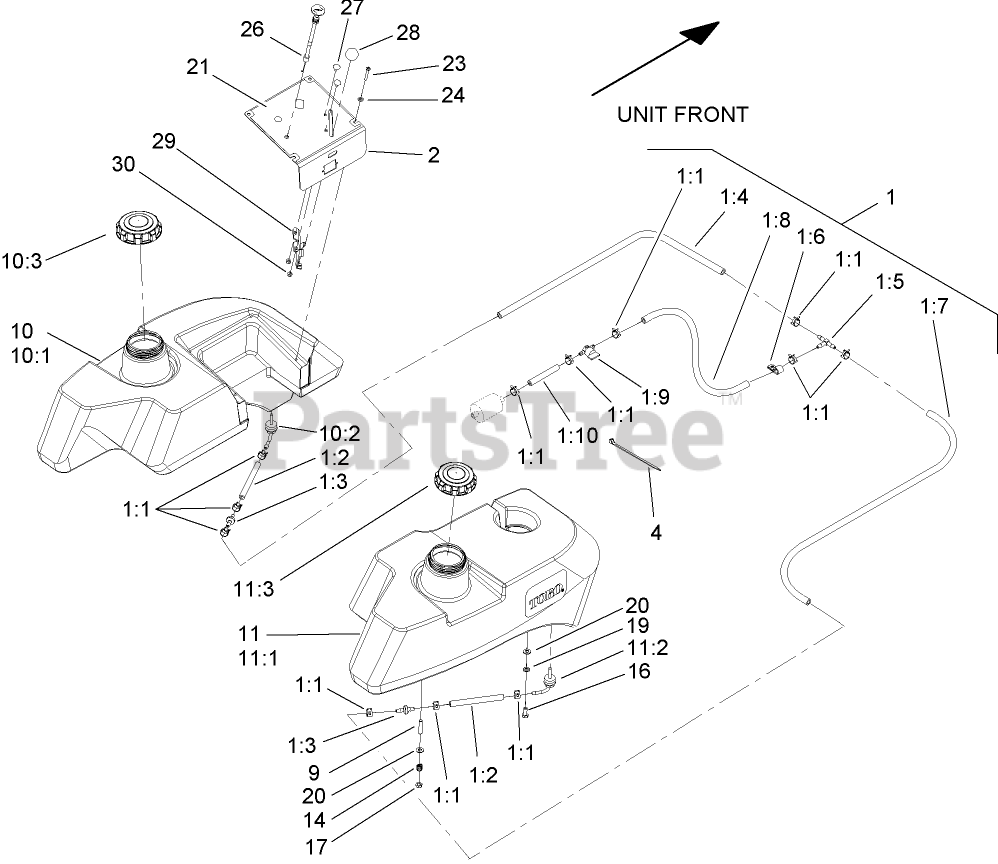

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9285

FUEL LINE ASM

$

$

Not available

1:1

Toro 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

1:2

Toro 109-0678

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, Qty 13

0

1:4

Toro 109-0305

HOSE-FUEL
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

1:5

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 3 left!

0

1:6

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

1:7

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 9

0

1:8

Toro 110-5702

HOSE-FUEL

$24.99

$

Usually ships in 3-6 days

0

1:9

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 16

0

1:10

Toro 109-0660

HOSE-FUEL

$3.99

$

In Stock, only 4 left!

0

2

Toro 107-8079-03

PANEL-CONTROL
(Superseded to 110-3886)

$215.99

$

Usually ships in 3-6 days

0

4

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

Toro 1-633023

STUD

$6.49

$

In Stock, only 3 left!

0

10

Toro 105-3644

LH FUEL TANK KIT

$771.99

$

Usually ships in 3-6 days

0

10:1

TANK ASM

Note: Not serviced separately

$

$

Not available

10:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

10:3

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 14

0

11

Toro 105-3643

RH FUEL TANK KIT

$771.99

$

Usually ships in 3-6 days

0

11:1

TANK ASM

Note: Not serviced separately

$

$

Not available

11:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, Qty 11

0

11:3

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 14

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 9

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 106-9969

Decal-Panel, Control

$

$

Not available

23

Toro 3251-1

SCREW-PPH

$10.99

$

In Stock, Qty 6

0

24

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

26

Toro 106-9962

Control-Choke, Push / Pull

$75.99

$

In Stock, only 1 left!

0

27

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 18

0

28

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 20+

0

29

Toro 107-8073

CABLE-THROTTLE

$66.99

$

In Stock, Qty 6

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
