74258 (Z 288 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) DECK CONNECTION ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

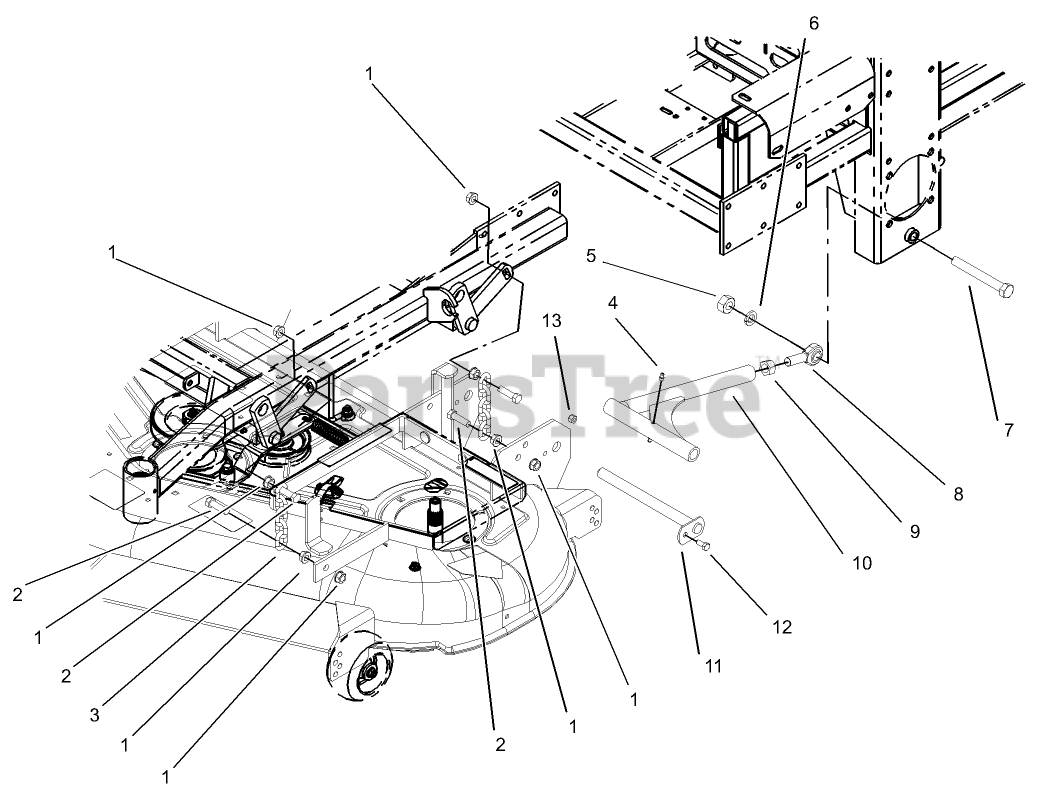

DECK CONNECTION ASSEMBLY Parts Diagram

  • Title
1

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 19

0

2

Toro 1-800811

SCREW-CAP, HH

$11.99

$

In Stock, only 3 left!

0

3

Toro 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

5

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

6

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 327-11

SCREW-HH

$11.99

$

In Stock, Qty 13

0

8

Toro 1-633029

BALLJOINT-SPHERICAL

$64.99

$

In Stock, Qty 12

0

9

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

10

Toro 103-1072-01

STRUT
(Superseded to 109-1181)

$100.99

$

In Stock, Qty 9

0

11

Toro 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
