74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) TRACTION DRIVE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

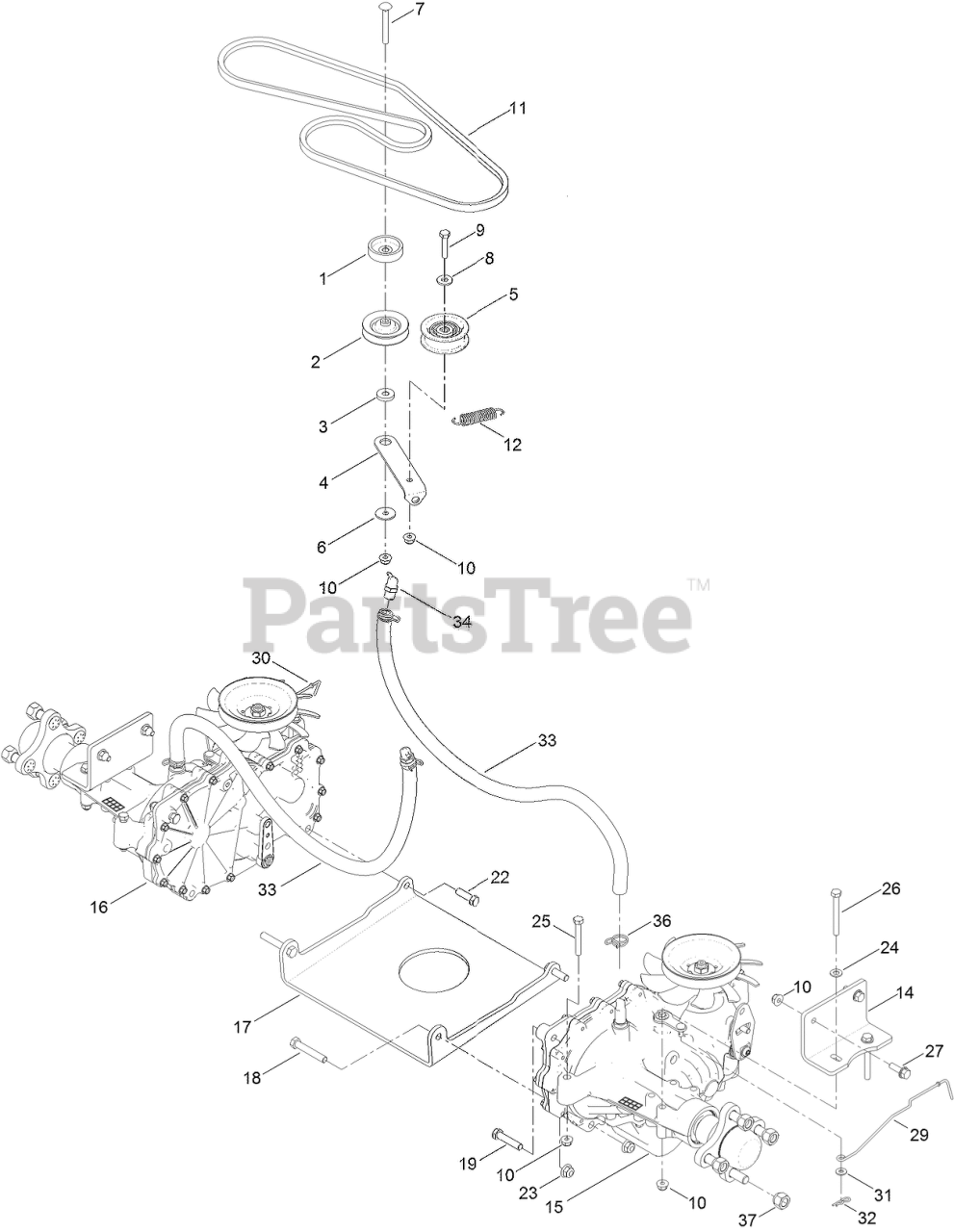

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3353

SPACER

$11.99

$

In Stock, Qty 8

0

2

Toro 119-8822

PULLEY-IDLER

$26.99

$

In Stock, Qty 20+

0

3

Toro 119-3327

SPACER-ARM, IDLER

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, Qty 12

0

5

Toro 106-2176

PULLEY-IDLER

$33.99

$

In Stock, Qty 20+

0

6

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

7

Toro 3230-8

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

8

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 130-6976

V-BELT
(Superseded to 130-6976-SL)

$37.99

$

In Stock, only 2 left!

0

12

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

14

Toro 121-0745-01

MOUNT-HYDRO

$33.99

$

Usually ships in 3-6 days

0

15

Toro 130-6960

LH HYDRO TRANSMISSION ASM
(Superseded to 140-5190)

$1611.99

$

Usually ships in 3-6 days

0

16

Toro 130-6961

RH HYDRO TRANSMISSION ASM
(Superseded to 140-5191)

$1611.99

$

Usually ships in 3-6 days

0

17

Toro 130-0718-01

PLATE-CROSS, HYDRO

$69.99

$

Usually ships in 3-6 days

0

18

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 11

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 17

0

27

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

29

Toro 130-7048

ROD-BYPASS, LH

$8.99

$

Usually ships in 3-6 days

0

30

Toro 130-7047

ROD-BYPASS, RH

$8.99

$

Usually ships in 3-6 days

0

31

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

33

Toro 136-4182

HOSE-HYDRO

$25.99

$

In Stock, only 2 left!

0

34

Toro 136-4183

BREATHER KIT

$14.99

$

In Stock, only 2 left!

0

35

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

36

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 13

0

37

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0
