74901 (5000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) BLOWER HOUSING ASSEMBLY KOHLER CV680-3020 Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

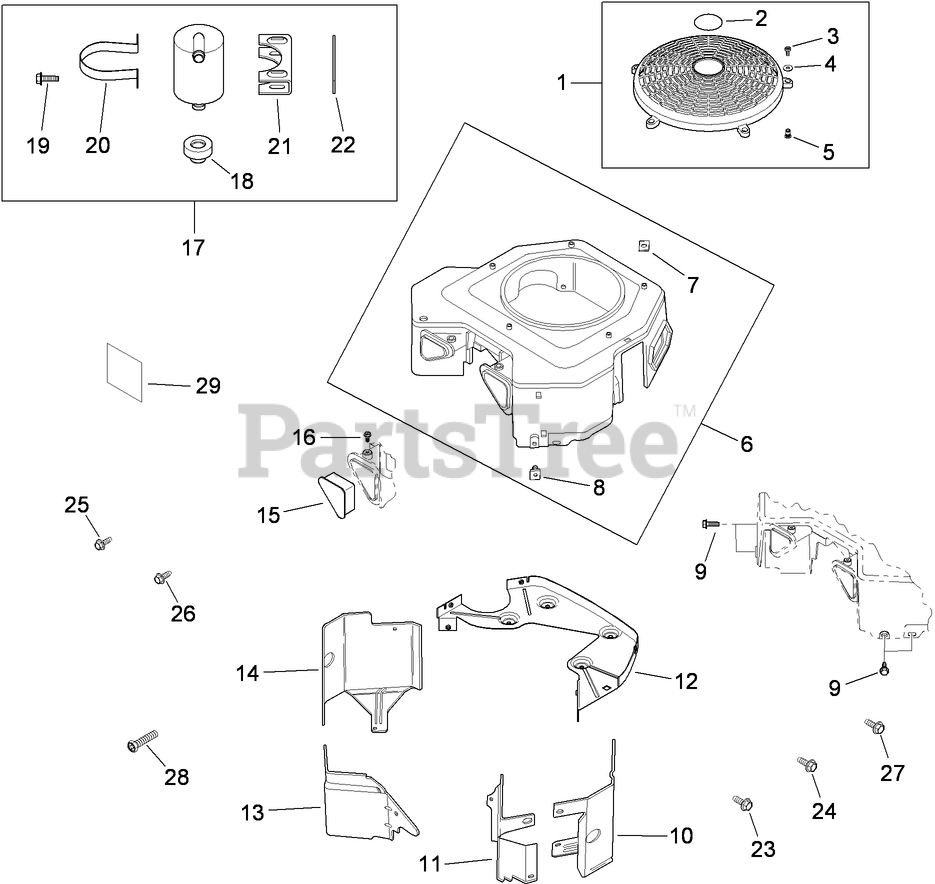

BLOWER HOUSING ASSEMBLY KOHLER CV680-3020 Parts Diagram

  • Title

1

Kohler 24 755 81-S

FIXED GUARD KIT (INCLUDES 2-5)

Note: Obtain parts from www.kohlerplus.com

$52.99

$

In Stock, only 2 left!

0

2

Kohler 24 113 18-S

DECAL-SCREEN, GRASS
(Superseded to 24 113 499-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 160-S

SCREW-SEMS

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 4 left!

0

4

Kohler 24 468 10-S

Washer-plain (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 4 left!

0

6

Kohler 24 027 91-S

BLOWER HOUSING KIT (INCLUDES 7, 8)
(Superseded to 24 027 443-S)

Note: Obtain parts from www.kohlerplus.com

$153.99

$

Usually ships in 2-5 days

0

7

Kohler 25 100 37-S

NUT-PLASTIC (BLACK)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

8

Kohler 24 100 02-S

NUT-PLASTIC

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

10

Kohler 24 063 39-S

Baffle-Barrel, Cylinder (No. 2 Side) USE 24 063 76-S BAFFLE
(Superseded to 24 063 88-S)

Note: Obtain parts from www.kohlerplus.com

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 90-S

BAFFLE-VALLEY, CYLINDER (NO.2 SIDE)
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 1 left!

0

12

Kohler 24 146 55-S

PLATE-BACKING
(Superseded to 24 146 59-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 2 left!

0

13

Kohler 24 063 89-S

BAFFLE-VALLEY, CYLINDER (NO.1 SIDE)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 3 left!

0

14

Kohler 24 063 45-S

BARREL-CYLINDER (NO.1 SIDE)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

Usually ships in 2-5 days

0

15

Kohler 24 096 17-S

COVER-HOUSING, BLOWER
(Superseded to 24 096 160-S)

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, only 2 left!

0

16

Kohler 25 086 91-S

Screw-WSH HD Tap (8-18X.50)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

17

Kohler 24 755 57-S

BREATHER SEPARATOR KIT (INCLUDES 18-22)
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, only 2 left!

0

18

Kohler 25 313 03-S

GROMMET-RUBBER

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 8

0

19

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

20

Kohler 24 445 02-S

STRAP-BREATHER
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, only 2 left!

0

21

Kohler 24 126 44-S

BRACKET-SEPARATOR, BREATHER

Note: Obtain parts from www.kohlerplus.com

$5.49

$

Usually ships in 2-5 days

0

22

Kohler 24 112 12-S

Spacer
(Superseded to 24 755 241-S)

Note: Obtain parts from www.kohlerplus.com

$90.99

$

In Stock, only 2 left!

0

23

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

24

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

25

Kohler M-561016-S

SCREW-FLANGE, THREAD FORMING (M5X.80X16)
(Superseded to M-545016-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 15

0

26

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

27

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 20+

0

28

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

29

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, only 3 left!

0
