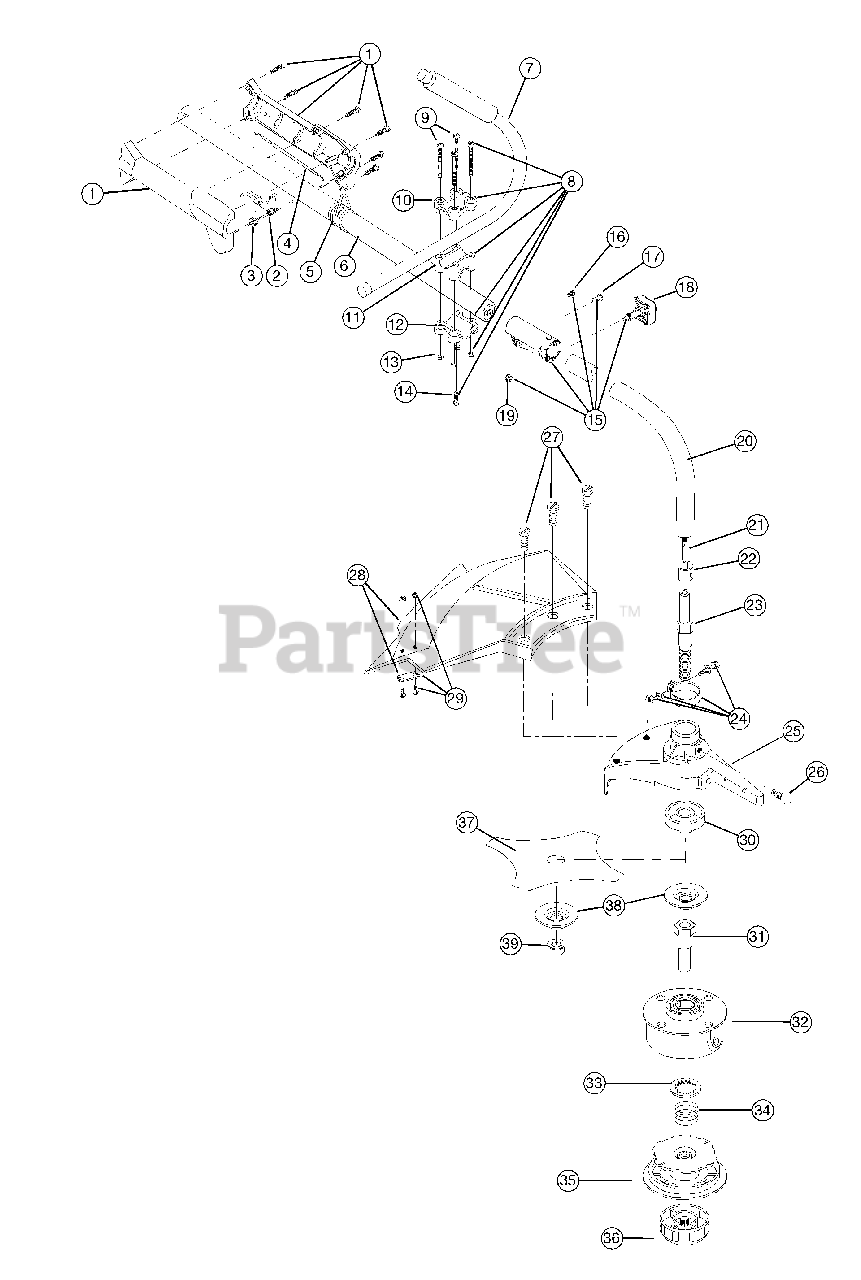

750r (41AD750E034) - Ryobi String Trimmer Trimmer Parts Diagram

String Trimmer

Trimmer Parts Diagram

  • Title

1

MTD 791-182079

Throttle Housing & Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-181556

Throttle Trigger
(Superseded to 791-181807)

$9.49

$

In Stock, Qty 9

0

3

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

4

MTD 791-182068

Throttle Cable Assembly

$19.99

$

In Stock, only 2 left!

0

5

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

6

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

7

MTD 791-181099

J-Handle Assembly

$

$

Not available

8

MTD 791-683295B

Handle Bracket Assembly

Note: (includes 9-14)

$

$

Currently unavailable

9

MTD 791-181811

Screws

$4.49

$

Usually ships in 3-6 days

0

10

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

11

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

12

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

14

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

15

MTD 791-181616B

EZ-Link Coupler
(Superseded to 753-1190)

Note: (includes 16-19)

$21.99

$

In Stock, Qty 6

0

16

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

17

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

18

MTD 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

19

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

20

MTD 791-180733

Lower Drive Shaft Housing Assembly

$

$

Not available

21

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

In Stock, only 1 left!

0

22

MTD 791-181578

Retainer Sleeve

Note: (includes 26)

$

$

Not available

23

MTD 791-180724

Output Shaft

$

$

Not available

24

MTD 791-153597

Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

25

MTD 791-153598

Bearing Housing Assembly

$

$

Not available

26

MTD 791-180288

Mounting Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

27

MTD 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

28

MTD 791-683299

Shield and Blade Assembly

Note: (includes 29)

$

$

Not available

29

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

30

MTD 791-147006

Shaft Bushing

$

$

Not available

31

MTD 791-145896

Spool Shaft

$

$

Not available

32

MTD 791-153599

Outer Spool

Note: (includes 33)

$

$

Not available

33

MTD 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

34

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

35

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

36

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 20+

0

37

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

48

MTD 791-612023

Retaining Washer

$

$

Not available

49

MTD 791-145895

Nut

$

$

Not available

MTD 791-180015B

Blade Retaining Kit

Note: (includes 38 & 39); Not Shown

$

$

Not available

MTD 791-613226

Locking Rod Tool

Note: Not Shown

$13.99

$

Usually ships in 3-6 days

0

MTD 791-682075B

Shoulder Harness

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD 791-610375

Replacement Line, 0.080 Diameter

Note: Optional Accessory; Not Shown

$

$

Not available

MTD 791-153577B

Reel and Line Assembly

Note: Optional Accessory; Not Shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-153700

Bump Head Assembly

Note: (includes 31-36); Optional Accessory; Not Shown

$

$

Not available
