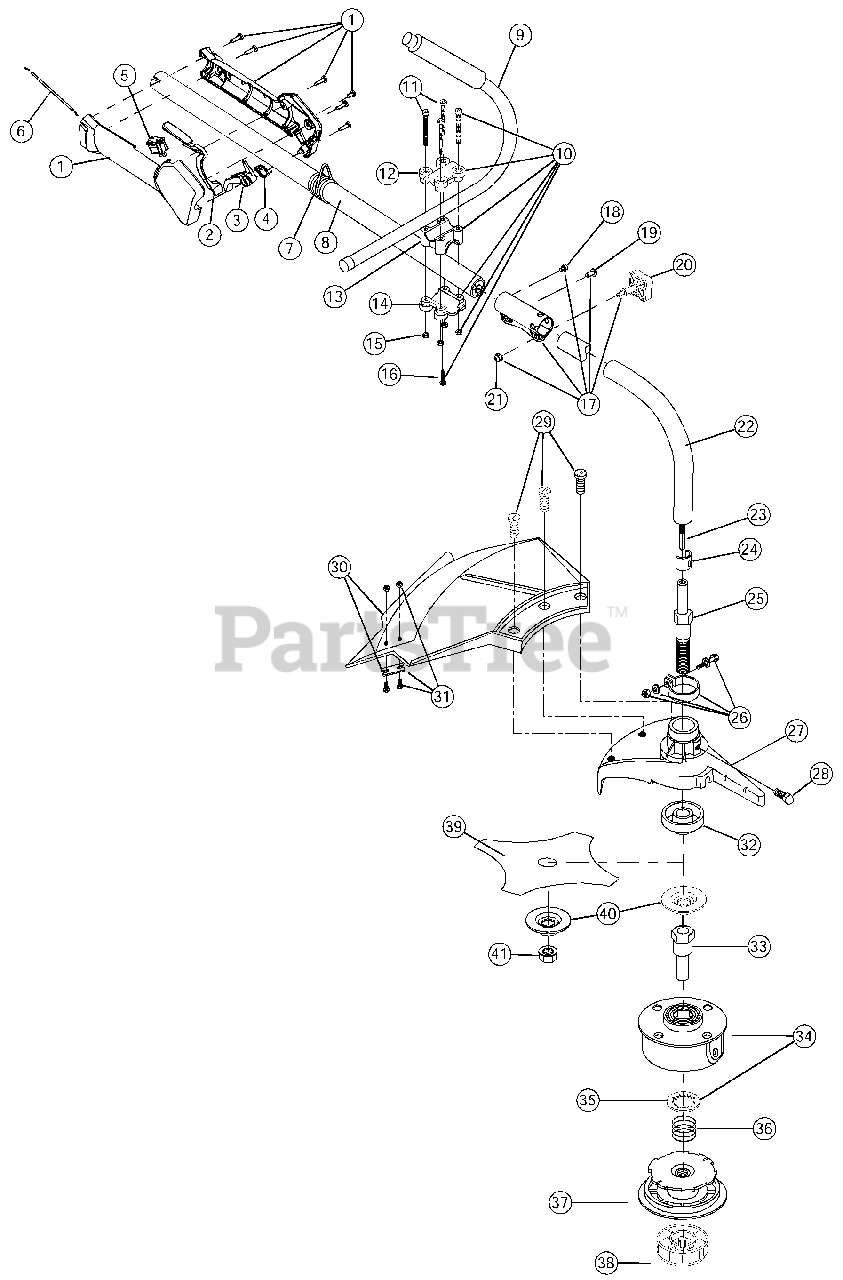

750r (41BD750A034) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 791-182801

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

MTD 791-182802

Throttle Trigger Lock-Out
(Superseded to 753-04340)

$

$

Not available

3

MTD 791-182803

Throttle Trigger
(Superseded to 753-04119)

$6.99

$

In Stock, Qty 20+

0

4

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 17

0

5

MTD 791-182405

Switch Assembly

$9.99

$

In Stock, Qty 20+

0

6

MTD 753-04278

Throttle Cable Assembly
(Superseded to 746-04085A)

$9.99

$

In Stock, only 3 left!

0

7

MTD 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

8

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

9

MTD 791-181099

J-Handle Assembly

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 11-16)

$42.99

$

Usually ships in 3-6 days

0

11

MTD 791-181811

Screws

$4.49

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$11.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.49

$

Usually ships in 3-6 days

0

15

MTD 791-181815

Nut

$3.99

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

17

MTD 791-181616

EZ-Link Coupler

Note: (includes 18-21)

$

$

Currently unavailable

18

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

19

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

20

MTD 791-181618

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

21

MTD 791-181886

Knob Retaining Nut

$3.49

$

In Stock, only 4 left!

0

22

MTD 791-180733

Lower Drive Shaft Housing Assembly

$

$

Not available

23

MTD 791-181852

Lower Flexible Drive Shaft

$58.99

$

Usually ships in 3-6 days

0

24

MTD 791-181578

Retainer Sleeve

Note: (includes 28)

$

$

Not available

25

MTD 791-180724

Output Shaft

$

$

Not available

26

MTD 791-153597

Clamp Assembly

$15.99

$

Usually ships in 3-6 days

0

27

MTD 791-153598

Bearing Housing Assembly

$

$

Not available

28

MTD 791-180288

Mounting Bolt
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

29

MTD 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

30

MTD 791-683299

Shield and Blade Assembly

Note: (includes 31)

$

$

Not available

31

MTD 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

32

MTD 791-147006

Blade Driver

$

$

Not available

33

MTD 791-145896

Spool Shaft

$

$

Not available

34

MTD 791-153599

Outer Spool

Note: (includes 35)

$

$

Not available

35

MTD 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

36

MTD 791-610317

Spring
(Superseded to 791-610317B)

$10.99

$

In Stock, Qty 20+

0

37

MTD 791-610318

Inner Reel
(Superseded to 753-1155)

$21.99

$

In Stock, Qty 20+

0

38

MTD 791-153066

Bump Head Knob Assembly
(Superseded to 791-153066B)

$13.99

$

In Stock, Qty 20+

0

39

MTD 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, Qty 9

0

40

MTD 791-612023

Retaining Washer

$

$

Not available

41

MTD 791-145895

Nut

$

$

Not available

MTD 791-180015

Blade Retaining Kit

Note: (includes 40 & 41); Item not shown

$

$

Not available

MTD 791-613226

Locking Rod Tool

Note: Item not shown

$13.99

$

Usually ships in 3-6 days

0

MTD 791-682075

Shoulder Harness
(Superseded to 791-682075B)

Note: Item not shown

$36.99

$

Usually ships in 3-6 days

0

MTD 610375

Replacement Line, 0.080 Diameter

Note: Optional Accessory; Item not shown

$

$

Currently unavailable

MTD 153577

Reel and Line Assembly

Note: Optional Accessory; Item not shown

$

$

Currently unavailable

MTD 153700

Bump Head Assembly

Note: (includes 33-38); Optional Accessory; Item not shown

$

$

Not available
