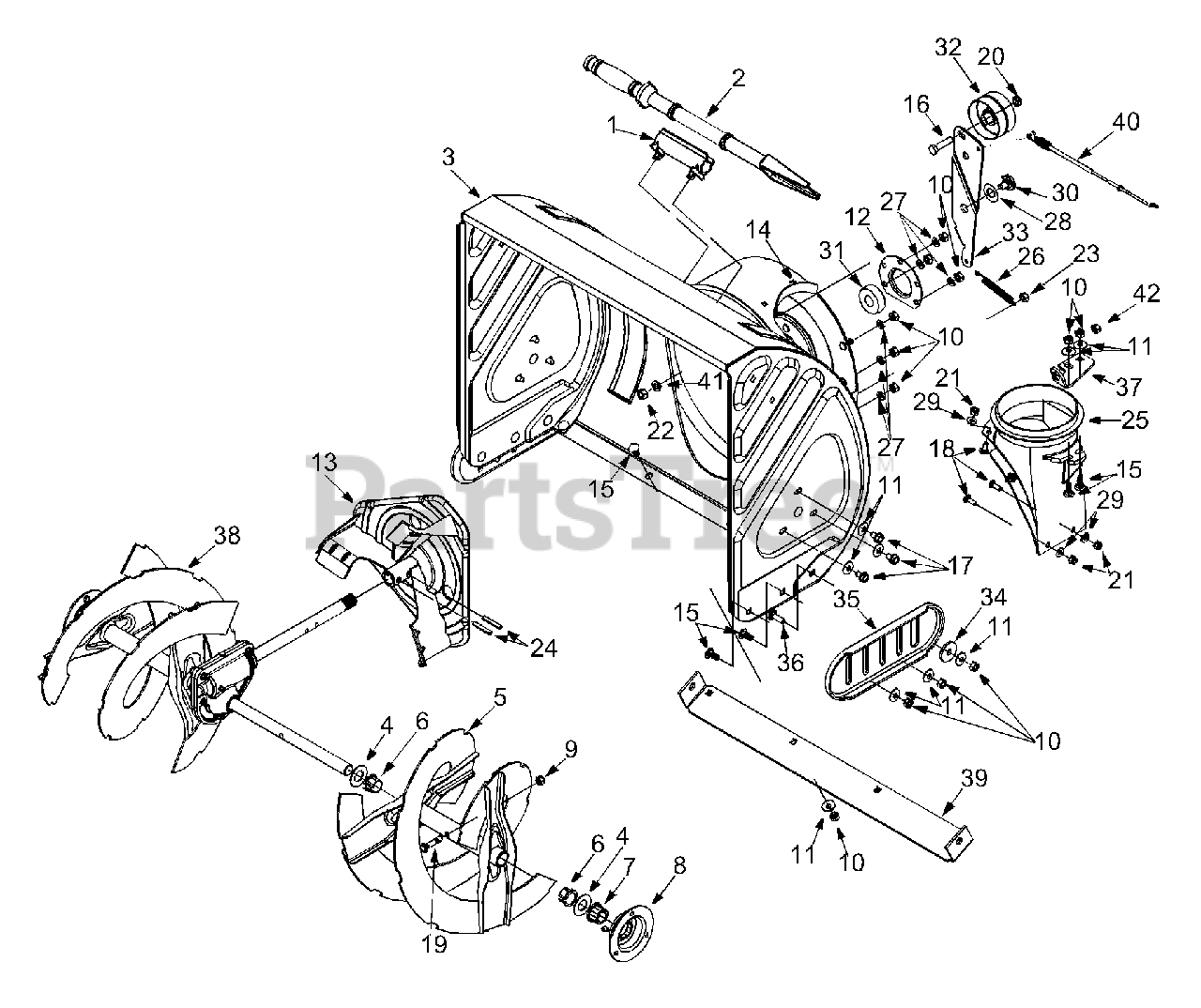

7524 (31AS6R72101) - Troy-Bilt Storm 24" Snow Thrower (2004) General Assembly Parts Diagram

Storm 24" Snow Thrower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 731-2635

Mount, Chute Clean-out Tool
(Superseded to 731-11421)

$11.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 731-2643

Chute Clean-out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 7

0

3

Troy-Bilt 684-04002

26" Housing Assembly
(Superseded to 684-04002-0638)

Variations

Troy-Bilt 684-04002-0638

HOUSING ASM-26" TB - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 684-04001

24" Housing Assembly

Variations

Troy-Bilt 684-04001-0638

24" AUGER HOUSING - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

Troy-Bilt 736-0188

Flat Washer .76 x 1.49

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 605-5193A

26" Spiral Assembly LH
(Superseded to 684-04183-0637)

Variations

Troy-Bilt 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

Troy-Bilt 605-5189A

24" Spiral Assembly LH
(Superseded to 684-04181-0637)

Variations

Troy-Bilt 605-5189A-0637

Auger Spiral Assembly, LH 24" - POWDER BLACK (0637)

$178.99

$

In Stock, only 1 left!

0

$178.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 784-0399

Bearing Housing
(Superseded to 784-5618A-0637)

$13.99

$

In Stock, Qty 8

0

9

Troy-Bilt 712-0429

Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 05931A

Housing

$10.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

Troy-Bilt 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 2 left!

0

Troy-Bilt 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 2 left!

0

$90.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 705-5226

Reinforcement Chute

Variations

Troy-Bilt 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

Troy-Bilt 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 10

0

17

Troy-Bilt 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0116

Lock Jam 3/8-24

$4.99

$

In Stock, Qty 7

0

21

Troy-Bilt 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

24

Troy-Bilt 715-0114

Pin

$9.49

$

In Stock, Qty 9

0

25

Troy-Bilt 731-1379C

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0167

Flat Washer .565 x 1.25 x .02
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 7

0

30

Troy-Bilt 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

In Stock, Qty 6

0

32

Troy-Bilt 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 784-5632B

Auger Idler Brkt.
(Superseded to 984-0064-0637)

Variations

Troy-Bilt 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 736-0320

Flat Washer .38 x 1.38

$6.99

$

In Stock, Qty 8

0

35

Troy-Bilt 784-5038B

Skid Shoe
(Superseded to 784-5038B-0637)

Variations

Troy-Bilt 784-5038B-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5038B-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$27.99

$

In Stock, Qty 20+

0

$27.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 710-0276

Carriage Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 784-5647

Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

Troy-Bilt 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 8

0

$14.99

$

In Stock, Qty 8

0

38

Troy-Bilt 605-5192A

26" Spiral Assembly RH
(Superseded to 684-04182-0637)

Variations

Troy-Bilt 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

Troy-Bilt 605-5188A

24" Spiral Assembly RH
(Superseded to 684-04180-0637)

Variations

Troy-Bilt 605-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

$

$

39

Troy-Bilt 784-5579A

26" Shave Plate
(Superseded to 790-00121-0637)

Variations

Troy-Bilt 784-5579A-0629

Shave Plate, 26" Powder Black - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0638

Shave Plate, 26" Powder Black - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0667

Shave Plate, 26" Powder Black - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0689

Shave Plate, 26" Powder Black - POLO GREEN (0689)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0691

Shave Plate, 26" Powder Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5579A-0692

Shave Plate, 26" Powder Black - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 12

0

$36.99

$

In Stock, Qty 12

0

Troy-Bilt 784-5581A

24" Shave Plate
(Superseded to 790-00120-0637)

Variations

Troy-Bilt 784-5581A-0637

Shave Plate, 24" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5581A-0662

Shave Plate, 24" Powder Black - OYSTER GRAY (0662)

$34.99

$

In Stock, Qty 20+

0

Troy-Bilt 784-5581A-0687

Shave Plate, 24" Powder Black - PINE GREEN (0687)

$34.99

$

In Stock, Qty 20+

0

$34.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0
