7524 RS (1696266-00) - Murray 24" Snow Thrower, 7.5hp (2012) Transmission SERVICE PARTS - General Transmission H0 (1753927) Parts Diagram

24" Snow Thrower, 7.5hp

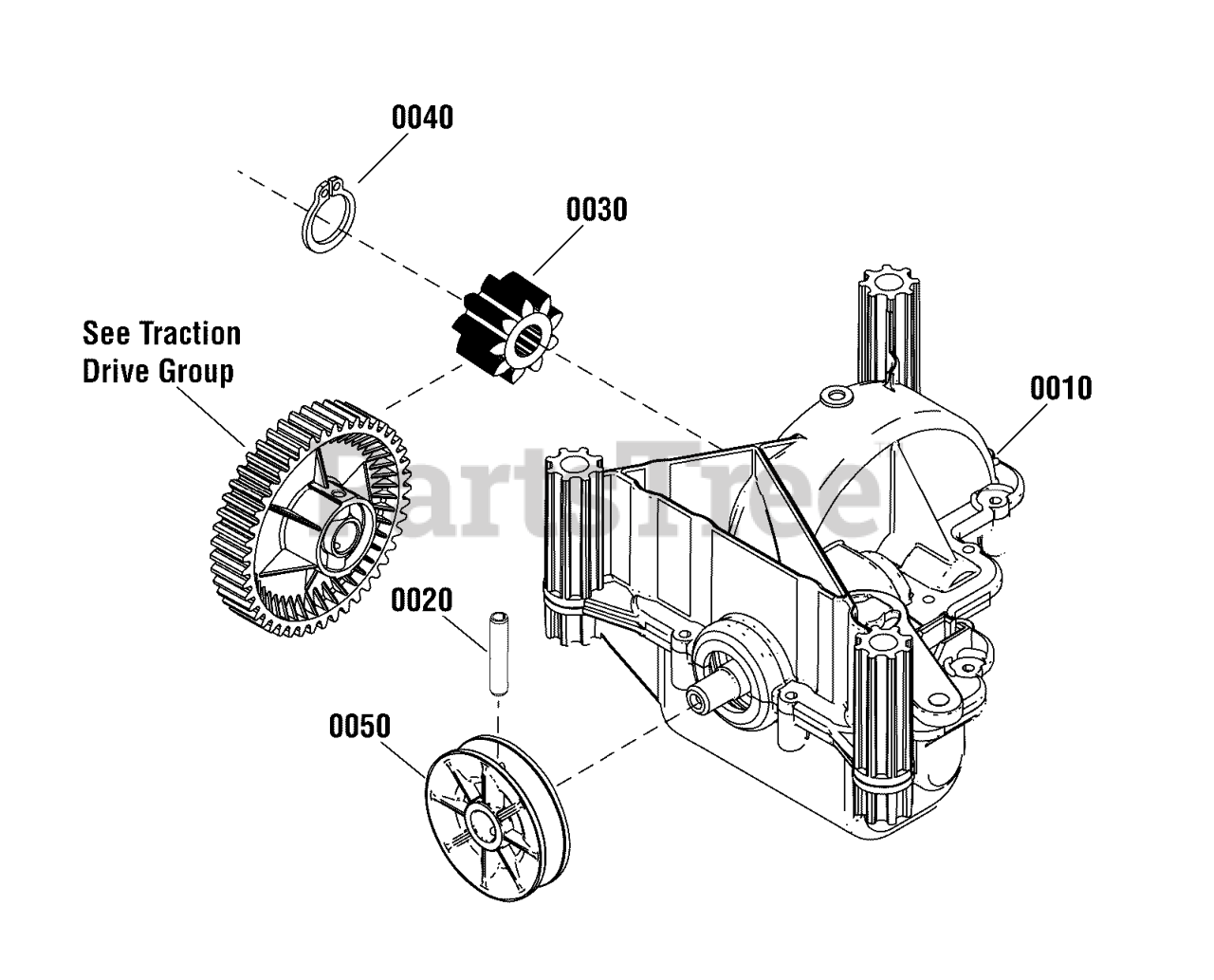

Transmission SERVICE PARTS - General Transmission H0 (1753927) Parts Diagram

  • Title

0010

* GEAR BOX, Transmission

$

$

Not available

0020

Murray 1754944YP

PIN, Roll

$

$

Currently unavailable

0030

Murray 1755314YP

GEAR, 9 Tooth, GT H0

$9.49

$

Usually ships in 2-12 days

0

0040

Murray 1755315YP

RING, Retaining

$3.49

$

Usually ships in 2-12 days

0

0050

Murray 1754943YP

PULLEY, Driven, GT H0

$17.99

$

Usually ships in 2-12 days

0
