7530 (54AF45F-710) - Cub Cadet Compact Tractor Air Cleaner Parts Diagram

Compact Tractor

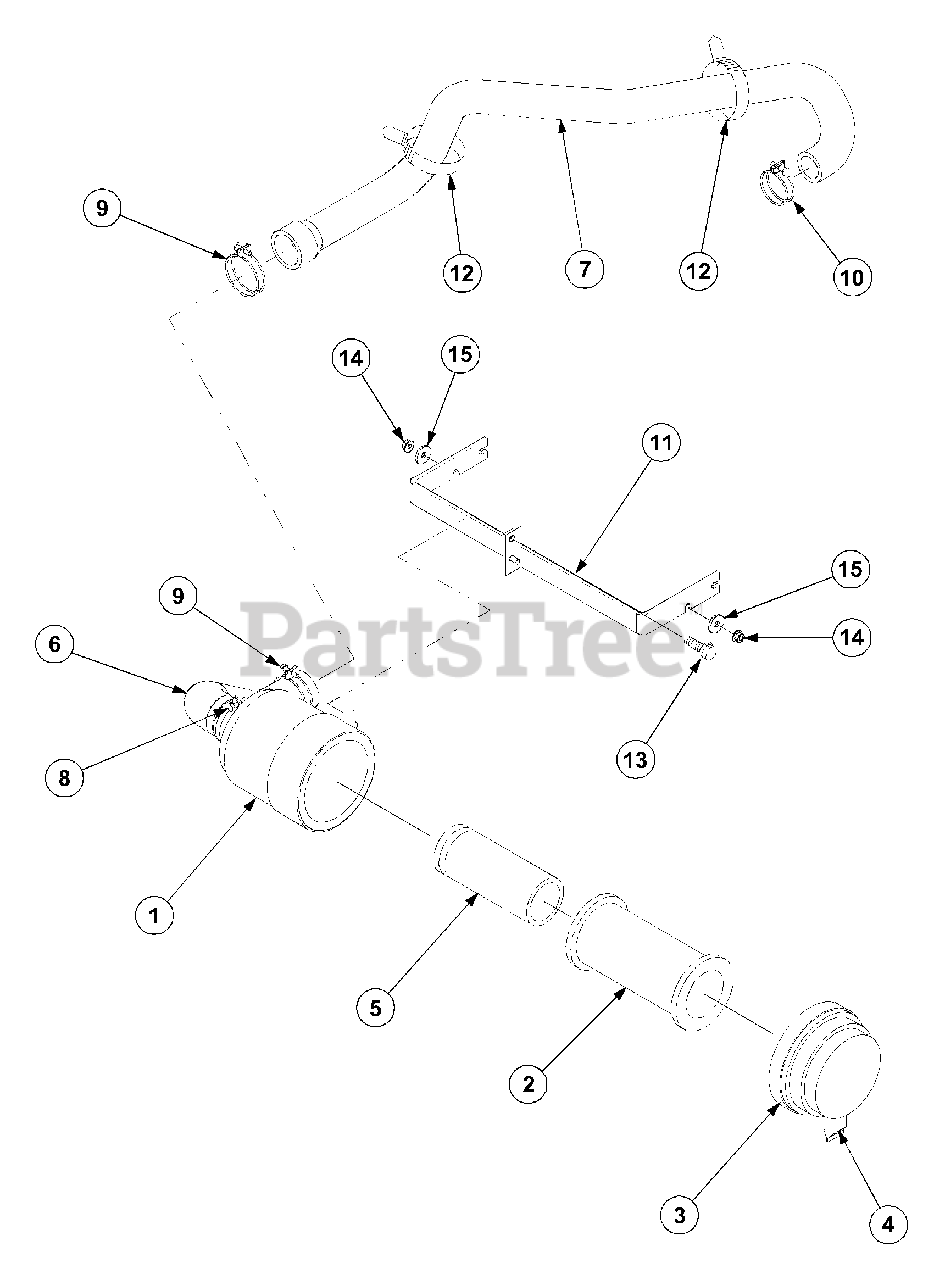

Air Cleaner Parts Diagram

  • Title

Cub Cadet MA-19690531000

Air Cleaner Assembly

Note: Includes 1-5

$

$

Not available

1

Cub Cadet MA-10400511100

Body Assy

$

$

Currently unavailable

2

Cub Cadet MA-10400511200

Element Assy

$178.99

$

Usually ships in 3-6 days

0

3

Cub Cadet MA-10400511300

Cover Assy

$

$

Not available

4

Cub Cadet MA-35460501400

Valve,Unloader

$

$

Not available

5

Cub Cadet MA-19690531100

Element,Inner

$141.99

$

Usually ships in 3-6 days

0

6

Cub Cadet MA-19570512000

Hose,Air

$

$

Not available

7

Cub Cadet MA-19560512000

Hose,Air

$

$

Not available

8

Cub Cadet MA-00501100630

Clamp,hose

$

$

Not available

9

Cub Cadet MA-00501100600

Clamp Hose

$

$

Not available

10

Cub Cadet MA-00501100480

Clamp,hose

$

$

Not available

11

Cub Cadet MA-19570515000

Bracket

$

$

Not available

12

Cub Cadet MA-00511070070

Band,Wire

$

$

Not available

13

Cub Cadet MA-H1540108020

Bolt,w/Washer

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-F3010108000

Nut,Flange

$2.49

$

In Stock, only 3 left!

0

15

Cub Cadet MA-03500160826

Washer

$

$

Not available
