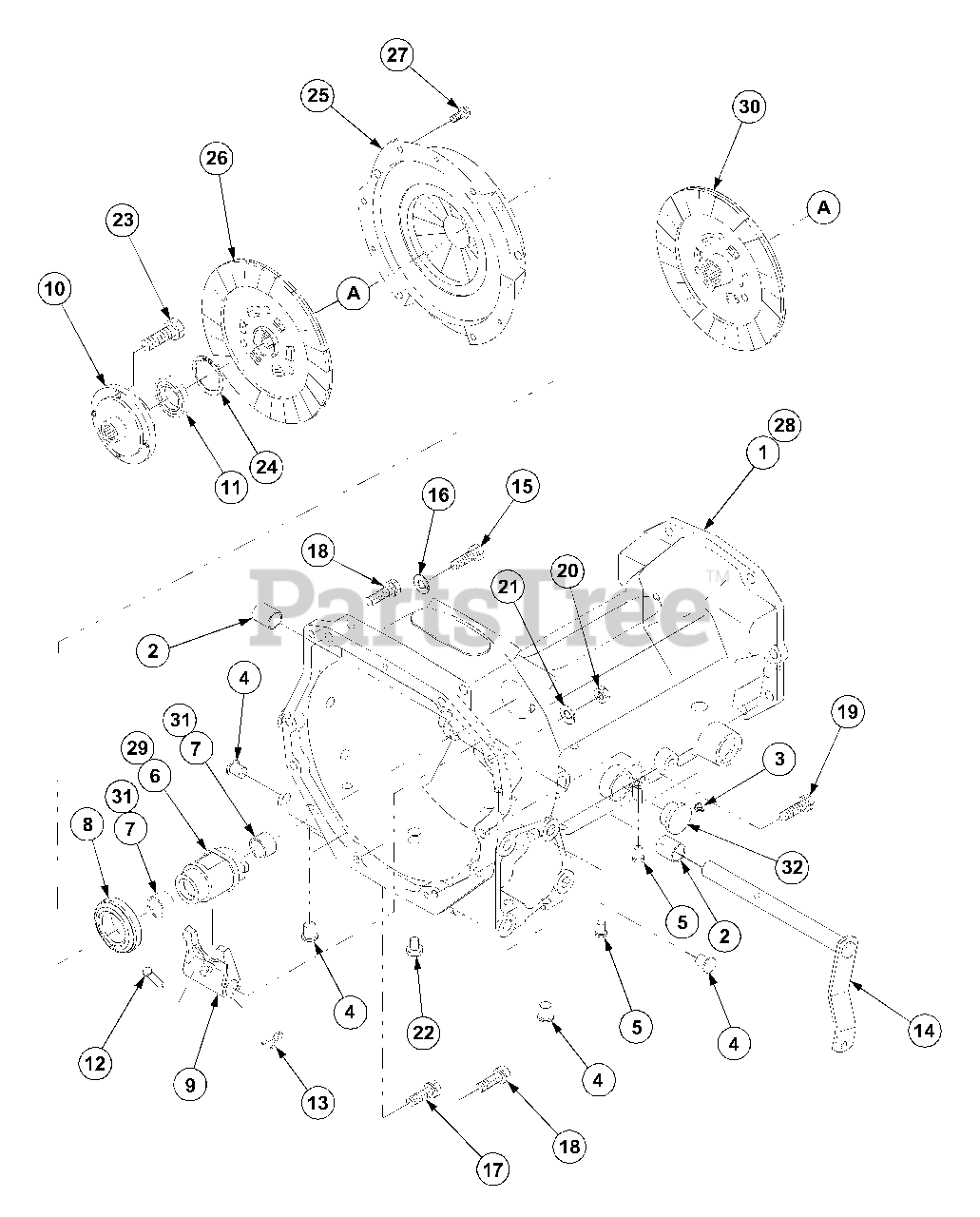

7530 (54AF45F-710) - Cub Cadet Compact Tractor Clutch Housing & Clutch Parts Diagram

Compact Tractor

Clutch Housing & Clutch Parts Diagram

  • Title

1

Cub Cadet MA-19571001AG0

Housing,Clutch

$

$

Not available

2

Cub Cadet MA-07961020250

Bushing

$

$

Not available

3

Cub Cadet MA-27613733000

Cap

$

$

Not available

4

Cub Cadet MA-05534-14000

Plug

$

$

Not available

5

Cub Cadet MA-05534-10000

Plug

$

$

Not available

6

Cub Cadet MA-19571011000

Hub,Release

$

$

Not available

7

Bushing

Note: Not used on this model.

$

$

Not available

8

Cub Cadet MA-11761015000

Bearing

$

$

Not available

9

Cub Cadet MA-11761014001

Lever,Clutch

$

$

Not available

10

Cub Cadet MA-19571053000

Coupling

$

$

Not available

11

Cub Cadet MA-19571051000

Bearing

$

$

Not available

12

Cub Cadet MA-F2855-08040

Pin,Clevis

$

$

Not available

13

Cub Cadet MA-05200120020

Pin,Split

$

$

Not available

14

Cub Cadet MA-10381011AG0

Shaft,Release

$

$

Not available

15

Cub Cadet MA-A0550112070

Bolt 7T

$

$

Not available

16

Cub Cadet MA-A3600101202

Washer,Spring

$

$

Not available

17

Cub Cadet MA-F1540110020

Bolt,w/Washer

$

$

Not available

18

Cub Cadet MA-F1540110025

Bolt,w/Washer

$

$

Not available

19

Cub Cadet MA-F1540112030

Bolt,w/Washer

$

$

Not available

20

Cub Cadet MA-A3030110002

Nut

$

$

Not available

21

Cub Cadet MA-A3600101002

Washer,Spring

$

$

Not available

22

Cub Cadet MA-F5000-16000

Plug

$

$

Not available

23

Cub Cadet MA-A0500110030

Bolt 7T

$

$

Not available

24

Cub Cadet MA-07410005801

C-Ring

$

$

Not available

25

Cub Cadet MA-10281111000

Cover Assy

$356.99

$

Usually ships in 3-6 days

0

26

Cub Cadet MA-19571111000

Disk,Clutch

$

$

Not available

27

Cub Cadet MA-F1540108020

Bolt,w/Washer

$

$

Not available

28

Housing,Clutch

Note: Not used on this model.

$

$

Not available

29

Hub,Release

Note: Not used on this model.

$

$

Not available

30

Disk,Clutch

Note: Not used on this model.

$

$

Not available

31

Cub Cadet MA-14061178000

Bushing

$

$

Not available

32

Seal Cap

Note: Not used on this model.

$

$

Not available
