7530 (54AF45F-710) - Cub Cadet Compact Tractor Crankshaft, Piston & Flywheel Parts Diagram

Compact Tractor

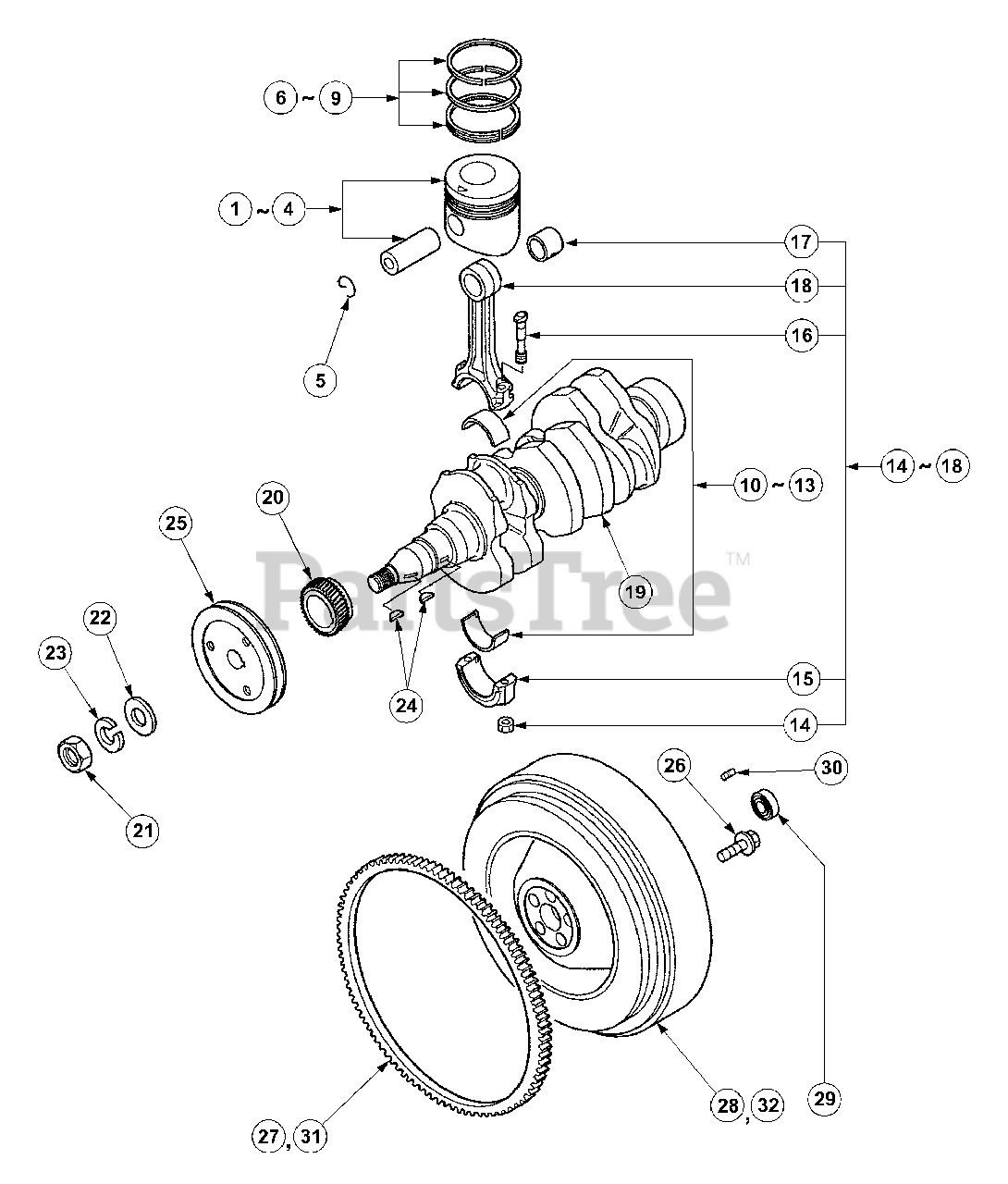

Crankshaft, Piston & Flywheel Parts Diagram

  • Title

1

Cub Cadet MA-30H17-06010

Piston,Pin Set
(Superseded to MA-30H17-06050)

$

$

Not available

2

Cub Cadet MA-30H17-06020

Piston,Pin Set

$

$

Not available

3

Cub Cadet MA-30H17-06030

Piston,Pin Set

$

$

Not available

4

Cub Cadet MA-30H17-06040

Piston,Pin Set
(Superseded to MA-30H17-06080)

$156.99

$

In Stock, only 3 left!

0

5

Cub Cadet MA-MM300140

Clip,Piston Pin

$

$

Not available

6

Cub Cadet MA-30H17-07010

Ring Set,Piston

$

$

Not available

7

Cub Cadet MA-30H17-07020

Ring Set,Piston

$

$

Not available

8

Cub Cadet MA-30H17-07030

Ring Set,Piston

$

$

Not available

9

Cub Cadet MA-30H17-07040

Ring Set,Piston

$122.99

$

In Stock, only 3 left!

0

10

Cub Cadet MA-MM438669

Bearing Set
(Superseded to MA-30H19-05010)

$

$

Not available

11

Cub Cadet MA-MM438670

Bearing Set
(Superseded to MA-30H19-05020)

$44.99

$

In Stock, only 3 left!

0

12

Cub Cadet MA-MM438671

Bearing Set
(Superseded to MA-30H19-05030)

$

$

Not available

13

Cub Cadet MA-MM438672

Bearing Set

$

$

Not available

Cub Cadet MA-30H19-00030

Rod Assy,Connecting

Note: Includes 14-18

$296.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-MD006704

Nut,Con Rod

$

$

Not available

15

Cap

$

$

Not available

16

Cub Cadet MA-MM412869

Bolt,Con Rod

$

$

Not available

17

Cub Cadet MA-30A19-05100

Bearing

$

$

Not available

18

Con Rod

$

$

Not available

Cub Cadet MA-30H20-00010

Crankshaft Ass'y.

Note: Includes 19-25

$

$

Not available

19

Crankshaft

$

$

Not available

20

Cub Cadet MA-MM430859

Gear,Crankshaft

$

$

Not available

21

Cub Cadet MA-MF430731

Nut,Jam

$

$

Not available

22

Cub Cadet MA-MF450011

Washer

$

$

Not available

23

Cub Cadet MA-MF450411

Washer,Spring

$

$

Not available

24

Cub Cadet MA-MF476215

Key

$

$

Not available

25

Cub Cadet MA-30H20-00400

Pulley,Crank

$

$

Not available

26

Cub Cadet MA-MD952231

Bolt
(Superseded to MA-31A21-03800)

$

$

Not available

Cub Cadet MA-30H21-12050

Flywheel Assy

Note: Includes 27-29

$

$

Not available

27

Cub Cadet MA-MD040556

Gear,Ring

$

$

Not available

28

Flywheel

$

$

Not available

29

Cub Cadet MA-MD002613

Bearing,Ball
(Superseded to MA-07500560024)

$

$

Not available

30

Cub Cadet MA-MF472443

Pin,Dowel

$

$

Not available

Cub Cadet MA-30H21-12030

Flywheel Assy

Note: Includes 31,32,29

$

$

Not available

31

Cub Cadet MA-MD040556

Gear,Ring

$

$

Not available

32

Flywheel

$

$

Not available
