7530 (54AF45F-710) - Cub Cadet Compact Tractor Fuel Line Parts Diagram

Compact Tractor

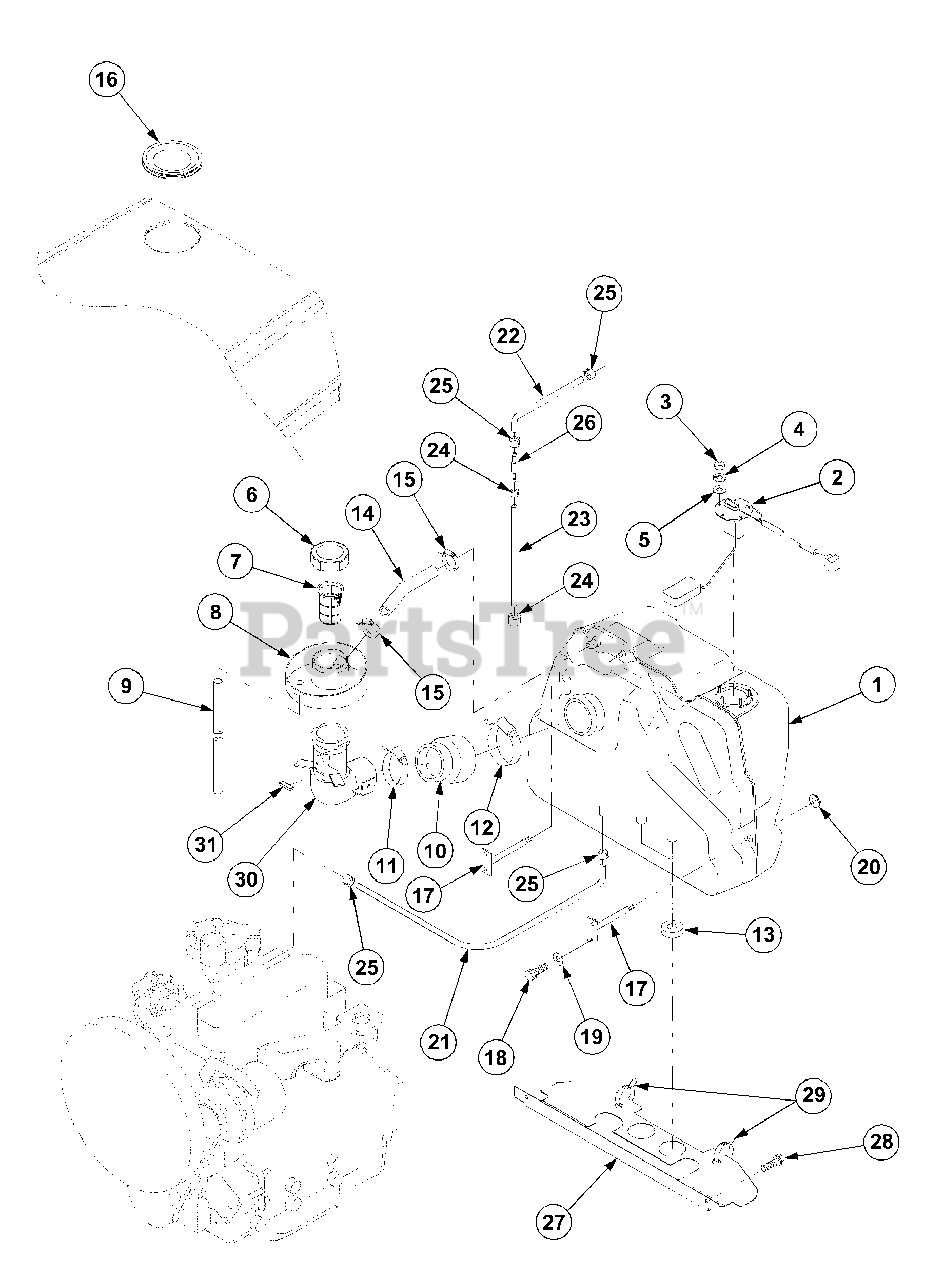

Fuel Line Parts Diagram

  • Title

Cub Cadet MA-19560102000

Tank Fuel Assy

Note: Includes 1-5

$

$

Currently unavailable

1

Cub Cadet MA-19560103000

Tank Fuel

$

$

Not available

2

Cub Cadet MA-10440116000

Fuel Unit

$

$

Not available

3

Cub Cadet MA-A3000104002

Nut

$

$

Not available

4

Cub Cadet MA-A3600100402

Washer,Spring

$

$

Not available

5

Cub Cadet MA-03500120410

Washer

$

$

Not available

6

Cub Cadet MA-19560101000

Cap,Tank

$

$

Not available

7

Cub Cadet MA-09806000001

Filter

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet MA-19560108000

Tray,Fuel

$

$

Not available

9

Cub Cadet MA-09804100502

Pipe,Vinyl

$

$

Not available

10

Cub Cadet MA-19560106000

Hose

$

$

Not available

11

Cub Cadet MA-00501100710

Clamp,Hose

$

$

Not available

12

Cub Cadet MA-00505000900

Clamp,Hose

$

$

Not available

13

Cub Cadet MA-19560124000

Rubber,Cushion

$

$

Not available

14

Cub Cadet MA-19560141000

Hose

$

$

Not available

15

Cub Cadet MA-HA230108000

Clip,Hose

$

$

Not available

16

Cub Cadet MA-19560139000

Seal,Fuel

$

$

Not available

17

Cub Cadet MA-19560126000

Bracket

$

$

Not available

18

Cub Cadet MA-H1440106012

Bolt,w/Washer

$3.49

$

In Stock, only 1 left!

0

19

Cub Cadet MA-03500150822

Washer

$

$

Not available

20

Cub Cadet MA-F3010108000

Nut,Flange

$2.49

$

In Stock, only 3 left!

0

21

Cub Cadet MA-09810060355

Hose

$

$

Not available

22

Cub Cadet MA-09810060280

Hose

$

$

Not available

23

Cub Cadet MA-09810040300

Hose

$

$

Not available

24

Cub Cadet MA-00504110005

Clamp,Hose

$

$

Not available

25

Cub Cadet MA-00504112005

Clamp,Hose

$9.49

$

In Stock, Qty 12

0

26

Cub Cadet MA-19560107000

Joint,Pipe

$

$

Not available

27

Cub Cadet MA-19560133003

Plate

$

$

Not available

28

Cub Cadet MA-H1440106012

Bolt,w/Washer

$3.49

$

In Stock, only 1 left!

0

29

Cub Cadet MA-00511070070

Band,Wire

$

$

Not available

30

Cub Cadet MA-19560105AG0

Joint

$

$

Not available

31

Cub Cadet MA-35011788000

Rubber

$

$

Not available
