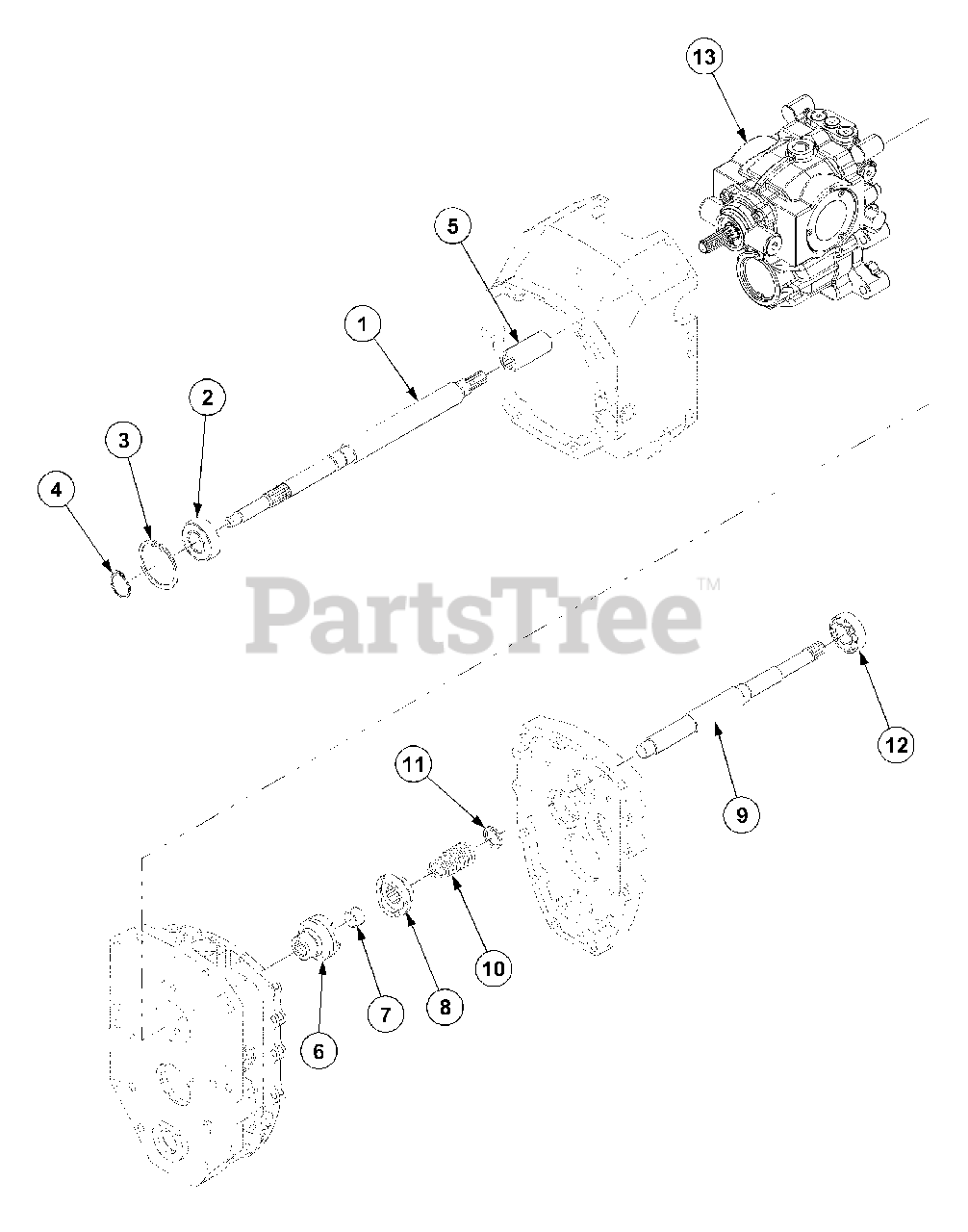

7530 (54AF45F-710) - Cub Cadet Compact Tractor HST Drive Parts Diagram

Compact Tractor

HST Drive Parts Diagram

  • Title

1

Cub Cadet MA-19571305000

Shaft,Drive
(Superseded to MA-19571305001)

$

$

Not available

2

Cub Cadet MA-07500562054

Bearing,Ball

$

$

Not available

3

Cub Cadet MA-07410105200

C-Ring
(Superseded to MA-07410005200)

$

$

Not available

4

Cub Cadet MA-07400102500

C-Ring
(Superseded to MA-07400002500)

$

$

Not available

5

Cub Cadet MA-10441214000

Boss,Spline

$

$

Not available

6

Cub Cadet MA-19571371000

Clutch A

$

$

Not available

7

Cub Cadet MA-07972020150

Bushing

$

$

Not available

8

Cub Cadet MA-19831272000

Clutch B

$233.99

$

Usually ships in 3-6 days

0

9

Cub Cadet MA-19571341000

Shaft

$

$

Not available

10

Cub Cadet MA-19571351000

Spring

$

$

Not available

11

Cub Cadet MA-10411392000

Collar

$

$

Not available

12

Cub Cadet 07500062050

Bearing,Ball

$

$

Currently unavailable

13

Cub Cadet 19571301000

Hst Unit

$

$

Currently unavailable
