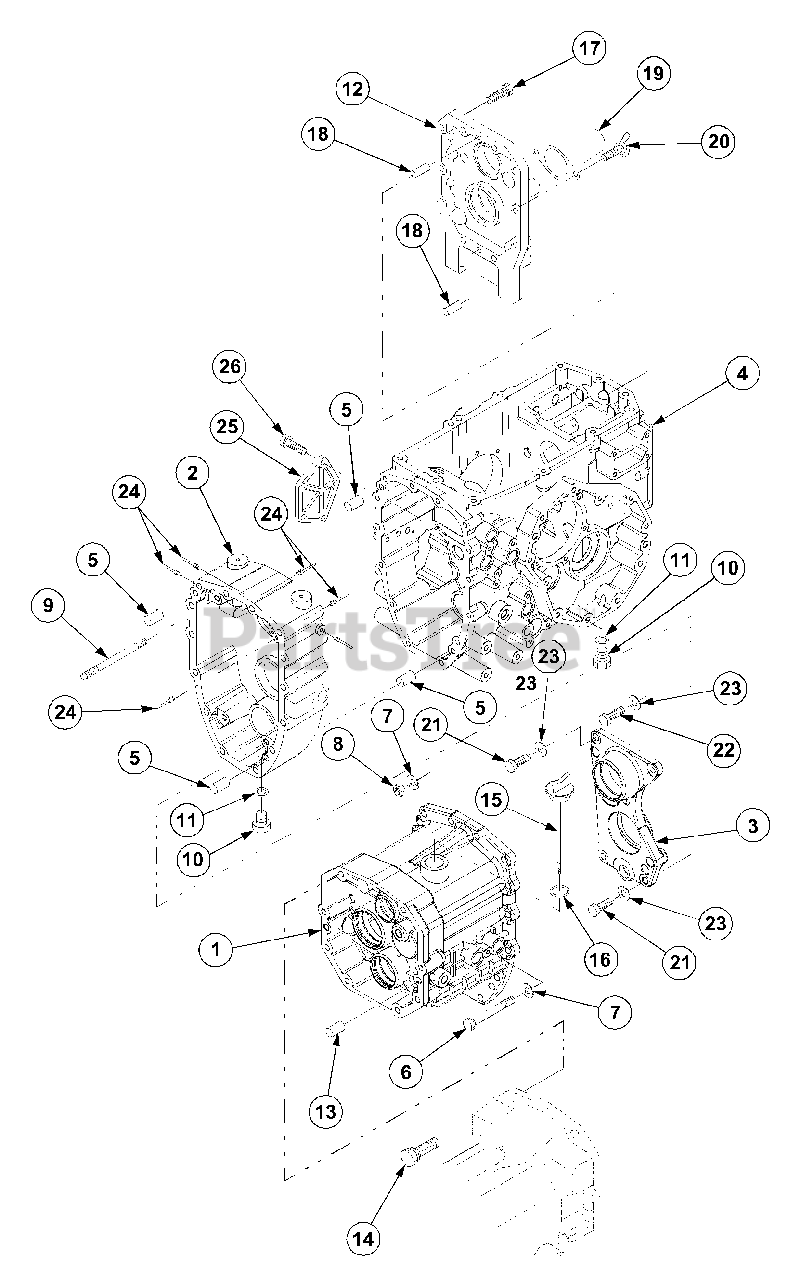

7530 (54AF45F-710) - Cub Cadet Compact Tractor Transmission (Part 1) Parts Diagram

Compact Tractor

Transmission (Part 1) Parts Diagram

  • Title

1

Cub Cadet MA-19571201AG0

Housing, Transmission

$

$

Not available

2

Cub Cadet MA-19571206AG0

Holder, Bearing

$

$

Not available

3

Cub Cadet MA-19571204000

Cover - Mod. 7530
(Superseded to MA-19571204001)

Note: before S/N 10138

$

$

Not available

3

Cub Cadet MA-19571204001

Cover - Mod. 7530

Note: S/N 10138 & after Replaces MA-19571204000 by also ordering MA-19571291001 (PTO Clutch Assy) and MA-19571708000 (Shuttle Rail)

$

$

Not available

4

Cub Cadet MA-19571203AG0

Housing, Diff
(Superseded to MA-19571203AG1)

$

$

Not available

5

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet MA-A0540110125

Bolt

$

$

Not available

7

Cub Cadet MA-A3600101002

Washer, Spring

$

$

Not available

8

Cub Cadet MA-A3010110002

Nut

$

$

Not available

9

Cub Cadet MA-10441595000

Stud

$

$

Not available

10

Cub Cadet MA-10250808000

Plug

$

$

Not available

11

Cub Cadet MA-08331001200

Washer, Seal

$

$

Not available

12

Cub Cadet MA-19571205AG0

Cover, PTO

$

$

Not available

13

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet MA-F1540112040

Bolt, w/Washer

$

$

Not available

15

Cub Cadet MA-19812472002

Plug, Oiling

$

$

Not available

16

Cub Cadet MA-08300100280

O-Ring

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet MA-F1540110050

Bolt, w/Washer

$

$

Not available

18

Cub Cadet MA-05401010020

Pin, Dowel

$2.49

$

In Stock, only 1 left!

0

19

Cub Cadet MA-10311382000

Cap P.T.O

$

$

Not available

20

Cub Cadet MA-A1400600812

Bolt, Wing

$

$

Not available

21

Cub Cadet MA-10401337000

Bolt

$

$

Not available

22

Cub Cadet MA-A0500110030

Bolt 7T

$

$

Not available

23

Cub Cadet MA-03550161021

Washer

$

$

Not available

24

Cub Cadet MA-10411349000

Plug

$

$

Not available

25

Cub Cadet MA-10441207AG0

Cover

$

$

Not available

26

Cub Cadet MA-F1540108025

Bolt, w/Washer

$

$

Not available
