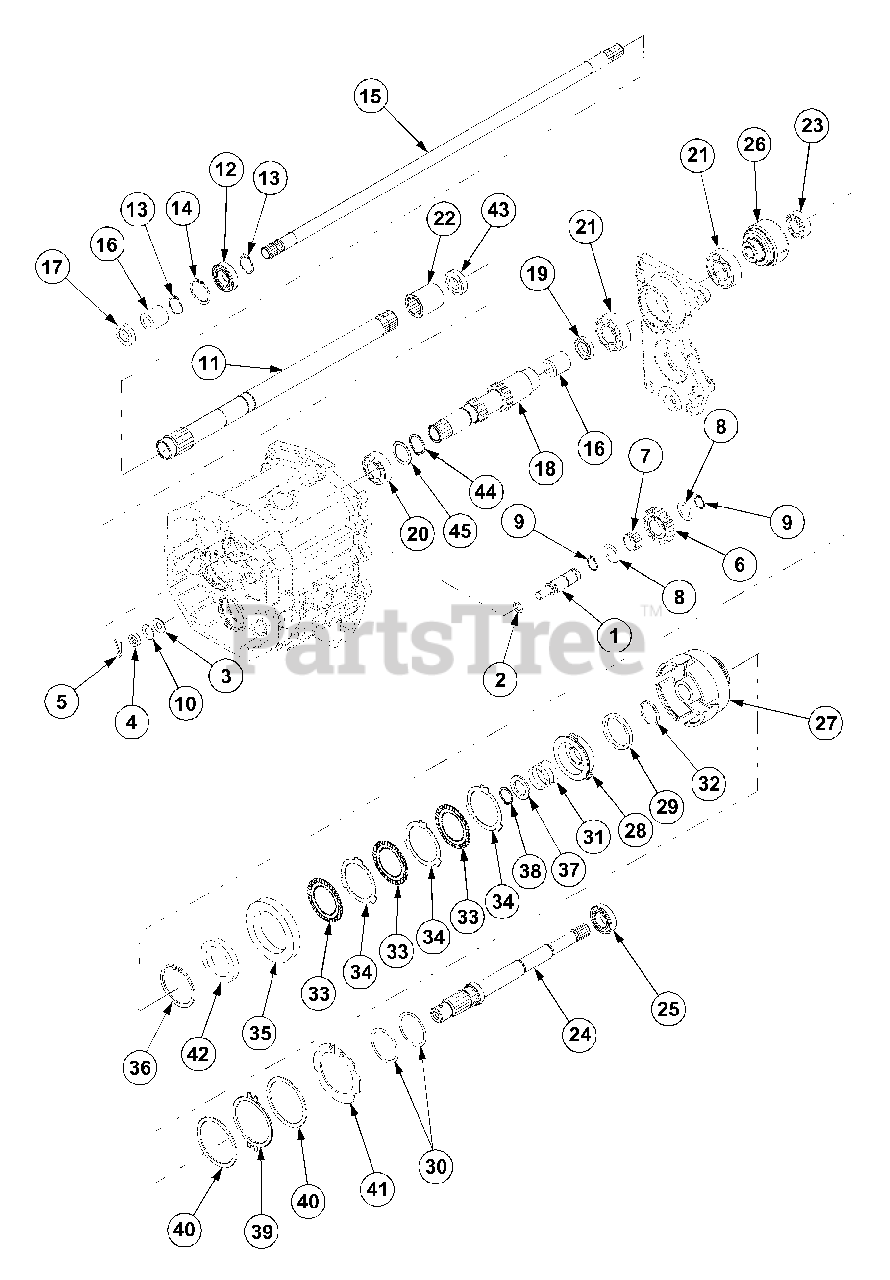

7530 (54AF45F-710) - Cub Cadet Compact Tractor Transmission (Part 2) Parts Diagram

Compact Tractor

Transmission (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-10441215000

Shaft, Back Idle

$

$

Not available

2

Cub Cadet MA-08300100160

O-Ring

$

$

Not available

3

Cub Cadet MA-03500151226

Washer

$

$

Not available

4

Cub Cadet MA-A3100101201

Nut

$

$

Not available

5

Cub Cadet MA-05200125020

Pin, Split

$

$

Not available

6

Cub Cadet MA-10441216000

Gear 22T - Before S/N10398

$

$

Not available

Cub Cadet MA-10441216001

Gear 22T - Model 7530 S/N 10398 & after.

Note: Replaces MA-10441216000 when inventory is gone.

$

$

Not available

7

Cub Cadet MA-07802202617

Bearing, Needle

$

$

Not available

8

Cub Cadet MA-13521406000

Liner B, Thrust

$

$

Not available

9

Cub Cadet MA-07400102000

C-Ring

$

$

Not available

10

Cub Cadet MA-07310101210

Liner
(Superseded to MA-07310001210)

$

$

Not available

11

Cub Cadet MA-19571277000

Shaft, Pipe

$

$

Not available

12

Cub Cadet MA-07500560064

Bearing, Ball

$

$

Not available

13

Cub Cadet MA-07400103000

C-ring
(Superseded to MA-07400003000)

$

$

Not available

14

Cub Cadet MA-07410105501

C-ring

$

$

Currently unavailable

15

Cub Cadet MA-19571278000

Shaft, Drive

$

$

Not available

16

Cub Cadet MA-07963020200

Bushing

$

$

Not available

17

Cub Cadet MA-19631276000

Seal, Oil

$

$

Not available

18

Cub Cadet MA-19571281000

Shaft, Shuttle

$

$

Not available

19

Cub Cadet MA-08401020307

Seal, Oil

$

$

Not available

20

Cub Cadet MA-07500060060

Bearing, ball

$

$

Not available

21

Cub Cadet MA-07500060070

Bearing, Ball

$

$

Not available

22

Cub Cadet MA-19571279000

Boss, Spline

$

$

Not available

23

Cub Cadet MA-07500060050

Bearing, Ball

$

$

Not available

24

Cub Cadet MA-19571285000

Shaft

$

$

Not available

25

Cub Cadet MA-07500560054

Bearing, Ball

$

$

Not available

26

Cub Cadet MA-19571283000

Boss, Spline

$258.99

$

In Stock, only 1 left!

0

Cub Cadet MA-19571291000

PTO Clutch Assembly, Mod 7530 before S/N 10138 (C00175) (Incl Item 27-42)

$

$

Not available

Cub Cadet MA-19571291001

PTO Clutch Assembly -Model 7530 S/N 10138 & after (Incl Item 27-42)

$

$

Not available

27

Cub Cadet MA-19571291100

Case - Model 7530 Before S/N 10138 (C00175)

$

$

Currently unavailable

27

Cub Cadet MA-19571291111

Case - Model 7530 S/N10138 & after

$

$

Not available

28

Cub Cadet MA-19611261120

Piston - Model 7530 Before S/N 10138 (C00175)

$

$

Not available

28

Cub Cadet MA-19571291120

Piston - Model 7530 S/N10138 & after

$

$

Not available

29

Cub Cadet MA-19611261130

Ring, Seal

$

$

Not available

30

Cub Cadet MA-19611261140

Ring, Seal

$

$

Not available

31

Cub Cadet MA-19611261150

Spring

$

$

Not available

32

Cub Cadet MA-19611261160

Ring, Seal

$

$

Not available

33

Cub Cadet MA-19611261170

Plate, Drive - Model 7530 Before S/N 10138 (C00175)

$

$

Not available

33

Cub Cadet MA-19571291170

Plate, Drive - Model 7530 S/N 10138 & after

$

$

Not available

34

Cub Cadet MA-19611261180

Plate, Disk

$

$

Not available

35

Cub Cadet MA-19611261190

Plate, Back - Model 7530 Before S/N 10138 (C00175)

$

$

Not available

35

Cub Cadet MA-19571291190

Plate, Back - Model 7530 S/N10138 & after

$

$

Not available

36

Cub Cadet MA-19611261210

Ring - Model 7530 Before S/N 10138 (C00175)

$

$

Not available

36

Cub Cadet MA-19571291210

Ring - Model 7530 S/N10138 & after

$

$

Not available

37

Cub Cadet MA-19611261220

Washer

$

$

Not available

38

Cub Cadet MA-19611261230

Ring

$

$

Not available

39

Cub Cadet MA-19611261240

Disk, Brake

$

$

Not available

40

Cub Cadet MA-19611261250

Plate, Brake - Model 7530 Before S/N 10138 (C00175)

$

$

Not available

40

Cub Cadet MA-19571291250

Plate, Brake - Model 7530 S/N S/N10138 & after

$

$

Not available

41

Cub Cadet MA-19611261260

Ring

$

$

Not available

42

Cub Cadet MA-10371339000

Spring, Belleville - Model 7530 before S/N 10138 (C00175)

$

$

Not available

42

Cub Cadet MA-19571291270

Spring - Model 7530 S/N S/N10138 & after

$

$

Not available

43

Cub Cadet MA-08401030428

Seal, Oil

$

$

Not available

44

Cub Cadet MA-07400103000

C-Ring
(Superseded to MA-07400003000)

$

$

Not available

45

Cub Cadet MA-35211303200

Liner

$

$

Not available
