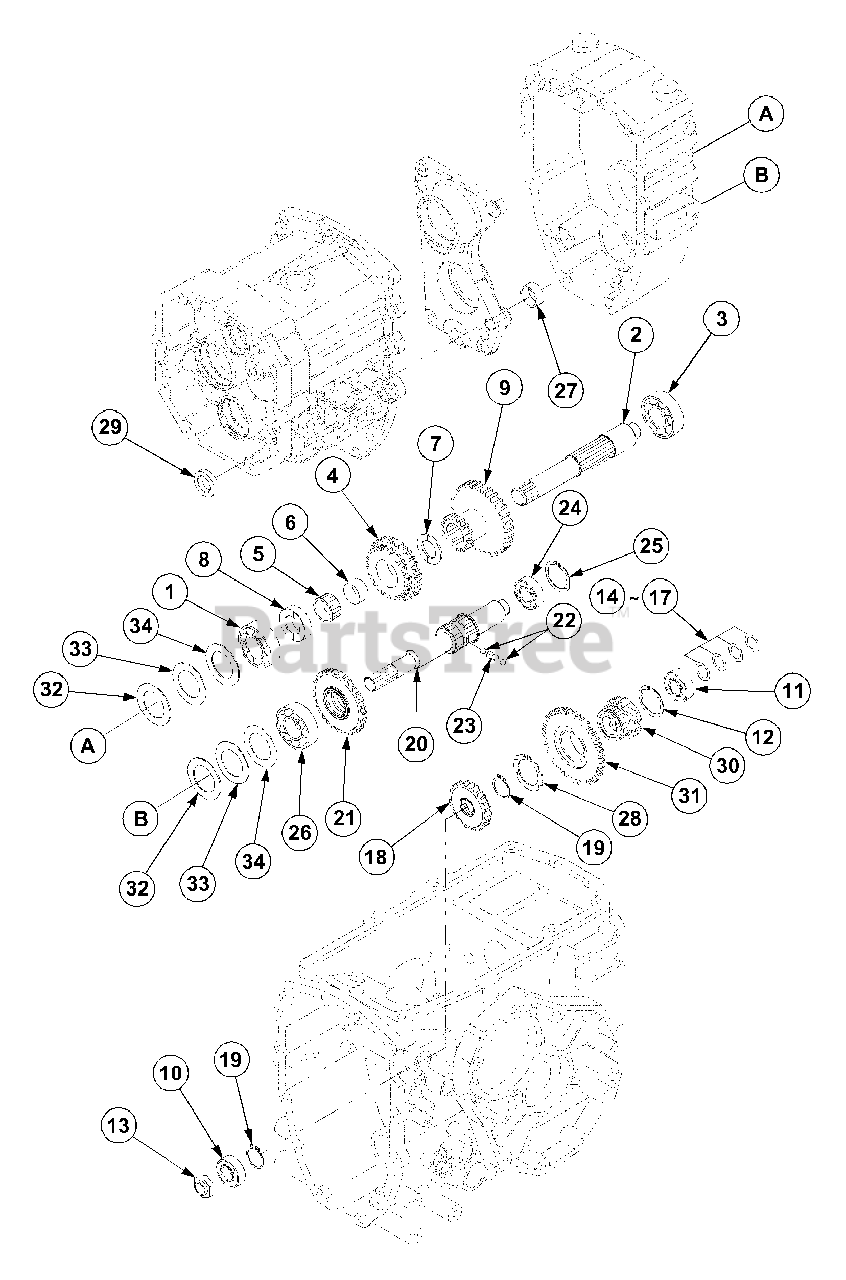

7530 (54AF45F-710) - Cub Cadet Compact Tractor Transmission (Part 4) Parts Diagram

Compact Tractor

Transmission (Part 4) Parts Diagram

  • Title

1

Cub Cadet MA-07500063050

Bearing,Ball

$38.99

$

In Stock, Qty 7

0

2

Cub Cadet MA-19571236000

Shaft,Sub

$

$

Not available

3

Cub Cadet MA-07500063040

Bearing,Ball

$

$

Not available

4

Cub Cadet MA-19571231000

Gear 28-33T

$

$

Not available

5

Cub Cadet MA-07802303720

Bearing,Needle

$

$

Not available

6

Cub Cadet MA-10411291000

Collar

$

$

Not available

7

Cub Cadet MA-10301328000

Liner

$

$

Not available

8

Cub Cadet MA-10441259001

Collar

$

$

Not available

9

Cub Cadet MA-19571237000

Gear 34-19T

$

$

Not available

10

Cub Cadet MA-07700030304

Bearing,Taper

$

$

Currently unavailable

11

Cub Cadet MA-19571298000

Bearing,Taper

$

$

Not available

12

Cub Cadet MA-07410105201

C-Ring
(Superseded to MA-07410005201)

$

$

Not available

13

Cub Cadet MA-10441226001

Nut

$

$

Not available

Cub Cadet MA-10212158000

Liner Set Includes 14-17

$

$

Not available

14

Cub Cadet MA-07310002501

Liner

$

$

Not available

15

Cub Cadet MA-07310002502

Liner

$

$

Not available

16

Cub Cadet MA-07310002504

Liner

$

$

Not available

17

Cub Cadet MA-07310002508

Liner

$

$

Not available

18

Cub Cadet MA-19571242000

Gear 25T

$

$

Not available

19

Cub Cadet MA-07400102500

C-Ring
(Superseded to MA-07400002500)

$

$

Not available

20

Cub Cadet MA-19571272000

Shaft,4WD

$

$

Not available

21

Cub Cadet MA-19571274000

Gear 35T

$

$

Not available

22

Cub Cadet MA-08000000800

Ball

$

$

Not available

23

Cub Cadet MA-10351293000

Spring

$

$

Not available

24

Cub Cadet MA-07500060040

Bearing,Ball

$

$

Not available

25

Cub Cadet MA-07410104201

C-Ring
(Superseded to MA-07410004201)

$

$

Not available

26

Cub Cadet MA-07500063050

Bearing,Ball

$38.99

$

In Stock, Qty 7

0

27

Cub Cadet MA-07972020100

Bushing

$

$

Not available

28

Cub Cadet MA-07400104201

C-Ring
(Superseded to MA-07400004201)

$

$

Not available

29

Cub Cadet MA-08401020328

Seal,Oil

$

$

Not available

30

Cub Cadet MA-19571238000

Gear 14T

$

$

Not available

31

Cub Cadet MA-19571239000

Gear 28T

$

$

Not available

Cub Cadet MA-10211318000

Liner Set Includes 32-34

$

$

Not available

32

Cub Cadet MA-07300006202

Liner

$

$

Not available

33

Cub Cadet MA-07300006206

Liner

$

$

Not available

34

Cub Cadet MA-07300106201

Liner

$

$

Currently unavailable
