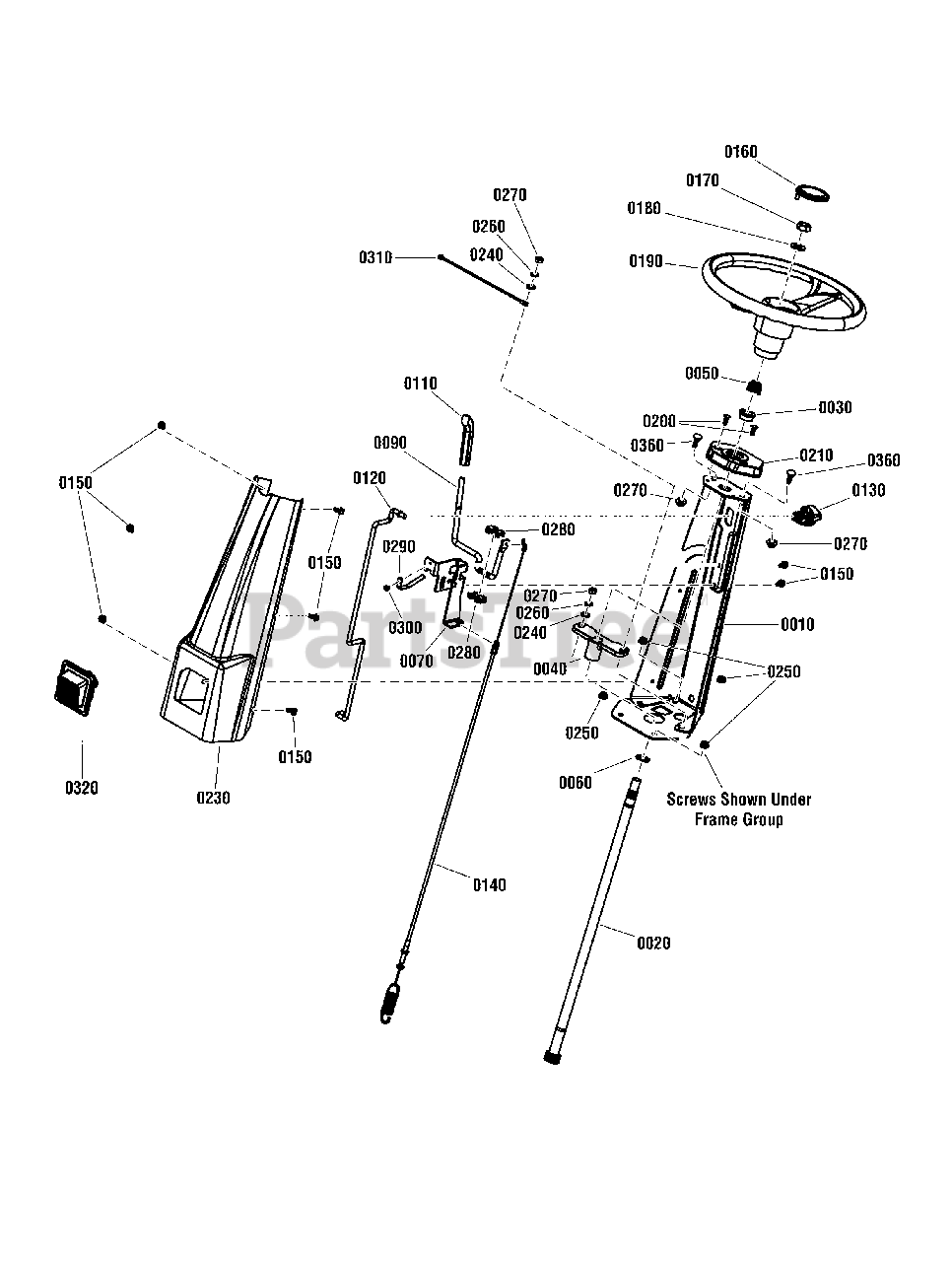

7800933 - Simplicity Coronet 33" Rear-Engine Riding Mower, 14.5hp Steering Group (7503109) Parts Diagram

Coronet 33" Rear-Engine Riding Mower, 14.5hp

Steering Group (7503109) Parts Diagram

  • Title

0010

Simplicity 7301293BMYP

SUPPORT, Steering Column

$107.99

$

Usually ships in 2-12 days

0

0020

Simplicity 7105572YP

SHAFT, Steering

$74.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1729665SM

BUSHING, Steering, 3/4 ID

$5.99

$

In Stock, Qty 11

0

0040

Simplicity 7105751YP

BEARING, Steering Shaft, 3/4 ID

$14.99

$

In Stock, only 1 left!

0

0050

Simplicity 7106341YP

SPRING, Conical Compression

$6.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703151

WASHER, .766 ID X 1.06 OD X .07, Flat, Zinc/Clear

$3.49

$

In Stock, Qty 16

0

0070

Simplicity 7301375BMYP

BRACKET, Blade Engagement Handle

$20.99

$

Usually ships in 2-12 days

0

0090

Simplicity 7105731BMYP

LEVER, PTO Engagement

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 7023657YP

GRIP, Handle, 3/8

$4.99

$

In Stock, Qty 6

0

0120

Simplicity 7105654YP

ROD, Parking Brake

$19.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7105745YP

KNOB, Parking Brake

$7.99

$

In Stock, only 4 left!

0

0140

Simplicity 7105566YP

CABLE, Blade Engagement, 40.82"

$28.99

$

In Stock, only 1 left!

0

0150

Simplicity 703962

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0160

Simplicity 1725024SM

CAP, Steering Wheel, Plain

$7.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1960576SM

NUT, 5/8-18, Hex Lock, Thin ESNA Light, Black

$5.99

$

In Stock, Qty 9

0

0180

Simplicity 703580

WASHER, 5/8", 0.66 ID x 1.12 OD x .11 Thk, Zinc/Clear

$4.49

$

In Stock, Qty 16

0

0190

Simplicity 7105776YP

STEERING WHEEL, 13 DIA, 5.87 Dish

$100.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7091272YP

FASTENER, 1/4 x 3/4 Ratchet

$3.99

$

In Stock, Qty 11

0

0210

Simplicity 7105597YP

COVER, Steering Tower/Support

$6.49

$

Usually ships in 2-12 days

0

0230

Simplicity 7301260CYP

TOWER, Steering, Orange

$58.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0260

Simplicity 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 703465

NUT, 5/16-18, GRB, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0280

Simplicity 7106027YP

BUSHING, PTO Lever, Plastic

$3.99

$

Usually ships in 2-12 days

0

0290

Simplicity 7301373YP

PADDLE, PTO Lever

$5.49

$

In Stock, only 1 left!

0

0300

Simplicity 7090981YP

SCREW, 10-32 x 1/4 Hex Washer Self-Tap, BZ
(Superseded to 704061)

$3.99

$

In Stock, Qty 20+

0

0310

Simplicity 7106051YP

WIRE, RER Head Light Ground

$5.99

$

Usually ships in 2-12 days

0

0320

Simplicity 7105923YP

ASSEMBLY, Head Light

$69.99

$

Usually ships in 2-12 days

0

0320-30

* LAMP, 12VAC 25-30 Lumen LED

Note: (1156 Socket)

$

$

Not available

0360

Simplicity 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0
