7800933 - Simplicity Coronet 33" Rear-Engine Riding Mower, 14.5hp Wheel & Tire Group (7503079) Parts Diagram

Coronet 33" Rear-Engine Riding Mower, 14.5hp

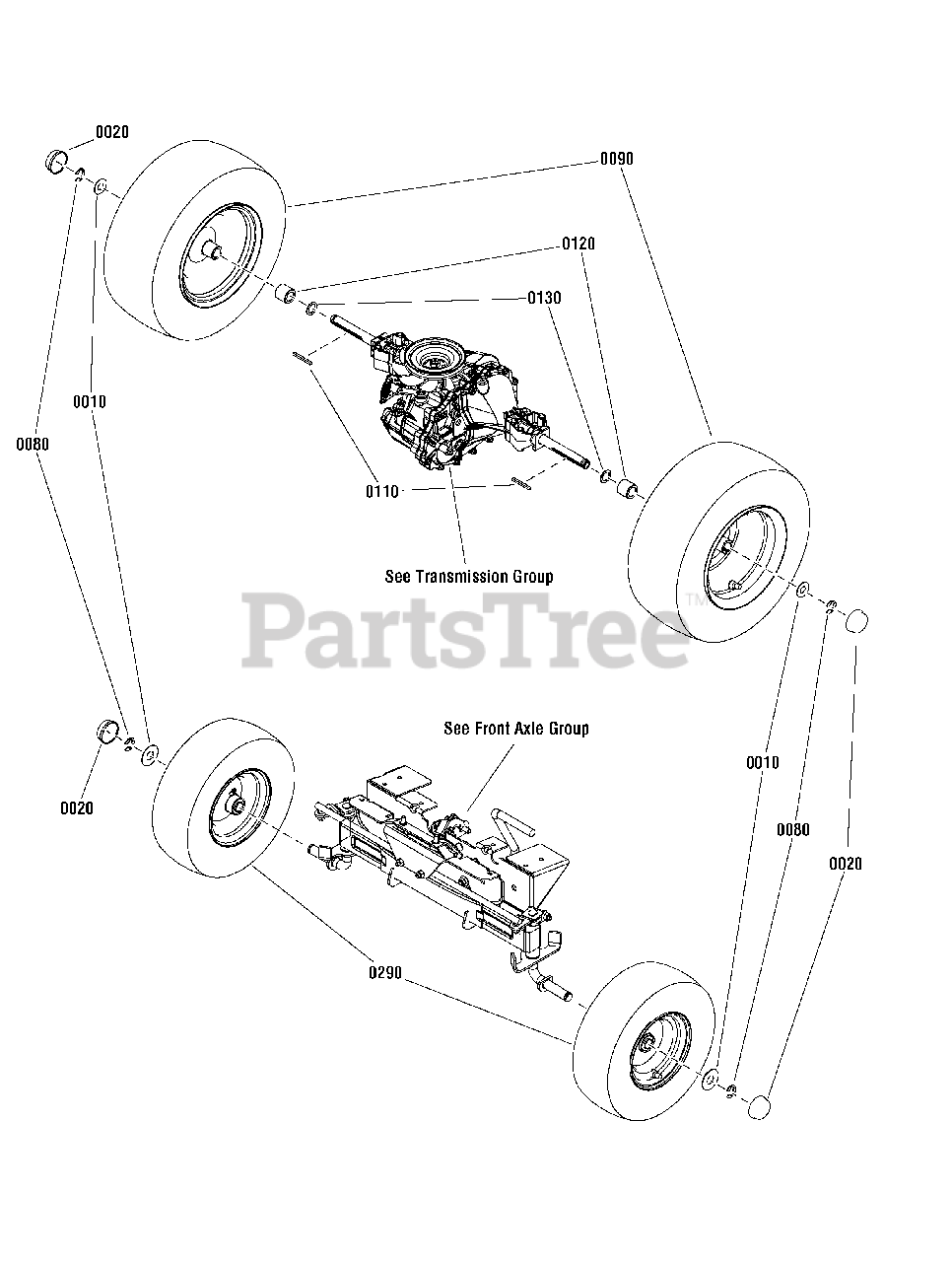

Wheel & Tire Group (7503079) Parts Diagram

  • Title

0010

Simplicity 722620

WASHER, .765 ID, 1.8 OD, .0598 Thk, Flat ZP
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 16

0

0020

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

0080

Simplicity 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 12

0

0090

Simplicity 7105936YP

ASSEMBLY, Rear Wheel, 16 X 6.50-8, 2P K358
(Superseded to 7106092YP)

$195.99

$

Usually ships in 2-12 days

0

0110

Simplicity 720258

KEY, 3/16 Square x 2 Long
(Superseded to 021553MA)

$4.99

$

In Stock, Qty 6

0

0120

Simplicity 704204

SPACER, Axle, .77" ID, 1.25" OD, 1.15" Long, Zinc/Clear

$7.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 7106090YP

ASSEMBLY, Front Wheel, 13" X 5-6

$112.99

$

In Stock, only 2 left!

0

0290-10

Simplicity 7012234SM

VALVE, Stem & Cap (Not shown)

$6.49

$

In Stock, only 2 left!

0

0290-20

Simplicity 7011807YP

BEARING, Ball, Flanged (3/4 ID, 1-3/8 OD)

$7.99

$

In Stock, Qty 20+

0

0290-50

Simplicity 703957

GREASE FITTING, 1/4-28X31/32 Zinc/Clear

$7.49

$

Usually ships in 2-12 days

0
