78569 - Toro 48", 52" & 60" E-Z Vac Twin Soft Bagger (SN: 316000001 - 316999999) (2016) BAGGER TOP AND MOUNTING ASSEMBLY Parts Diagram

48", 52" & 60" E-Z Vac Twin Soft Bagger

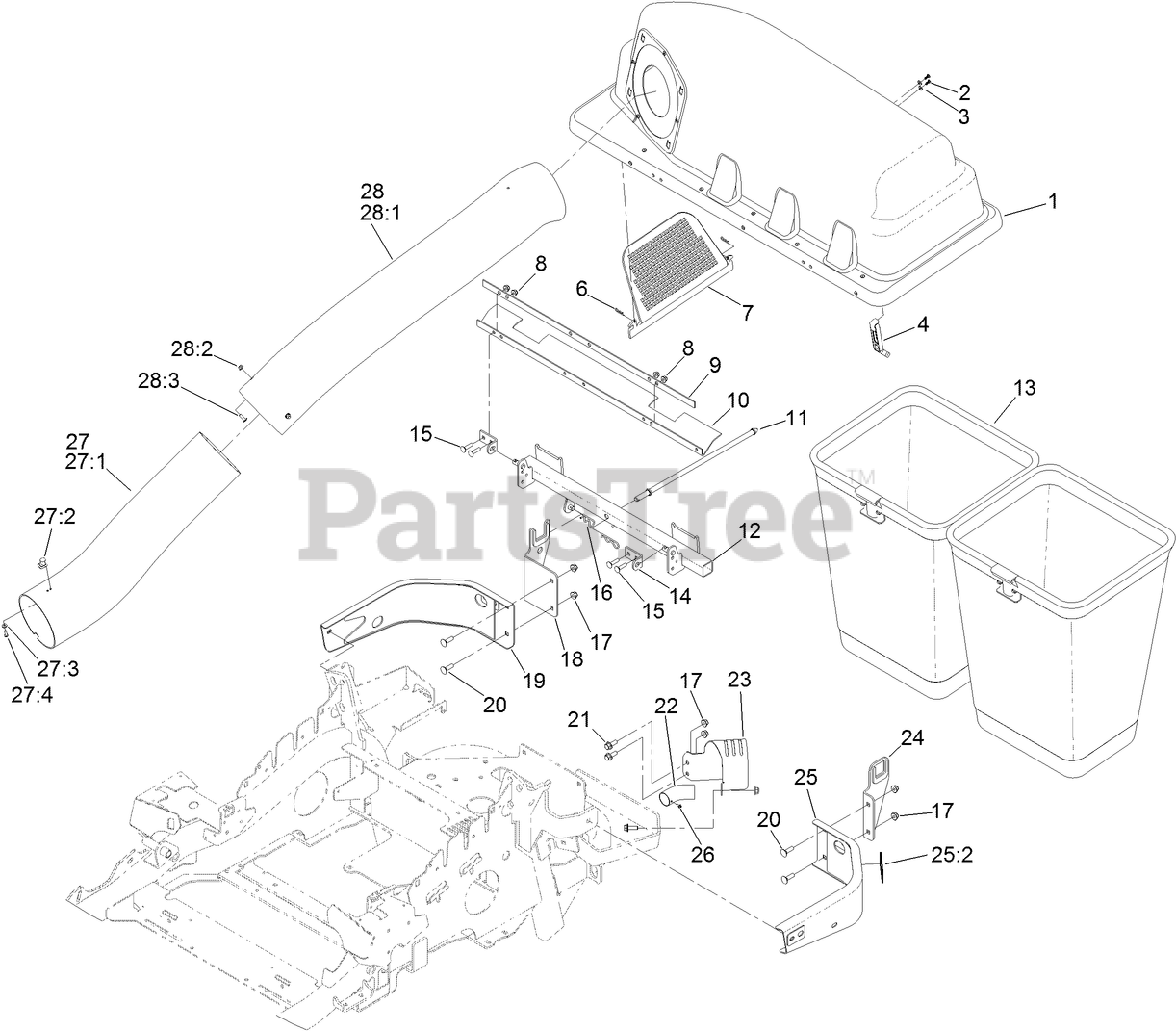

BAGGER TOP AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 121-3215

BAGGER HOOD ASM

$527.99

$

Usually ships in 3-6 days

0

2

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 3 left!

0

3

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

4

Toro 116-4992

LATCH-RUBBER

$49.99

$

In Stock, only 1 left!

0

6

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

7

Toro 112-3993

SCREEN-BAGGER

$29.99

$

In Stock, only 2 left!

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-4127-03

PLATE-BACKING

$21.99

$

Usually ships in 3-6 days

0

10

Toro 116-4126

SEAL

$31.99

$

In Stock, only 2 left!

0

11

Toro 116-6491

ROD-HOLD DOWN, HOOD

$56.99

$

Usually ships in 3-6 days

0

12

Toro 116-4783-03

FRAME PIVOT ASM

$174.99

$

Usually ships in 3-6 days

0

13

Toro 116-0754

BAG AND FRAME ASM

$185.99

$

In Stock, only 2 left!

0

14

Toro 112-3987

BRACKET-PIVOT, HOPPER

$7.99

$

Usually ships in 3-6 days

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 117-8649-03

RH BAGGER BRACKET ASM

$63.99

$

Usually ships in 3-6 days

0

19

Toro 116-0057-03

BUMPER-RH

$213.99

$

In Stock, only 1 left!

0

20

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, only 3 left!

0

21

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 6

0

22

Toro 121-3213

TUBE-DIVERTER

$36.99

$

Usually ships in 3-6 days

0

23

Toro 121-3214-03

BRACKET-DIVERTER

$47.99

$

Usually ships in 3-6 days

0

24

Toro 117-8647-03

LH BAGGER BRACKET ASM

$63.99

$

Usually ships in 3-6 days

0

25

Toro 116-0180

LH BUMPER ASM

$144.99

$

Usually ships in 3-6 days

0

25:2

Toro 103-2076

DECAL-CAUTION

$6.49

$

Usually ships in 3-6 days

0

26

Toro 32144-42

SCREW-THD FORM, HWH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 116-4128

LOWER TUBE ASM

$259.99

$

Usually ships in 3-6 days

0

27:1

Toro 116-4495

TUBE-LOWER

$127.99

$

Usually ships in 3-6 days

0

27:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$14.99

$

In Stock, only 2 left!

0

27:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Toro 116-4825

UPPER TUBE ASM

$269.99

$

Usually ships in 3-6 days

0

28:1

Toro 116-4496

TUBE-UPPER

$265.99

$

Usually ships in 3-6 days

0

28:2

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28:3

Toro 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0
