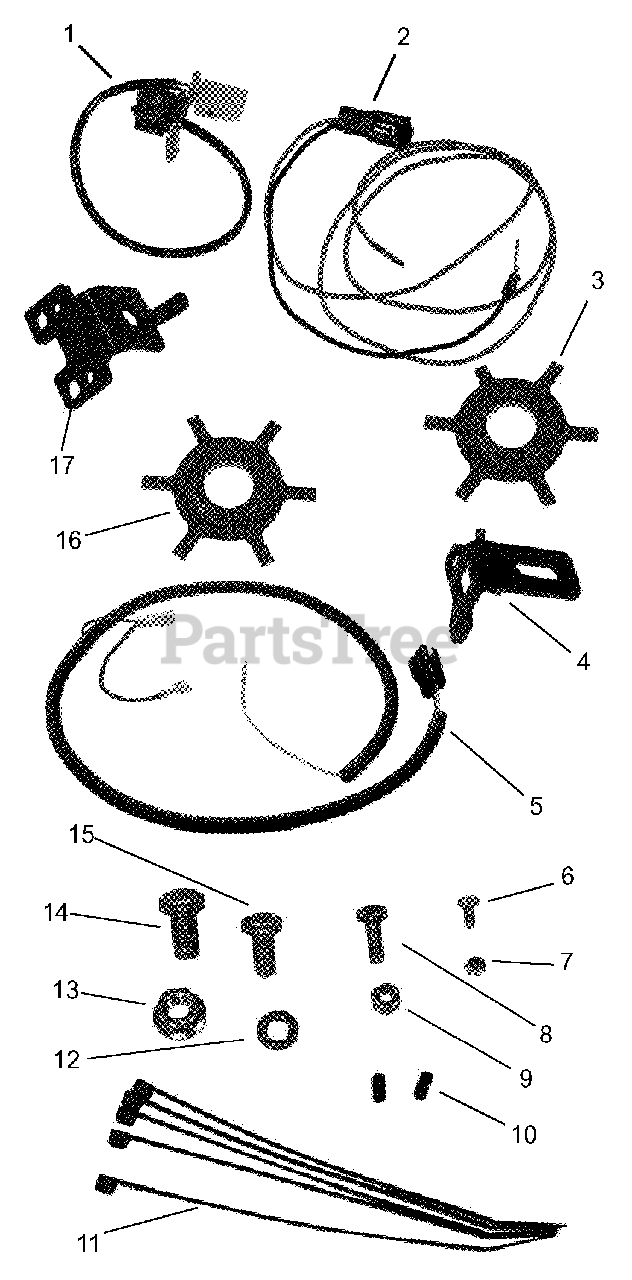

792040 - Gravely Eye-Q RPM Sensor Kit for PM100Z, PM200Z Engine RPM Kit P/N 79204000 Parts Diagram

Eye-Q RPM Sensor Kit for PM100Z, PM200Z

Engine RPM Kit P/N 79204000 Parts Diagram

  • Title

1

Gravely 00266300

Eye-Q Engine RPM Sensor

$

$

Not available

2

Gravely 00270500

Diesel RPM Sensor Harness

$

$

Not available

3

Gravely 00277000

6T RPM Sprocket 1-3/4 I.D.

$

$

Not available

4

Gravely 00278400

RPM Sensor Mounting Bracket

$

$

Not available

5

Gravely 00278100

RPM Sensor Harness

$

$

Not available

6

Gravely 05900007

Hex Bolt, M4 x 0.7 x 12 mm

$

$

Not available

7

Gravely 06500005

Nylon Lock Nut M4-0.7

$

$

Not available

8

Gravely 05975900

Hex Bolt, M6-1 x 16 mm
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

9

Gravely 06542600

Nylon Lock Nut, M6-1

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06004600

Set Screw, 10-24 x 3/8 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 07517300

Cable Tie, 5-1/2

$

$

Not available

12

Gravely 06308600

Lock Washer, 5/16 x 5/64
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06542000

Top Locking Flange Nut, 3/8-16
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 05959400

Hex Bolt, 3/8-16 x 3/4
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

15

Gravely 05956300

Hex Bolt, M8-1.25 x 16

$

$

Not available

16

Gravely 00276900

6T RPM Sprocket, 1-5/8 I.D.

$

$

Not available

17

Gravely 00277100

RPM Sensor Mounting Bracket

$

$

Not available

Gravely 79204000

Engine RPM Kit
(Superseded to 79207600)

Note: Kit 792047 is required to install kit 792040.

$

$

Not available

Gravely 792047

Kit

$

$

Not available
