79366 - Toro 44" Two-Stage Snow Thrower for 5xi Tractor (SN: 260000001 - 260999999) (2006) CRANK ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 5xi Tractor

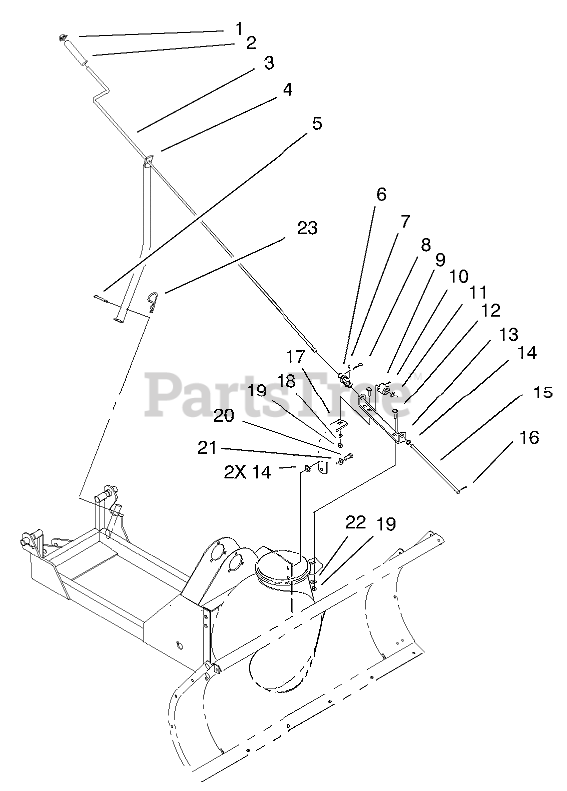

CRANK ASSEMBLY Parts Diagram

  • Title

1

Toro 99-6885

NUT-PUSH

$7.99

$

Usually ships in 3-6 days

0

2

Toro 40-8230

GRIP-CONTROL, CHUTE

$14.99

$

Usually ships in 3-6 days

0

3

Toro 98-3090

ROD

$

$

Not available

4

Toro 95-3864-01

TUBE-CRANK SUPPORT

$173.99

$

Usually ships in 3-6 days

0

5

Toro 283-66

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

6

Toro 94-2686

JOINT-UNIVERSAL

$179.99

$

Usually ships in 3-6 days

0

7

Toro 32121-47

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0

8

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

9

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

10

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

11

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

13

Toro 98-3089-01

BRACKET-GEAR

$

$

Not available

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-7046

ROD

$71.99

$

Usually ships in 3-6 days

0

16

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 98-3094-01

CRANK SUPPORT, LOWER

$

$

Not available

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

22

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

23

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 14

0
