79483 - Toro 42" Single-Stage Snow Thrower for XT Series Tractors (SN: 240000001 - 240999999) (2004) AUGER AND DRIVE SYSTEM ASSEMBLY Parts Diagram

42" Single-Stage Snow Thrower for XT Series Tractors

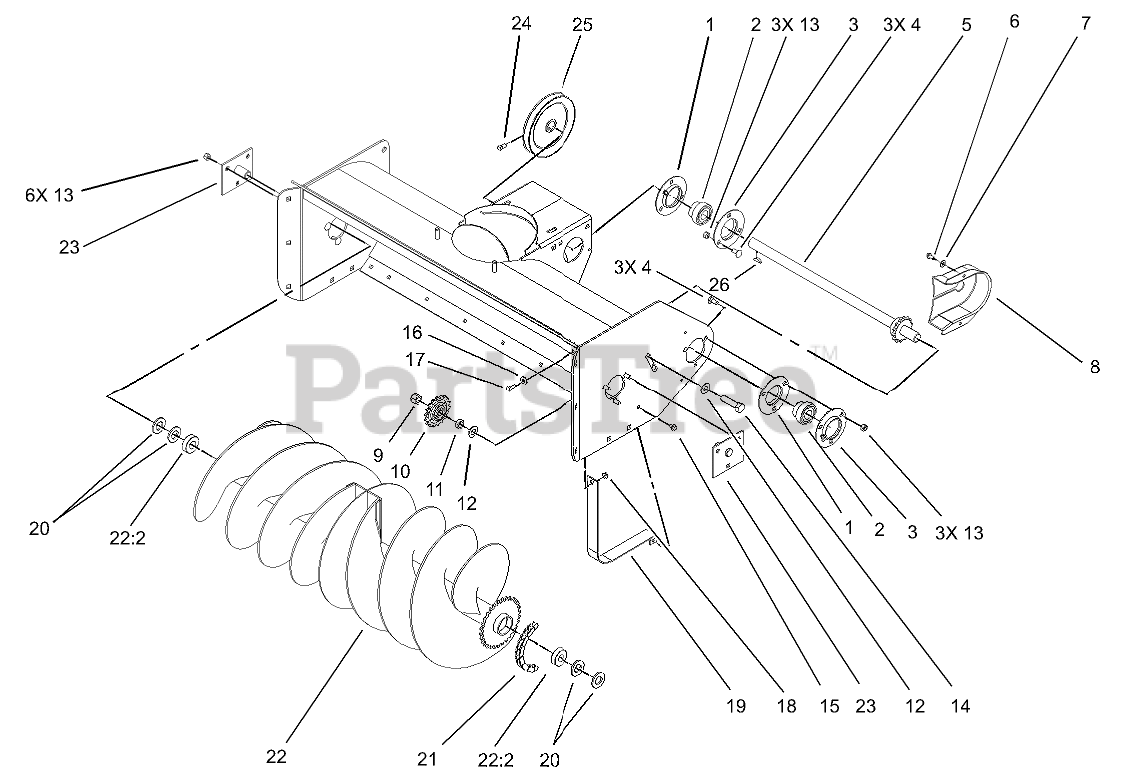

AUGER AND DRIVE SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 110568

Flange

$18.99

$

Usually ships in 3-6 days

0

2

Toro 110569

BEARING AND COLLAR

$108.99

$

In Stock, only 4 left!

0

3

Toro 110567

FLANGE-ZERK RELUBE

$22.99

$

In Stock, only 1 left!

0

4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 79-4840-01

SHAFT W/SPRKT

$432.99

$

Usually ships in 3-6 days

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-4000

GUARD-CHAIN

$

$

Not available

9

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 93-1614

SPROCKET-IDLER

$54.99

$

In Stock, Qty 9

0

11

Toro 6417

SPACER

$

$

Not available

12

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 7

0

15

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 16

0

16

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

18

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

19

Toro 93-1619-01

GUARD-INNER

$46.99

$

In Stock, only 1 left!

0

20

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

21

Toro 115165

CHAIN-64 PITCHES

$130.99

$

Usually ships in 3-6 days

0

22

Toro 105-1478

AUGER ASM

$

$

Not available

22:2

Toro 101480

BEARING-BALL

$49.99

$

In Stock, only 3 left!

0

23

Toro 93-1618-01

SUPPORT

$44.99

$

In Stock, only 2 left!

0

24

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 6

0

25

Toro 94-2998

PULLEY

$

$

Not available

26

Toro 937225

KEY-HI-PRO

$4.99

$

Usually ships in 3-6 days

0
