8024 STE (961910017-06) - Husqvarna 24" Snow Blower (2008-08) HANDLE Parts Diagram

24" Snow Blower

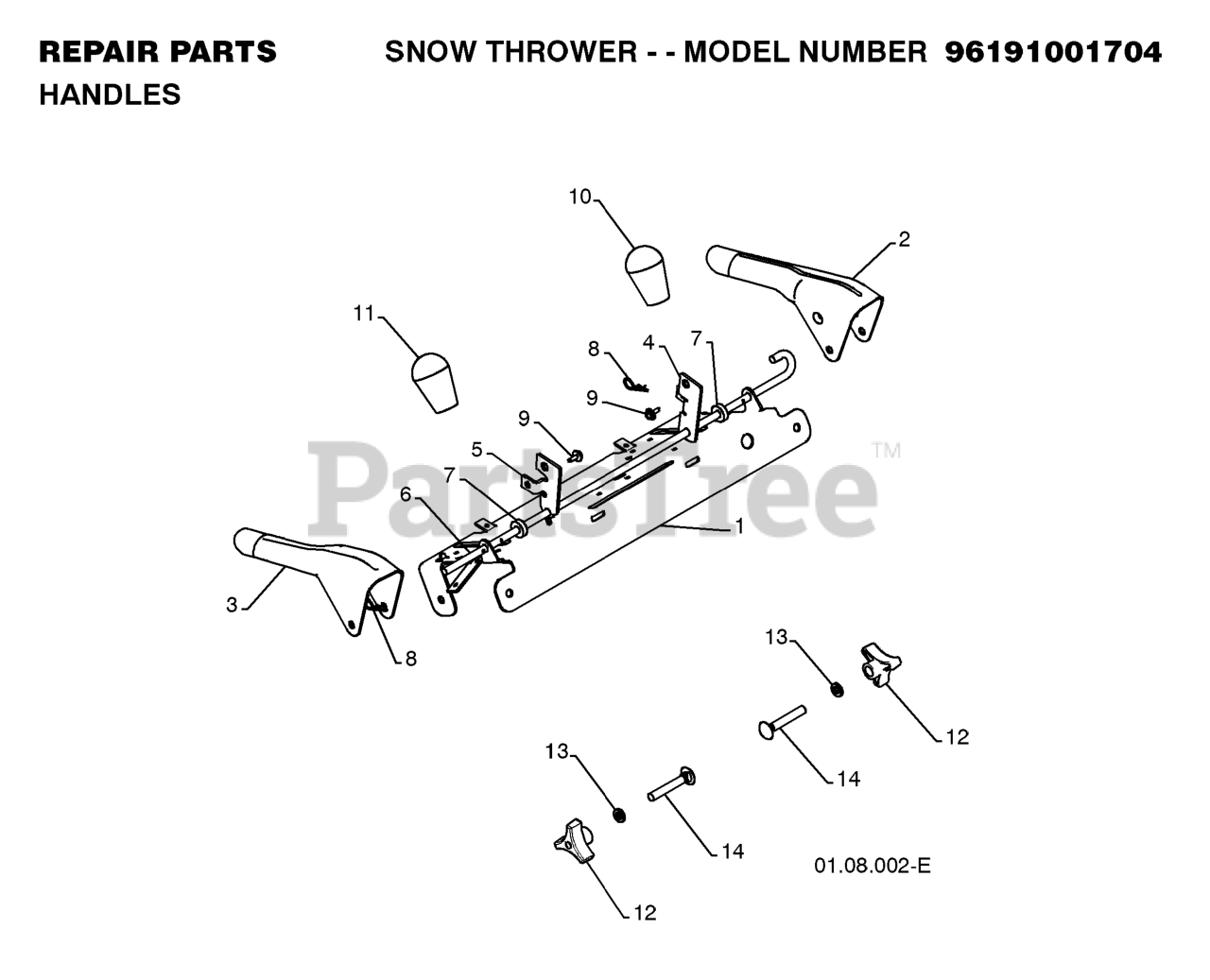

HANDLE Parts Diagram

  • Title
7

Husqvarna 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, Qty 7

0

1

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

2

Husqvarna 532405740

ROD.ASM.TRACTION

$

$

Not available

9

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532415433

BRACKET.SHIFTER.PLATE.BZP

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

5

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 532416921

PLATE.REAR.SNOW.PNT.ORANGE

$

$

Not available

11

Husqvarna 532403300

ROD.CLUTCH.YELLOW.ZINC(VT)

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532415435

PLATE.CLUTCH.BZP

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, Qty 5

0

3

Husqvarna 532180445

ROD, UPPER SPEED CONTROL

$39.99

$

In Stock, Qty 5

0

14

Husqvarna 532416864

BRACKET.CLUTCH.PLATE.BZP

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532187716

ROD, LOWER SPEED CONTROL.SNOW

$

$

Not available

16

Husqvarna 532415450

PLATE.SHIFTER.BZP

$7.99

$

In Stock, only 3 left!

0

18

Husqvarna 532402881

BOLT.SHOULDER.3/X.25

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 872270506

BOLT
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0
