8071 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) DRIVE GROUP MODEL: 8071 Parts Diagram

Walk-Behind Mower

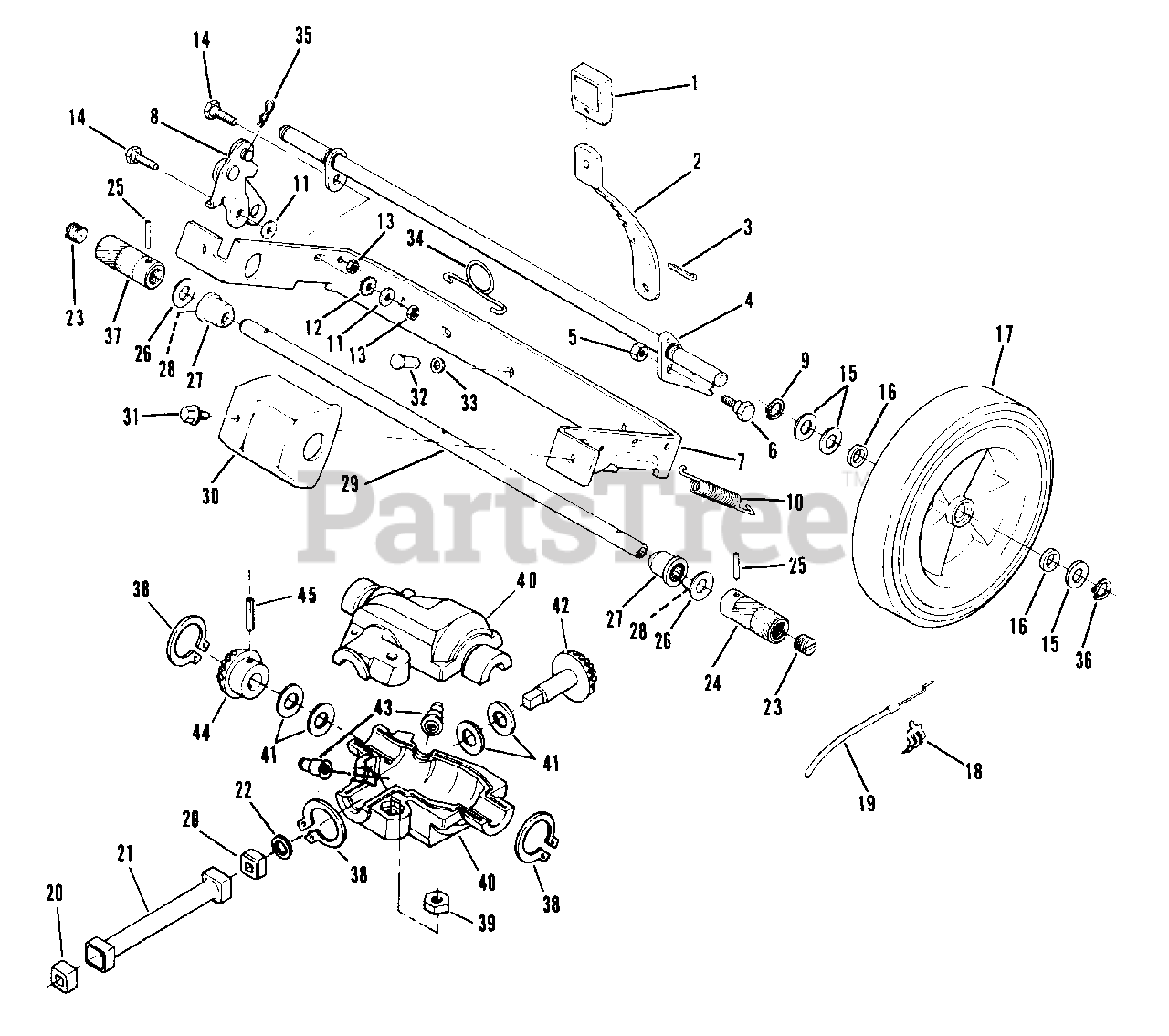

DRIVE GROUP MODEL: 8071 Parts Diagram

  • Title

1

Lawn-Boy 610484

Knob-Rear Ht. Adj Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Currently unavailable

2

Lawn-Boy 607673

Lever-Rear Height Adjust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

3

Lawn-Boy 603036

Cotter Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

Lawn-Boy 681290

Axle Bracket Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

4

Lawn-Boy 681534

Axle Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

5

Lawn-Boy 602315

Locknut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 607665

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$8.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610500

Bracket-21" Axle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$375.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 679630

Clutch Assembly
(Superseded to 683775)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$102.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$5.49

$

In Stock, Qty 8

0

10

Lawn-Boy 603003

Spring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

11

Lawn-Boy 603093

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

12

Lawn-Boy 603123

Lockwasher

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

13

Lawn-Boy 602201

Stop Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

14

Lawn-Boy 602984

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

15

Lawn-Boy 605256

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 682222

Wheel-Rear
(Superseded to 682972)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$26.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608936

Clip
(Superseded to 682603)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

19

Lawn-Boy 681667

Cable-Starter Interlock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

20

Lawn-Boy 608563

Bushing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$8.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 610625

Tube-Drive
(Superseded to 683129)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

22

Lawn-Boy 610644

"O" Ring-Spacer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 602926

Plug

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$12.99

$

In Stock, Qty 7

0

24

Lawn-Boy 610844

Drive Roller-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Standard replacement-ground speed 2.7 mph

$

$

Not available

24

Lawn-Boy 607657

Drive Roller-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides slower ground speed-2.4 mph

$

$

Not available

24

Lawn-Boy 610440

Drive Roller-L.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides faster ground speed-3.1 mph

$38.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 606013

Pin-Spiral

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Standard replacement-ground speed 2.7 mph

$2.99

$

In Stock, Qty 6

0

25

Lawn-Boy 606013

Pin-Spiral

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides slower ground speed-2.4 mph

$2.99

$

In Stock, Qty 6

0

25

Lawn-Boy 610686

Pin-Groove

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides faster ground speed-3.1 mph

$

$

Not available

26

Lawn-Boy 603037

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

27

Lawn-Boy 678872

Sleeve & Bearing Assembly
(Superseded to 681904)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

28

Lawn-Boy 679144

Needle Bearing

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

29

Lawn-Boy 679952

Shaft

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

30

Lawn-Boy 607767

Guard-Roller

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$11.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 607783

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

32

Lawn-Boy 606115

Pin-Rear Height Adjust Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$6.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 606116

Spring Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

34

Lawn-Boy 605802

Spring-Height Adjust

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$6.99

$

In Stock, Qty 7

0

35

Lawn-Boy 603019

Lock Pin
(Superseded to 1-806003)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$1.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$5.49

$

In Stock, Qty 8

0

37

Lawn-Boy 610845

Drive Roller-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Standard replacement-ground speed 2.7 mph

$

$

Not available

37

Lawn-Boy 607658

Drive Roller-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides slower ground speed-2.4 mph

$

$

Not available

37

Lawn-Boy 610441

Drive Roller-R.H.

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire. Provides faster ground speed-3.1 mph

$

$

Not available

38

Lawn-Boy 908973

Ring-Retaining
(Superseded to 32151-33)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$3.49

$

Usually ships in 3-6 days

0

39

Lawn-Boy 602315

Locknut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$4.49

$

In Stock, only 2 left!

0

40

Lawn-Boy 682415

Gear Box-Assembly
(Superseded to 682662)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

41

Lawn-Boy 608030

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$2.49

$

Usually ships in 3-6 days

0

42

Lawn-Boy 610687

Gear-Drive

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$267.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 610153

Zerk Fitting

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$

$

Not available

44

Lawn-Boy 610688

Gear-Driven

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$48.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 311866

Spring Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors. Note #1: Space washers oneither side of rear wheels so that center of tread of rollers line up with center of tire.

$3.49

$

In Stock, only 1 left!

0
